Campervan Electric kit VKIT01 Victron Non Isolated System

£380.00 GBP

Price Includes VAT.

SKU: VKIT01-PDP25

Popular system for campervan electrics. Supplied with everything you will need to connect your vehicle battery to a leisure battery for charging while you are driving + 12 way fuse box for 12v circuits

In stock

Please select from the battery distribution cable size options Below.

Battery Distribution Cable Size Option:

Battery Distribution Cable Size Option
Please Select Optional Battery Monitor if Required:

Please Select Optional Battery Monitor if Required
Quantity:

Our Victron non isolated charging system is a popular starter or basic package for adding electrics into a campervan, motorhome, race van or boat, to maintain and charge a leisure battery and to distribute 12v power.

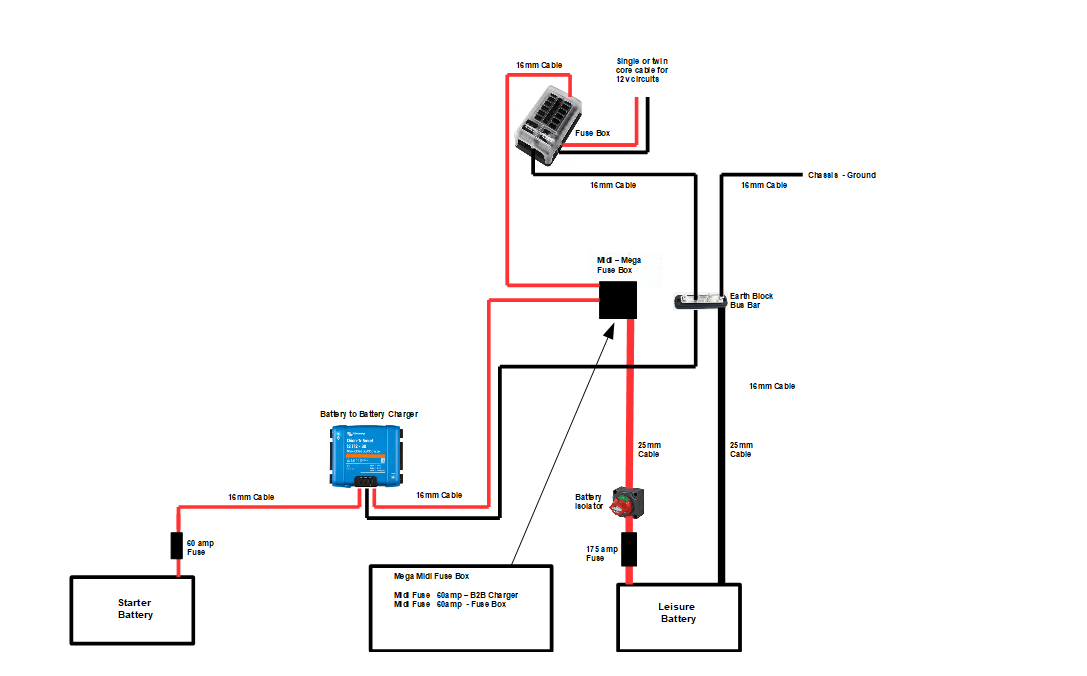

This kit is supplied with everything you will need to connect your vehicle battery to a leisure battery for charging while you are driving, 12 way fuse box for all of 12v circuits,  battery distribution kit from the leisure battery with three spare circuits on the mega midi fuse box for the option to add solar,  240v mains battery charger + an inverter.

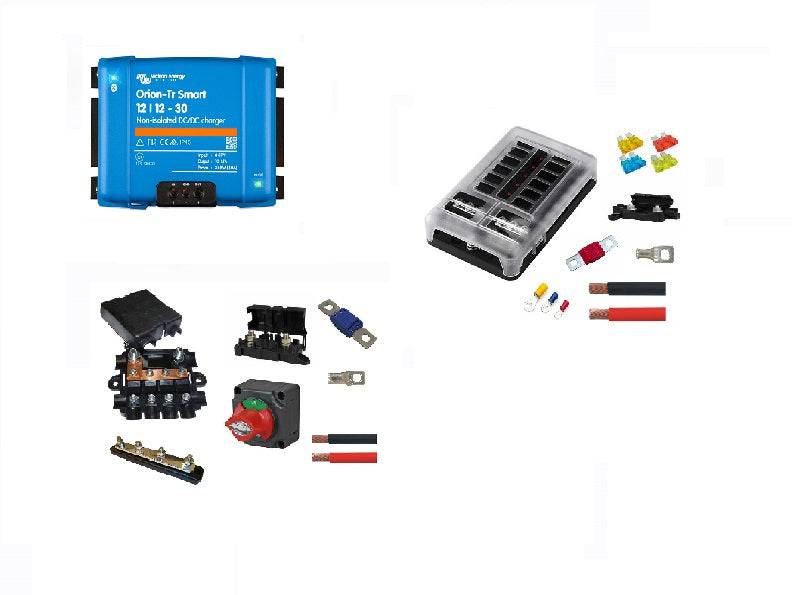

  • Victron Orion TR Smart 30amp Non Isolated Battery to Battery Charger

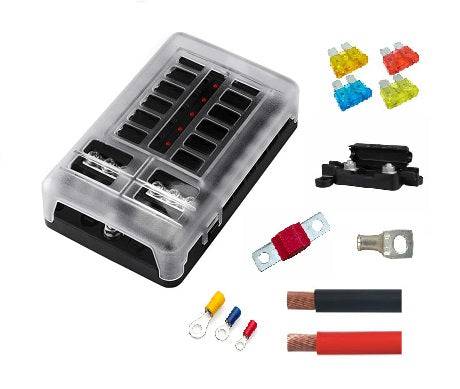

  • 12 Way Fuse Box
  • Battery Distribution Kit
  • 30m 2mm² 25amp Twin Core Cable
  • Fitting Kit Cables - Terminals - Fuses
  • Instructions + Aftersales support

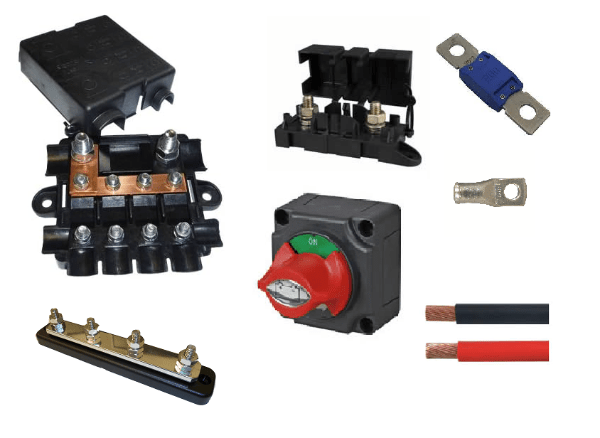

The battery distribution kit which includes a mega midi fuse box + bus bar simply connects all of your devises to the leisure battery.  It has a spare mega fuse output that can be used for an inverter to be added if required. Simply select the optional higher rated distribution kit if required to suit the inverter size you will be fitting from the drop down menu above.

We recommend

25mm² kit for an inverter up to 1000w
35mm² kit for an inverter up to 1500w
50mm² kit for an inverter up to 2000w

Please select an optional battery monitor if required

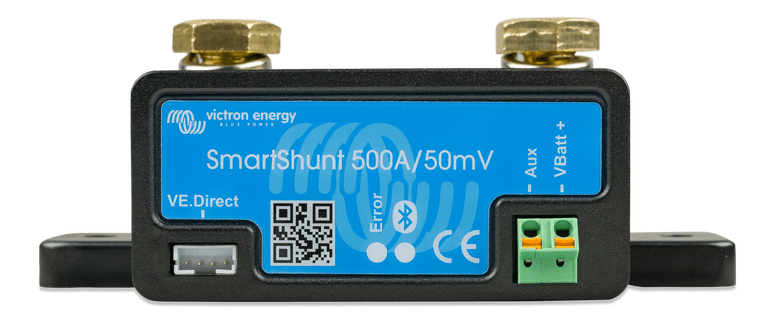

Smartshunt - monitoring you battery via the Victron Connect App on you smart phone

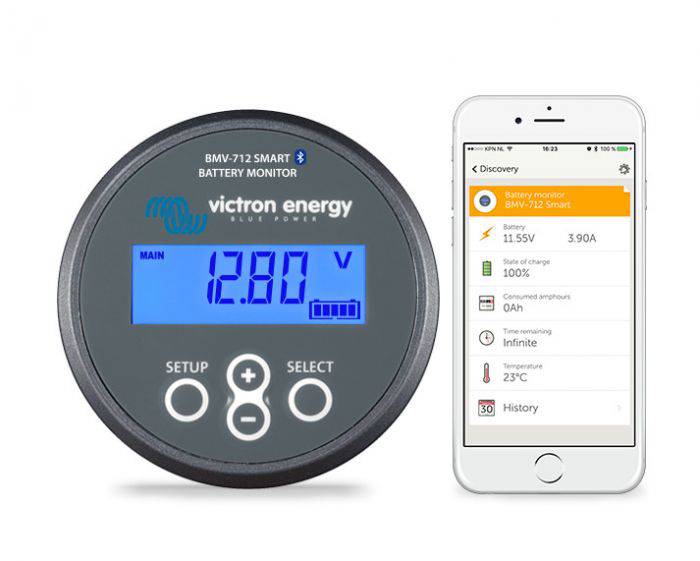

BMV712 - Monitoring your battery via a screen plus via the Victron connect App on your smartphone

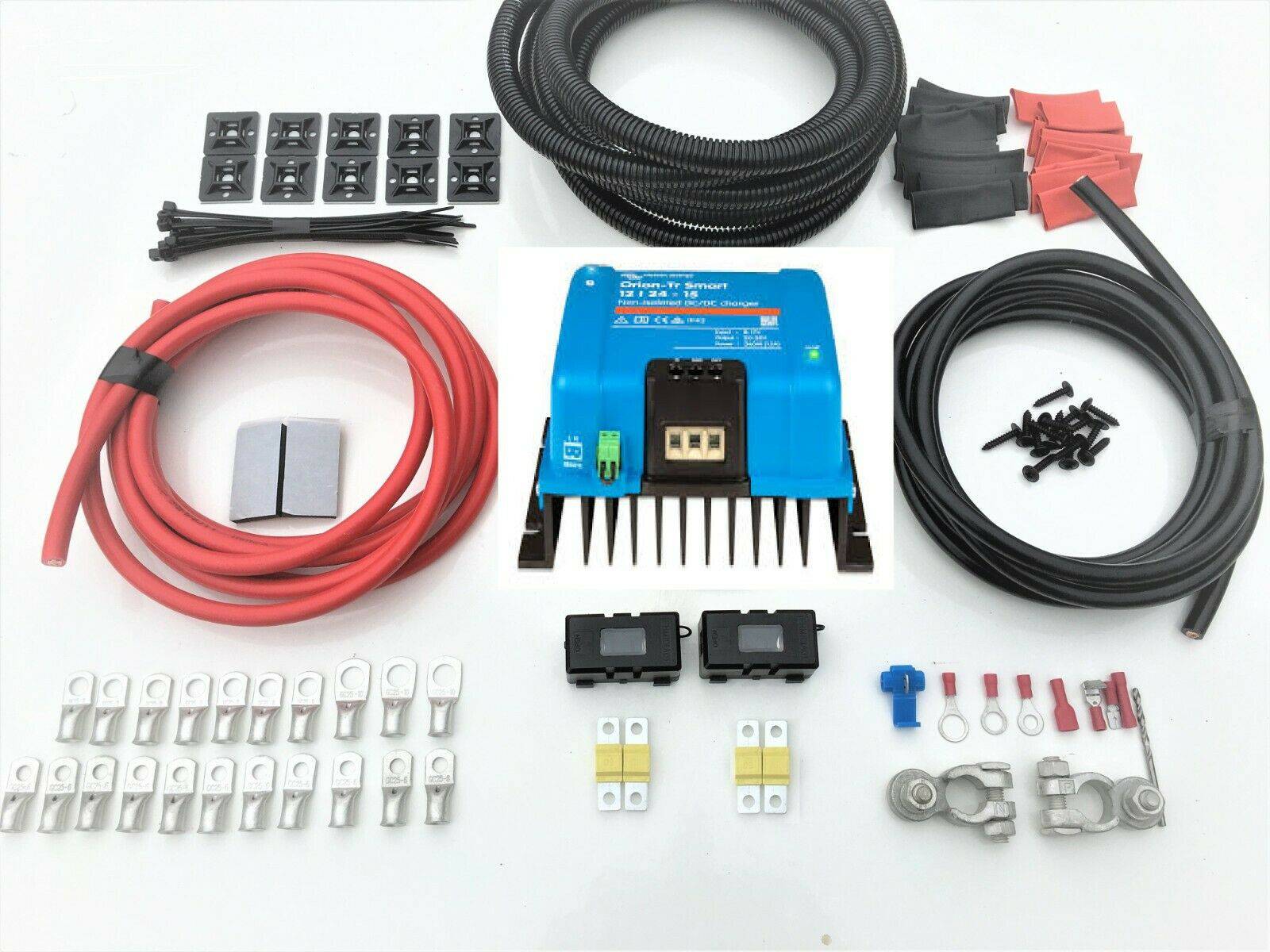

Full Kit List

  • 1 x Victron 12v 30amp Orion TR Smart NON Isolated  battery to battery charger
  • 1 x 12 Way Fuse Box
  • 1 x Mega Midi Fuse Holder
  • 1 x 150 to 250 amp Busbar (Depending on option selected)
  • 1 x Battery Isolator
  • 1 x 30m roll 2mm Twin Core Cable
  • 8m 16mm Red Battery Cable
  • 8m 16mm Black Battery Cable
  • 1m 25-50mm Red Battery Cable (Depending on option selected)
  • 1m 25-50mm Black Battery Cable (Depending on option selected)
  • 1 x Midi Fuse Holder
  • 2 x 150-250 Mega Fuse (Depending on option selected)
  • 3 x 60amp Midi Fuse
  • 1 x 30amp Midi Fuse
  • 1 x Terminal Pack
  • 1 x Pair 8mm Post Type Battery Terminals
  • 8m Conduit for 16mm Cable
  • 1m Conduit for 25-50mm Cable (Depending on option selected)



Victron energy products are the most popular top quality products we supply to help charge and maintain a leisure battery system in any vehicle
