Campervan Electric kit VKIT04 Victron Non Isolated B2B, 240v Charger, 185w Solar, Fuse Box, Hook Up

This is one of our most popular complete charging system for your campervan electrics

Supplied with everything you will need to connect your vehicle battery to a leisure battery for charging a leisure battery at 30amps while you are driving  + Solar charging from a 185w solar panel linked to a smart solar mppt when parked up + 240v hook up plus 20amp battery charger + 12 way fuse box for 12v circuits

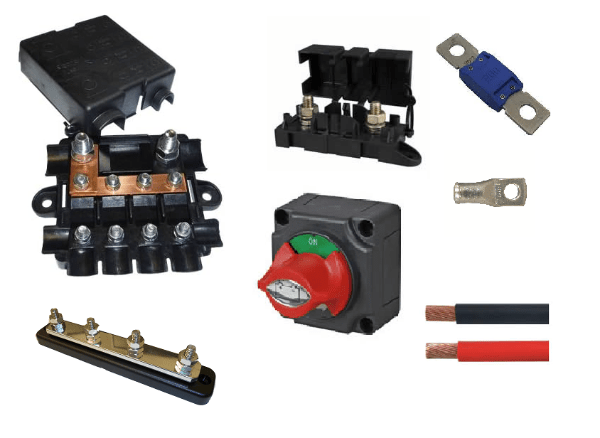

The system is also supplied with a leisure battery distribution kit which includes a mega midi fuse box + bus bar to simply connect all of your devises. It also has a spare mega fuse output for a inverter to be added if required. You can simply select the optional higher rated distribution kit to suit the inverter size from the drop down menu above if required

• 25mm² kit for an inverter up to 1000w
• 35mm² kit for an inverter up to 1500w
• 50mm² kit for an inverter up to 2000w

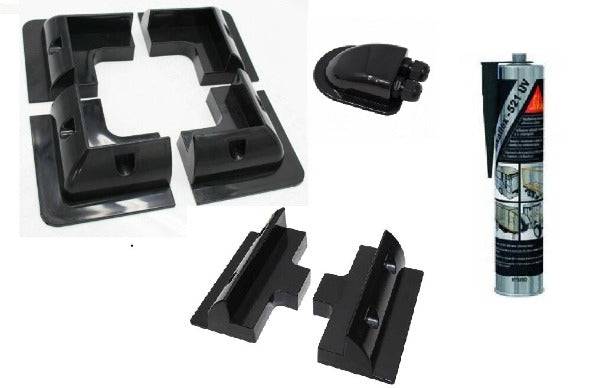

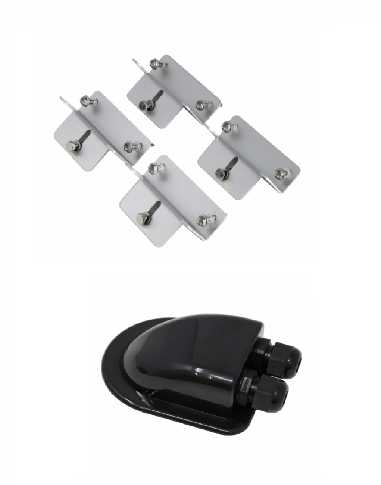

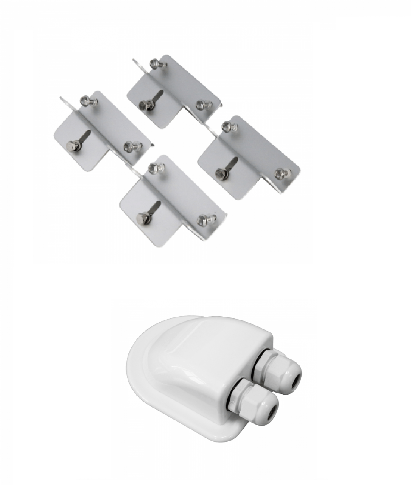

You can also select options for the solar panel mounting kit and 240v mains site connector from the drop down menus above

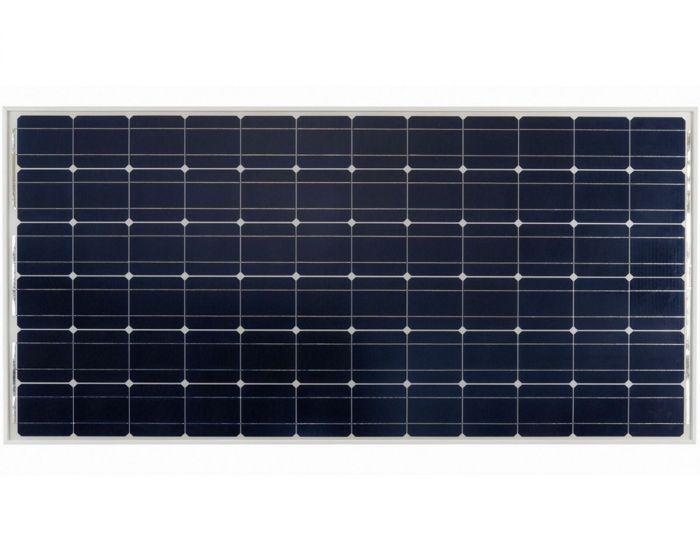

• Victron 185w Mono Solar Panel
• Victron 75/15 Smart Solar Regulator
• Victron 20amp IP22 Battery Charger

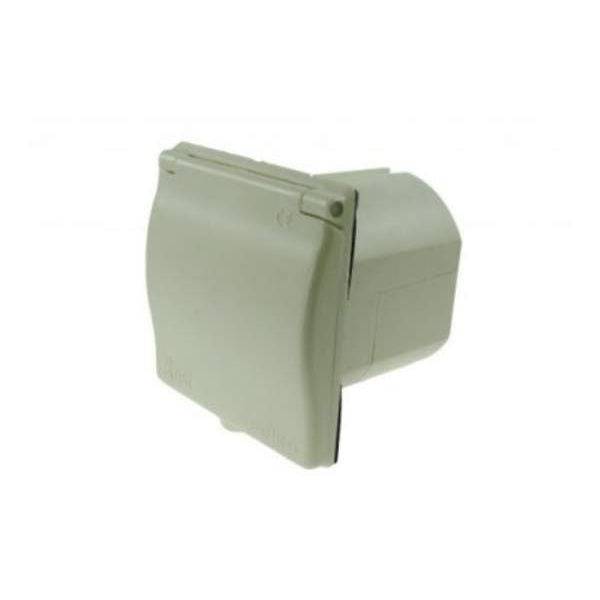

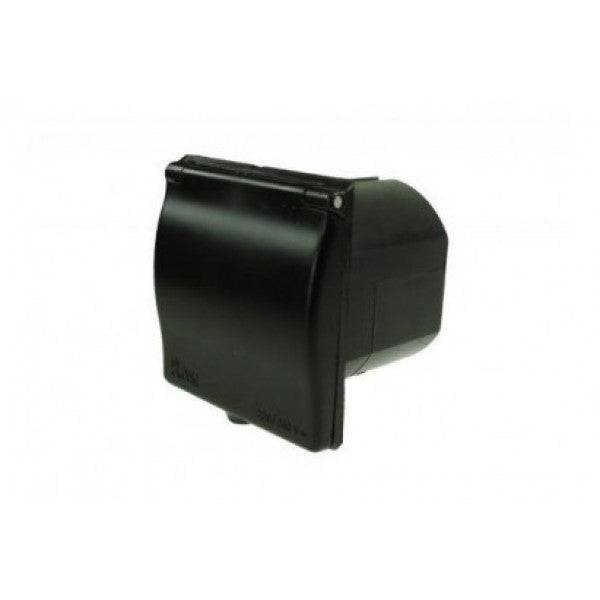

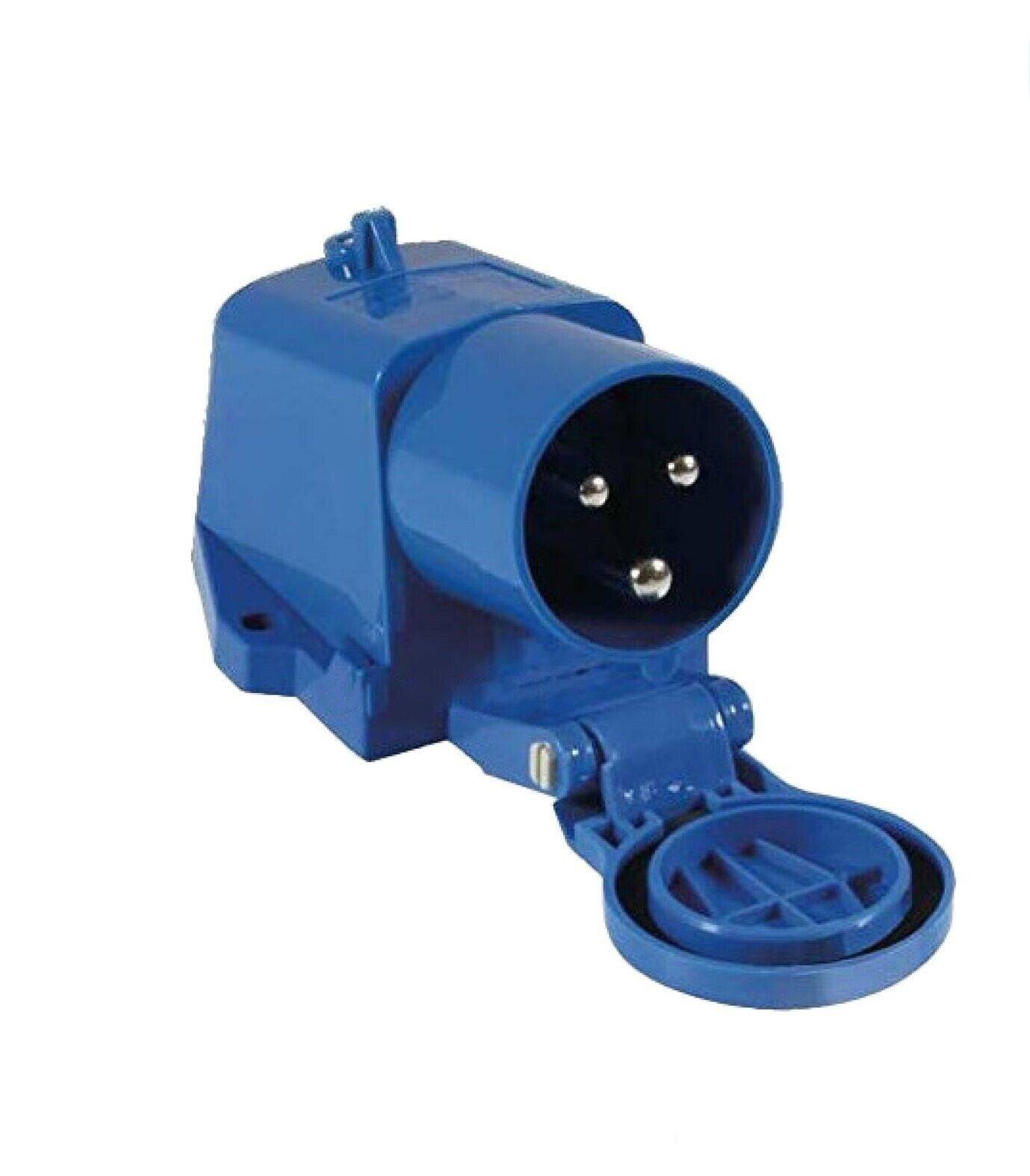

• 240v Mains Hook Up Kit

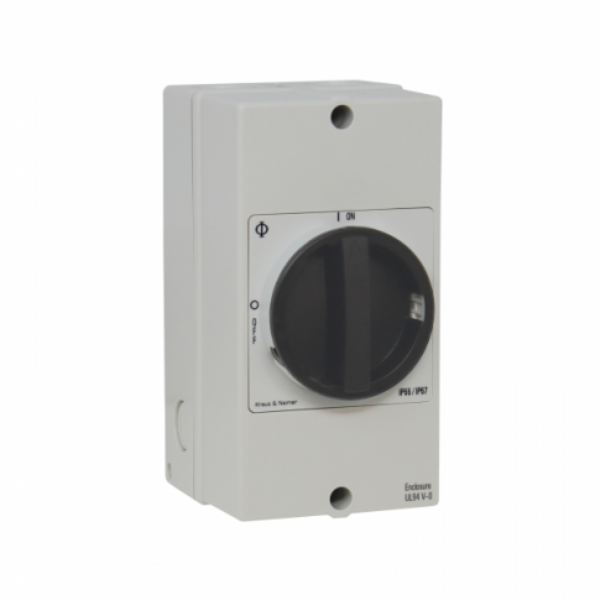

• Solar Isolation Switch
• Victron Orion TR Smart 30amp Non Isolated Battery to Battery Charger
• 12 Way Fuse Box
• Battery Distribution Kit - Please select available options from the drop down menu
• Cables - Terminals - Fuses

Supplied with the following items

• 1 x Victron 12v 30amp Orion TR Smart NON Isolated  battery to battery charger
• 1 x Victron IP22 20amp Battery Charger
• 1 x Victron 75/15 Smart Solar Regulator
• 1 x Victron 185w Mono Solar Panel
• 1 x 12 Way Fuse Box
• 1 x Battery Isolator
• 1 x Solar Isolation Switch
• 1 x 30m roll 2mm Twin Core Cable
• 1 x Mains Hook Up Kit
• 8m 16mm Red Battery Cable
• 8m 16mm Black Battery Cable
• 2m 6mm Red Cable
• 2m 6mm Black Cable
• 1m 25-50mm Red Battery Cable
• 1m 25-50mm Black Battery Cable
• 5m 4mm Solar Cable
• 1 x Mega Midi Fuse Holder
• 1 x 150-250amp Busbar
• 1 x Midi Fuse Holder
• 2 x 150-250a Mega Fuse
• 3 x 60amp Midi Fuse
• 2 x 30amp Midi Fuse
• 1 x Terminal Pack
• 1 x Pair 8mm Post Type Battery Terminals
• 10m Conduit for 6mm - 16mm Cable
• 1m Conduit for 25-50mm Cable

Victron energy products are the most popular top quality products we supply to help charge and maintain a leisure battery system in any vehicle

Orion Tr Smart 12v 30 amp Battery to Battery Charger

Input voltage range - 10-17V
Under voltage shut down - 7V
Under voltage restart - 7,5V
Nominal output voltage - 12,2V
Output voltage adjust range - 10-15V
Output voltage tolerance - +/-0,2V
Output noise - 2mVrms
Cont.output current at nominal output voltage and 40°C - 30A
Maximum output current (10 s) at nominal output voltage minus 20% - 40A
Short circuit output current - 60A
Cont.output power at 25°C - 430W
Cont.output power at 40°C - 360W
Efficiency - 87%
Off load current - <80mA
Galvanicisolation - 200Vdc between input, output and case
Operating temperature range - -20to +55°C (derate 3% per °C above 40°C)
Humidity - Max.95% non-condensing
DC connection - Screw terminals
Maximum cable cross-section - 16mm² (AWG6)
Height - 130mm
Width - 186mm
Depth - 80mm
Weight - 1.8Kg
Warranty - 5 Years
Part Number ORI121236140

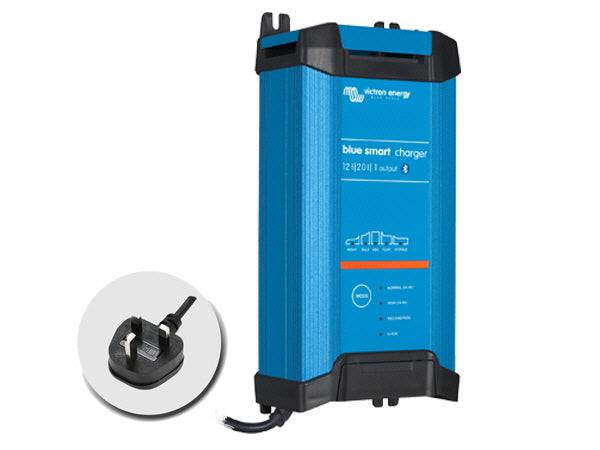

IP22 240 20 amp Battery Charger

Dimensions (mm) 235 x 108 x 65
IP Rating IP22
Output 1 Output
SKU BPC122042022
Voltage 12V
Weight (kgs)
1.3
Warranty - 5 Years
Supplied with standard UK 3 pin plug + approx 1.5mtrs flex

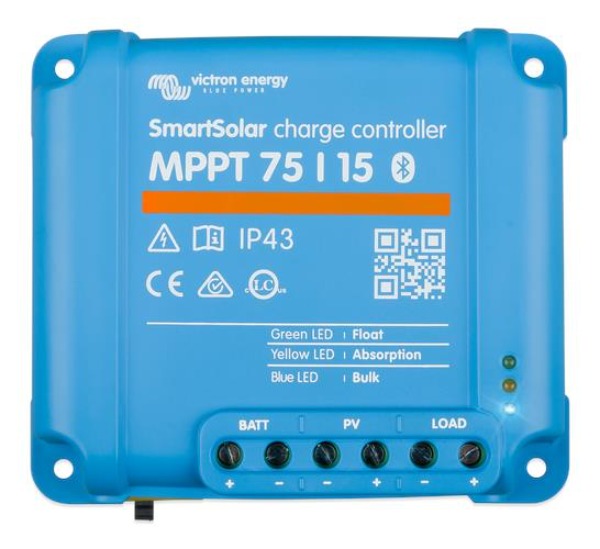

75/15 Smart Solar Controller

Manufacturer Part Number - SCC075015060R
Battery Voltage - 12/24 Auto Select
Rated Charge Current - 15A
Nominal PV Power, 12V - 220W
Nominal PV Power, 24V - 440W
Max. PV Short Circuit Current - 15A
Maximum PV Open Circuit Voltage - 75V
Efficiency - 98%
Charge Algorithm - Multi-stage adaptive
Data Communication Port - VE.Direct
IP Rating - IP43 (electronic components), IP22 (connection area)
Dimensions - H100 x W113 x D40mm
Weight (kg) - 0.5
Warranty - 5 Years
