Campervan Electric Kit VKIT62 Victron Orion XS 50a B2B, 240v Charger, Fuse Box, Hook Up

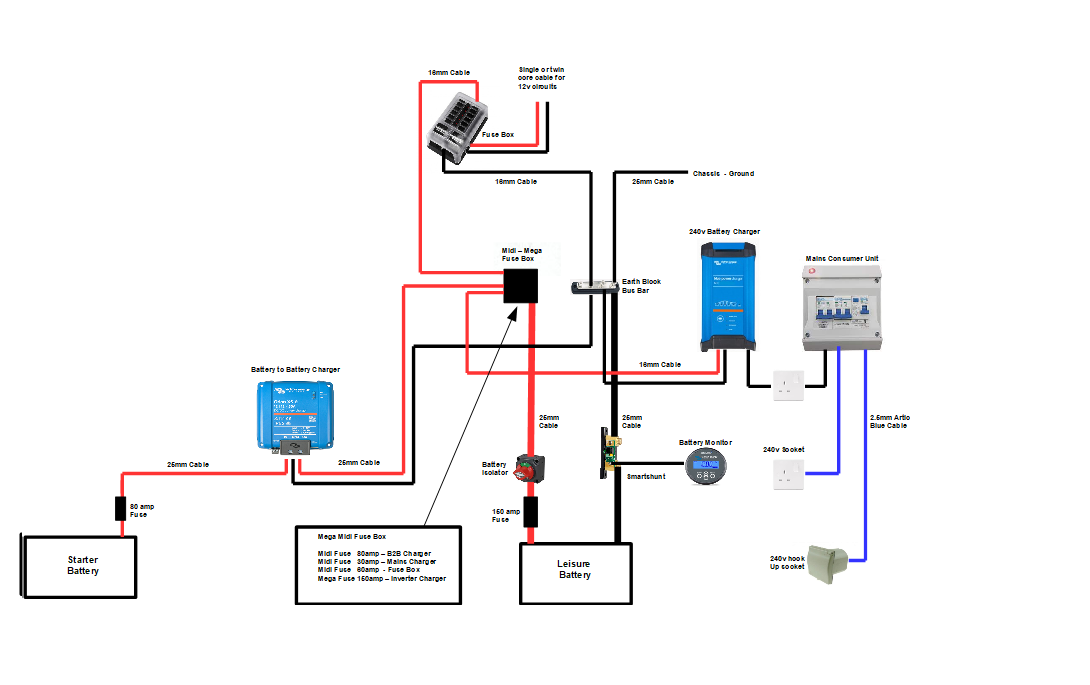

Popular system for campervan electrics supplied with a 50amp battery to battery charger, 20amp mains battery charger, 240v mains hook up plus a 12 way fuse box into a new build with the added options to add solar or a small inverter at a later date if required using the simple power distribution kit supplied with this system.

Battery Distribution Kit Option

The system is  supplied with a leisure battery distribution kit which includes a mega midi fuse box + bus bar to simply connect all of your devises. It also has a spare mega fuse output for a inverter to be added if required. You can simply select an optional higher rated distribution kit to suit the inverter size from the drop down menu above if required

25mm² kit for an inverter up to 1000w
35mm² kit for an inverter up to 1500w
50mm² kit for an inverter up to 2000w

Please select an optional battery monitor if required

Smartshunt - monitoring you battery via the Victron Connect App on you smart phone
BMV712 - Monitoring your battery via a screen plus via the Victron connect App on your smartphone

Parts List

• Supplied with the following items
• 1 x Victron Orion XS 50amp Battery to Battery Charger
• 1 x Victron IP22 20amp Mains Battery Charger
• 1 x Mains Hook Up Kit
• 1 x 12 Way Fuse Box
• 1 x Battery Isolator
• 1 x 30m roll 2mm Twin Core Cable
• 10m 25mm Red Battery Cable
• 4m 25mm Black Battery Cable
• 2m 16m Red Battery Cable
• 2m 16mm Black Battery Cable
• 1 x Mega Midi Fuse Holder
• 1 x 150-250amp Busbar
• 1 x Midi Fuse Holder
• 2 x 150-250 Mega Fuse
• 3 x 60amp Midi Fuse
• 1 x 30amp Midi Fuse
• 1 x Terminal Pack
• 1 x Pair 8mm Post Type Battery Terminals
• 8m Conduit for 25mm Cable
• 2m Conduit for 25-50mm Cable

Victron energy products are the most popular top quality products we supply to help charge and maintain a leisure battery system in any vehicle

IP22 240 20 amp Battery Charger

Dimensions (mm) 235 x 108 x 65
IP Rating IP22
Output 1 Output
SKU BPC122042022
Voltage 12V
Weight (kgs)
1.3
Warranty - 5 Years
Supplied with standard UK 3 pin plug + approx 1.5mtrs flex
