Ctek D250SE 20amp DCDC Charger + PV Logic 100 Watt Black Flexi Solar Panel

£520.00 GBP

Price Includes VAT.

SKU: PVL100/D250SE
In stock
Please select kit length:

Please select kit length
Quantity:

Product Details

CTEK D250SE 12v 20amp battery to battery charger + PV Logic 100 Watt Black Flexi Solar Panel with reverse Cable Entry

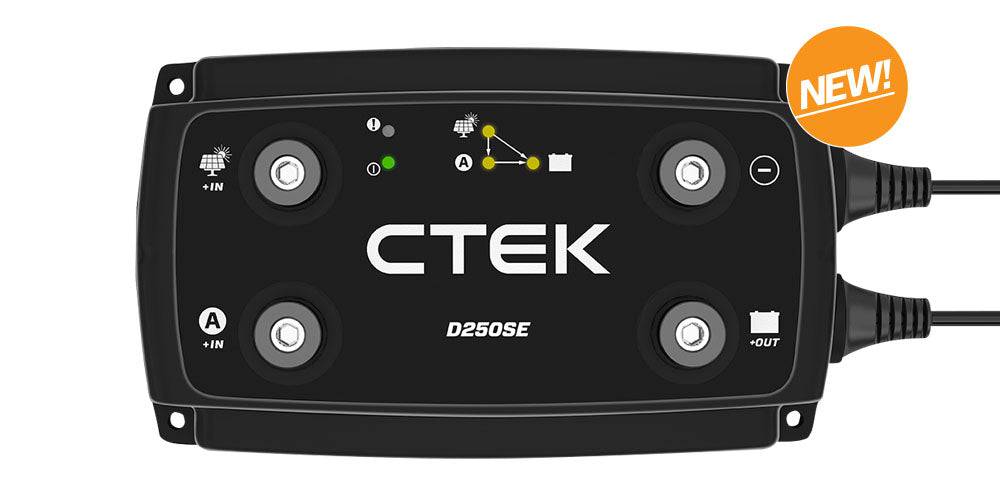

With award winning Swedish technology, the dual input D250SE which has now replaced the D250SA with added connection to lithium batteries can draw its power from smart alternators and other DC sources, making it the ideal charger for vehicles that have access to a mains power supply. Its dual input capability means it can draw power from solar and wind sources, in parallel to the alternator.

The D250SE is a fully automatic, 5 step charger that supplies up to 20A of power to charge, condition and maintain any 12V lead acid service battery from 40-300Ah, including Wet, MF, Gel, AGM. EFB and Ca/Ca & lifepo4 Lithium.

The D250SE uses patented technology so its safe for you and your vehicles electronics. Its also IP65 classified (splash and dust proof, and suitable for outdoor use) and comes with a 2-year warranty.


PV Logic Flexi solar panels are the ultimate choice for flat or slightly curved surfaces.

Benefit from the semi-flexible panel's self-healing top surface

The ETFE top layer gives the PV Logic flexi extra resilience in really tough conditions. ETFE has a memory effect or self-healing capacity in the event the panel comes into contact with branches etc, thus ensuring any slight abrasions are ‘healed’ within a few hours. The flexi range can even be walked on with soft deck shoes! During production the ETFE is dimpled to further protect the panel and provide an anti-slip surface, particularly useful if the panel is fitted to a boat deck.

Completely waterproof

Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicon, guaranteeing no water ingress.

Cells protected from hot spots

Where used on a camper van or boat, partial shading of a solar panel is typical. In these circumstances, heat build-up and damaging hot spots can occur leading to a significantly reduced life cycle of the panel. The larger 60w and above PV Logic flexi panels have up to two shading diodes housed within the fully waterproof junction box to prevent this occurrence.

Superior design

There are no square edges on a PV Logic flexi solar panel! Rounded panel corners and a unique curved junction box provide superior adhesion, no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted 4m UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box.


The cable of the 110w and 150w flexi panels exits the panel from the underside allowing for a completely flush fit to your roof or decking. A remote shading diode box is ensures consistent performance even in partially shady conditions. The 100w and 150w panels are available with a white back sheet or all black.

Easy fix

The semi-flexible range can be bonded to flat or slight curved surfaces (3cm curve per metre) such as painted aluminium, metal, GRP and fibreglass using Simson ISR 70-03. The aluminium layer is also pre-drilled with 4.5mm holes should the panel need to be mechanically fixed as well as or instead of bonding.




Specifications + Parts List



Size 980x650x4mm

Weight (Kg) 3.75

*Watts per day (W) 600

*Amp hours per day (A) 36.84

Charge controller 10Ah

Vmp (VDC) nominal voltage 17.6 Imp

(A) nominal current 5.78

Voc V 21.9

Isc (A) short circuit current 6.14

100W Rear Exit Flexi Solar Panel

Cable Length 2m 3-core to external diode block + 3m twin core cable




*Watts and Amp hours/day based on six hours of average daily peak sunshine hours. Above specification at standard test conditions (STC) 1000w/m2, Cell Temp 25c IP (Ingress Protection) Rating IP69



Please only use the glue pattern below (this is covered in more detail in the instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.

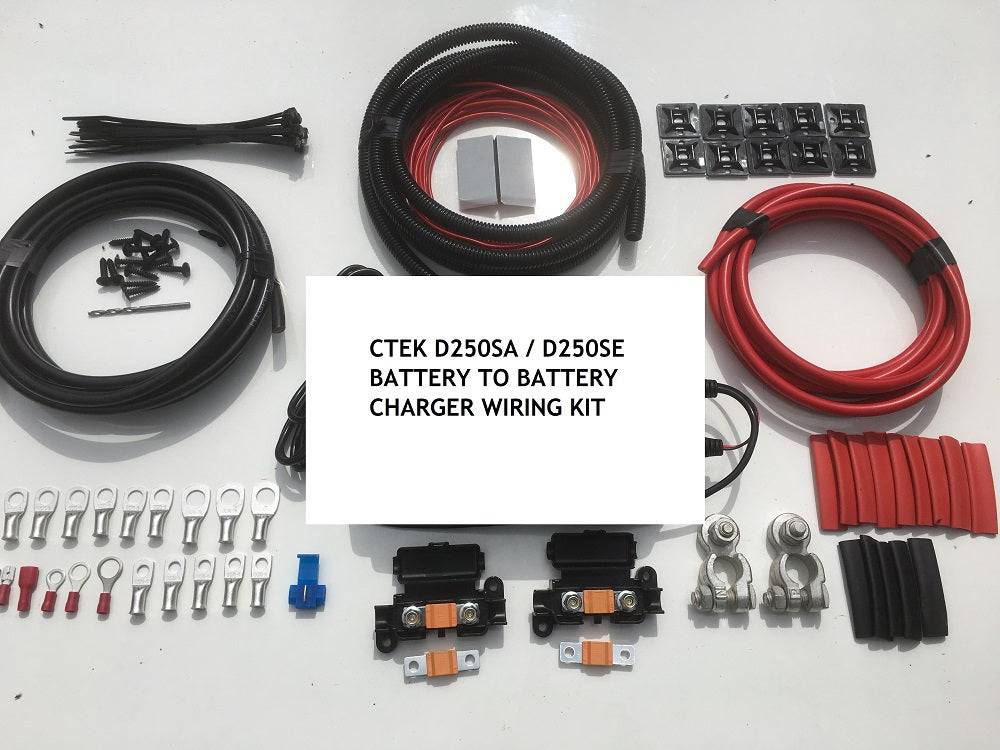

If you require the kit with a full wiring kit for the Ctek charger please sellect from the options above and you will be supplied with the additional items below

You will be supplied with everything you need

1 x CTEK D250SE 20amp Charger

1-10 m 10mm 70amp Red Battery Cable

2m 10mm 70amp Black Battery Cable

5m 1.5mm 15amp Red optional ignition cable

1 x Pair 8mm Post Type Battery Terminals

2 x Midi Fuse Holders + 4 x 30amp Midi Fuses

1 x Pack Terminals + Heat Shrink

10 x Cable tie bases

15 x cable ties 150mm

15 X 8x3/4 screws + 3mm HSS drill bit

2 x adhesive pads

1-8m protective conduit to suit 10mm cable

1 x PV Logic Black 100 watt reverse cable entry solar panel

1 x 5m Solar Cable

1 x Sikaflex Adhesive

Wiring diagram
