Simply Split Charge

Ctek D250SE 20amp DCDC Charger + PV Logic 150 Watt Black Flexi Solar Panel

£672.00 GBP

Price Includes VAT.

SKU: PVL150/D250SE
In stock
Please select kit length:

Please select kit length
Quantity:

Product Details

CTEK D250SE 12v 20amp battery to battery charger + PV Logic 150 Watt Black Flexi Solar Panel with reverse Cable Entry

With award winning Swedish technology, the dual input D250SE which has now replaced the D250SA with added connection to lithium batteries can draw its power from smart alternators andother DC sources, making it the ideal charger for vehicles that have access to a mains power supply. Its dual input capability means it can draw power from solar and wind sources, in parallel to the alternator.

The D250SE is a fully automatic, 5 step charger that supplies up to 20A of power to charge, condition and maintain any 12V lead acid service battery from 40-300Ah, including Wet, MF, Gel, AGM. EFB and Ca/Ca & lifepo4 Lithium.

The D250SE uses patented technology so its safe for you and your vehicles electronics. Its also IP65 classified (splash and dust proof, and suitable for outdoor use) and comes with a 2-year warranty.

The 150w MHD Flexi solar panel combines shingled monocrystalline solar cells to deliver super efficient power generation with a tough ETFE top sheet for longevity and robust impact resistance.

At just 2mm thick, this ultra-lightweight panel is ideal for flat roofs as well as surfaces with a slight curve making it the perfect choice for camper vans and boat decks.

To ensure long term performance in the most extreme environments, the panels are tested to ASTM B117 - ISO9227 for saltwater spray over 1000 hours as well as accelerated Ultraviolet (UV) testing to ISO 4892.

The 150w rear exit solar panel comes with a 1m connection cable, 1 x 4m cable and diode box.

The panel is supplied with a 4-year module warranty.

A charge controller should be used with this panel to protect the battery from being overcharged and to prevent reverse of current drain.

Specifications + Parts

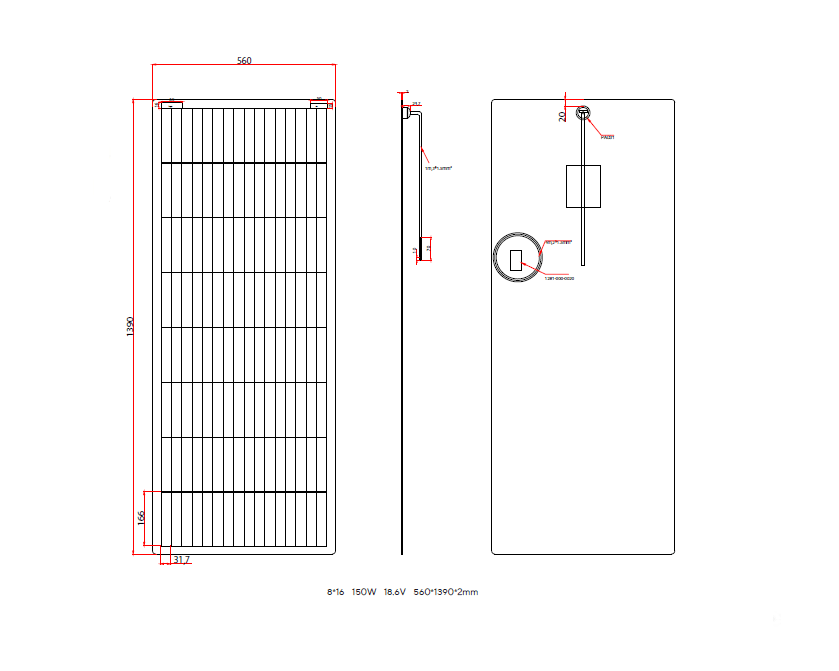

Size 1390x560x2mm

Weight (Kg) 3.7

*Watts per day (W) 900

*Amp hours per day (A) 48.42

Charge controller 10Ah

Vmp (VDC) nominal voltage 18.6V

Imp (A) nominal current 8.07A

Voc (V) 22.0V

Isc (A) short circuit current 8.55A



*Watts and Amp hours/day based on six hours of average daily peak sunshine hours. Above specification at standard test conditions (STC) 1000w/m2, Cell Temp 25c IP (Ingress Protection) Rating IP69


  Please only use the glue pattern below (this is covered in more detail in the instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.

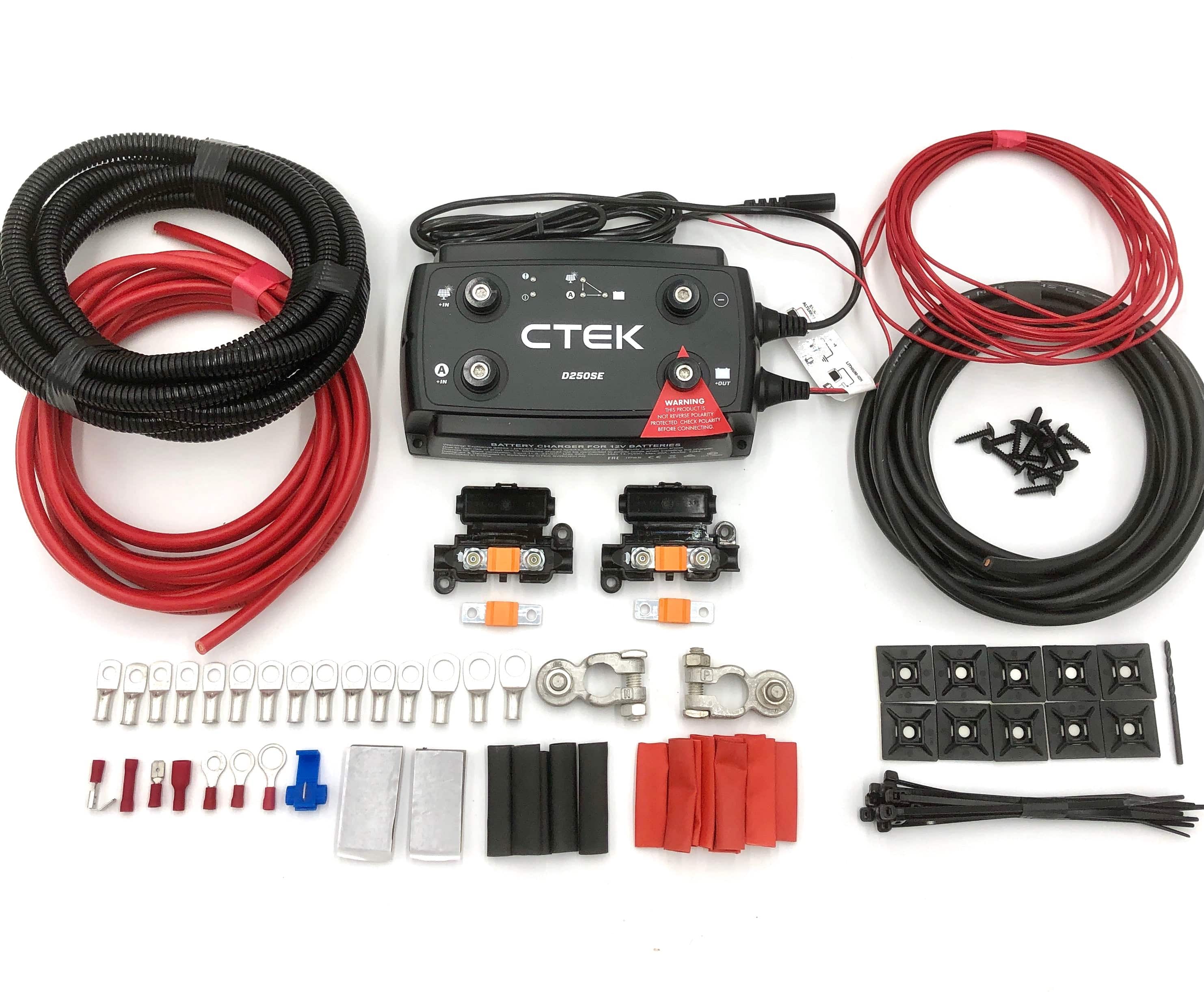

If you require the kit with a full wiring kit for the Ctek charger please sellect from the options above and you will be supplied with the additional items below







You will be supplied with everything you need





1 x CTEK D250SE 20amp Charger

1-10 mtrs 10mm 70amp Red Battery Cable

2mtrs 10mm 70amp Black Battery Cable

5mtrs 1.5mm 15amp Red optional ignition cable

1 x Pair 8mm Post Type Battery Terminals

2 x Midi Fuse Holders + 4 x 30amp Midi Fuses

1 x Pack Terminals + Heat Shrink

10 x Cable tie bases

15 x cable ties 150mm

15 X 8x3/4 screws + 3mm HSS drill bit

2 x adhesive pads

1-8mtrs protective conduit to suit 10mm cable

1 x PV Logic Black 150 watt reverse cable entry solar panel

1 x 5mtr Solar Cable

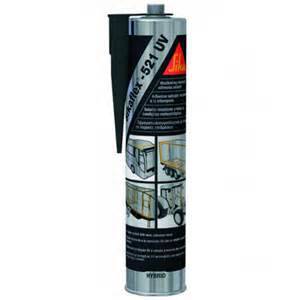

1 x Sikaflex Adhesive

Wiring diagram
