Ctek D250SE / Smartpass120S Battery to Battery Charging System

£610.00 GBP

Price Includes VAT.

SKU: D250SE/SMARTPASS/K1
In stock
Please Select Kit Length:

Please Select Kit Length
Quantity:

Product Details

Popular Ctek D250SE with the Smartpass 120s as a package with everything needed to install this system into any vehicle wanting to charge and maintain a leisure battery(s) bank

Suitable for all Campers, Motorhomes, 4x4s, Race Vans, Mobile Workshops andMarine

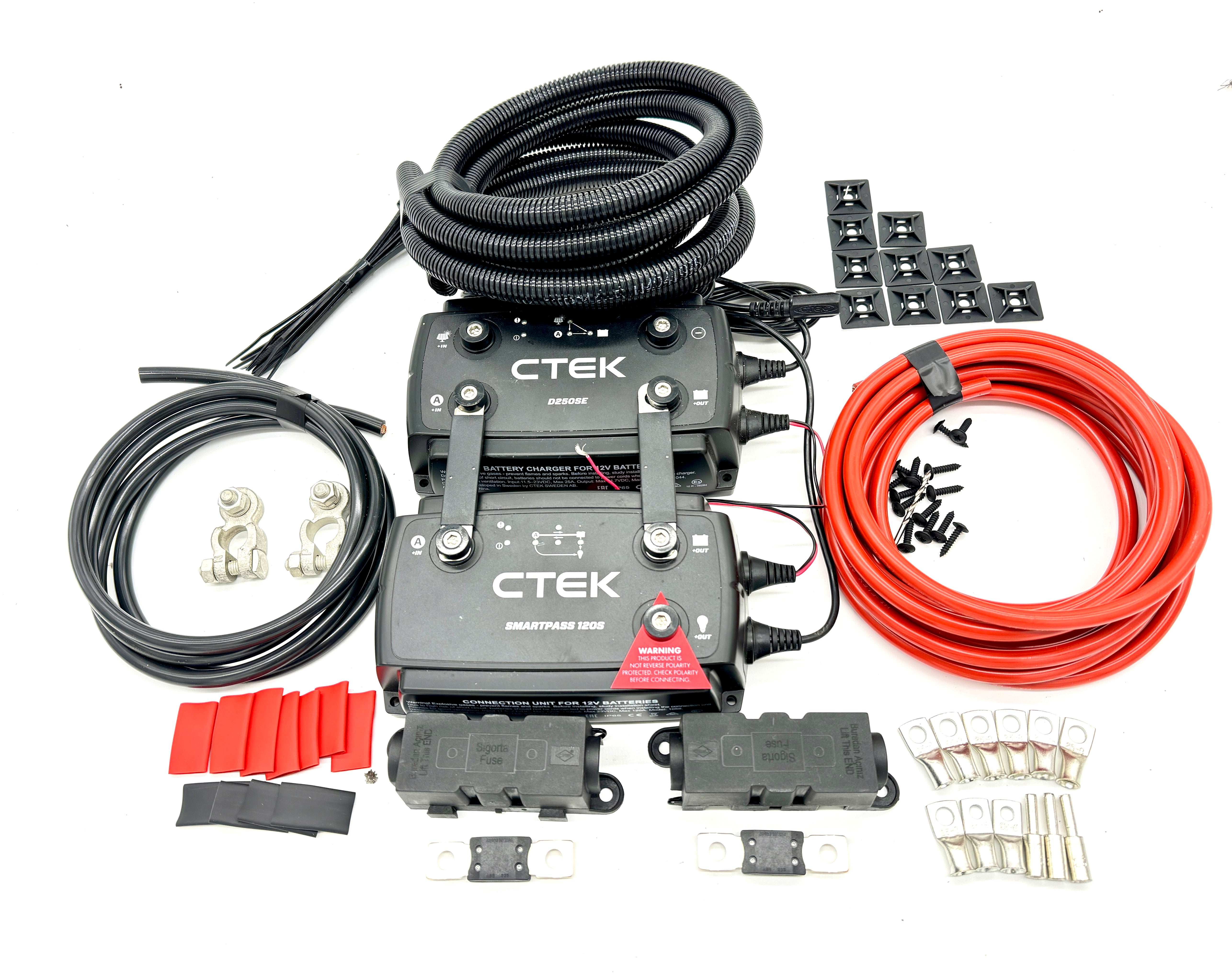

Supplied with everything needed to safely connect this system into any vehicle

  • 1 x Ctek D250SE
  • 1 x Ctek Smartpass 120s
  • 1-8m 40mm² 300amp Red Cable (Power Supply Lead)
  • 1m 40mm² 300amp Black Cable (Leisure Battery Earth)
  • 1m 10mm² 70amp Black Cable ( Ctek Earth )
  • ​5m 1.5mm² 15amp Red Cable ( Optional ignition feed)
  • 1 x Pair Positive + Negative 8mm Post Type Battery Terminals
  • 2 x Mega Fuse Holders
  • 3 x 300amp Mega Fuse
  • 1 x Terminal Pack
  • 1 x Heat Shrink Pack
  • 15 x Cable Ties
  • 10 x Cable Tie Bases
  • 4 x Sticky Pads
  • 1-8m Plastic Conduit
  • 1 x Wiring Diagram


This kit can be supplied pre terminated at no extra charge if required

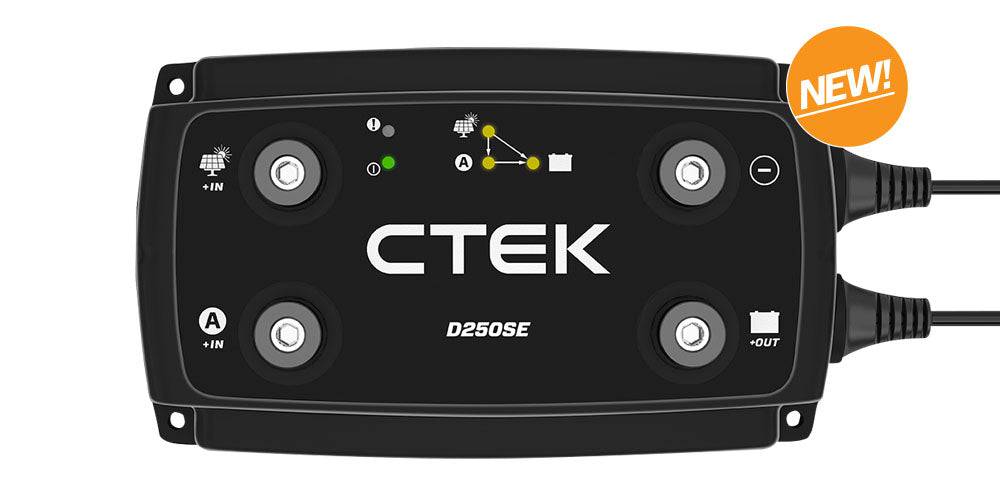

D250SA Product information

With award winning Swedish technology, the dual input D250SE which has now replaced the D250SA  with added connection to lithium batteries can draw its power from smart alternators and other DC sources, making it the ideal charger for vehicles that don’t have access to a mains powersupply.

Its dual input capability means it can draw power from solar and wind sources, in parallel to the alternator.

 The D250SE is a fully automatic, 5 step charger that supplies up to 20A of power to charge, condition and maintain any 12V lead acid service battery from 40-300Ah, including Wet,MF, Gel, AGM. EFB and Ca/Ca & lifepo4 Lithium.

The D250SE uses patented technology so it’s safe for you and your vehicle’s electronics. It’s also IP65 classified (splash and dust proof, and suitable for outdoor use) and comes with a2-year warranty.

FASTERCHARGING

TheD250SE automatically delivers the optimum charge so your batteries are fully charged in the shortest possible time.You canselect normal or 14.7V AGM charge voltages. It also has a temperature sensor to compensate for hot or cold conditions and avoid the risk of your battery overheating or overcharging.

DIRECT CONNECTION FOR SOLAR POWER

The D250SE has an input for connecting solar panels without the need for a regulator. It also features a Maximum Power Point Tracker (MPPT) to get the maximum power out of your solar panels.

 SMART ALTERNATOR COMPATIBILITY

Vehicle manufacturers are now introducing smart ECU (Engine ControlUnit) controlled alternators to increase fuel efficiency and lower emissions. Smart alternators deliver a variable out-put and areshut off when they’re not needed.

The D250SE will still operate even if the smart alternator is shut off and maintain a stable output of up to 20A to fully chargeyour battery in the shortest time.

FEATURES

• 5step charging from smart and conventional alternators and DC sources, such as solar and wind

• Automatic battery separator works without the need for diodes or VSR relays

• Selectable AGM mode for AGM batteries

• Parallel input from both alternator and solar panel

• Solar panel regulator with Maximum Power Point Tracking (MPPT)

• Starter battery maintenance charging when your service battery isfully charged



 Smartpass 120s Product information

120ADC/DC Power Management Solution

Separate, prioritise and boost batteries and equipment

Smartpass 120s charges and supplies the service battery and equipment with 120A, separates critical equipment from non-critical equipment ensuring that radio, emergency lights and navigation systems always have power.

Smartpass 120s is a 120A Power Management Solution which distributes, controls and maximises the available energy from your alternator to power service batteries and consumers. SMARTPASS 120s handles all 12V batteries between 28-800Ah. The Smartpass 120’s Battery Guard function ensures that critical equipment such as radio, emergency lights and navigation systems always have power and take priority when the voltage on the service battery is low disconnecting non-critical consumers. The unit’s Battery Guard will protect your service battery from total discharge and built in over temperature protection reduces charge current before the battery temperature getstoo high. SMARTPASS 120 is compatible with the D250SE & D250SA20A on board charger.

  • Battery separation eliminates diodes and VSR relays

  • Delivers 120A for quick recharge of batteries 28-500Ah

  • Compatible with D250SE for the ultimate 140A power management solution.

  • Prioritising critical consumers and supplies consumers directly from the alternator

  • Start assistance function

  • Fully automatic

  • Maximises battery life

  • Battery Guard to protect your secondary battery from total discharge

  • Dynamic over current protection to handle temporary inputs and outputs of upto 350A for fast charging

  • Battery temperature protection for added safety

  • Splash and dust proof (IP65)

  • 2-year warranty



SolarPanel Information for Ctek D250SE

Maxopen circuit voltage from panel is 23v

Alwayscheck specification from supplier as a higher voltage

willdamage the charger and will invalidate warranty
