DMT1230 Battery to Battery Charger with solar MPPT + 370w Victron Solar panels system

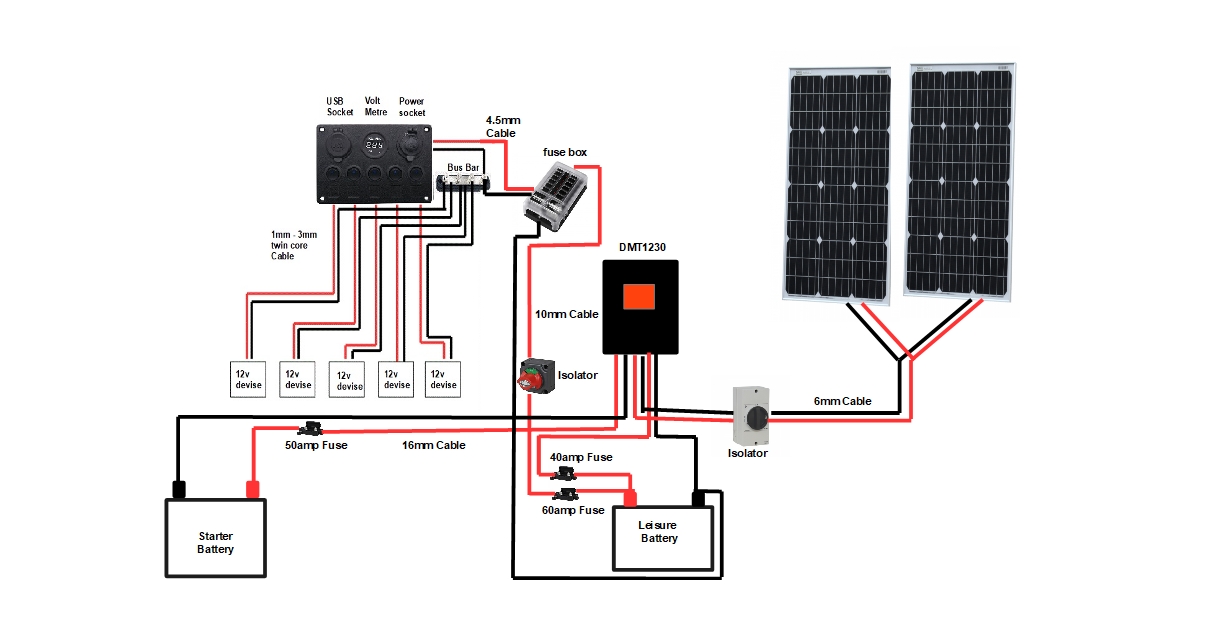

Camper van wiring system that uses the very popular DMT1230 12v 30amp battery to battery charger with bulit in solar mppt

You will be supplied with everything needed to connect this system into your vehicle to charge any leisure battery type including Lead acid, AGM, Gel and Lithium

This system is supplied with the following items

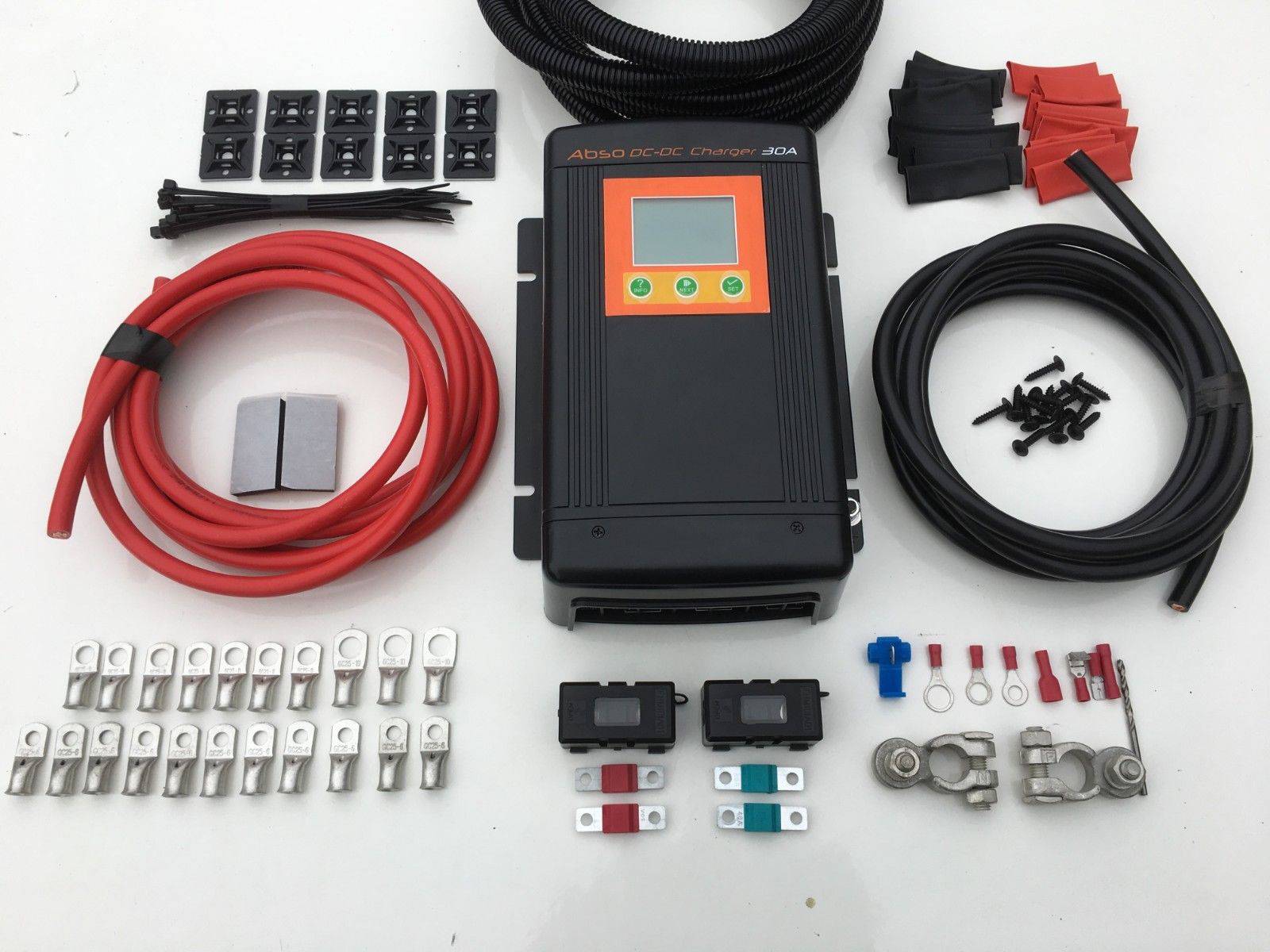

DMT1230 Battery to battery charger + 8m wiring kit

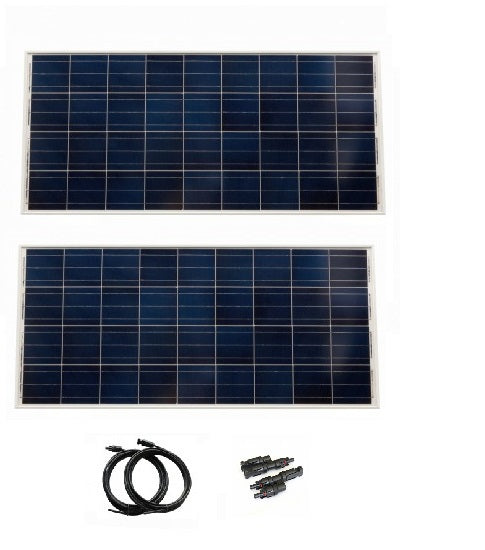

370w ( 2 x 185w) Victron Solar Panels with 5m 6mm² solar cable and branch connector

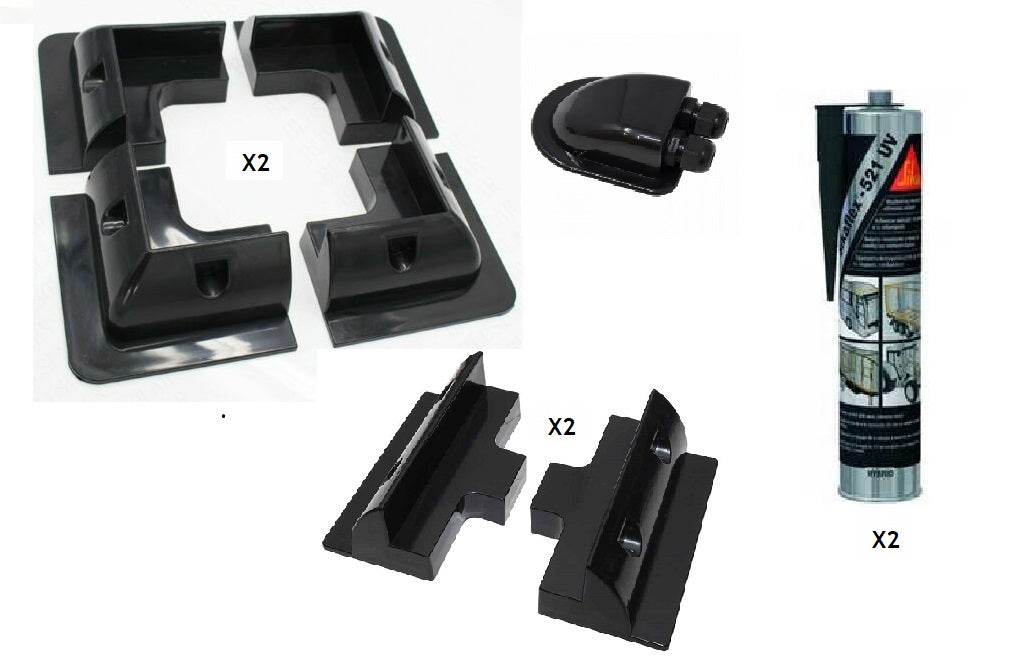

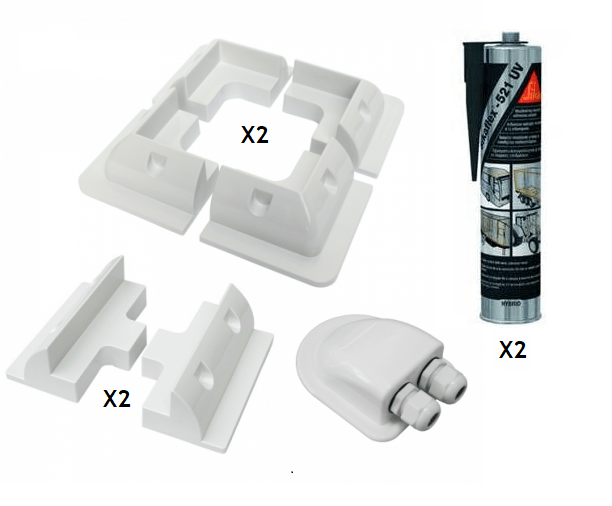

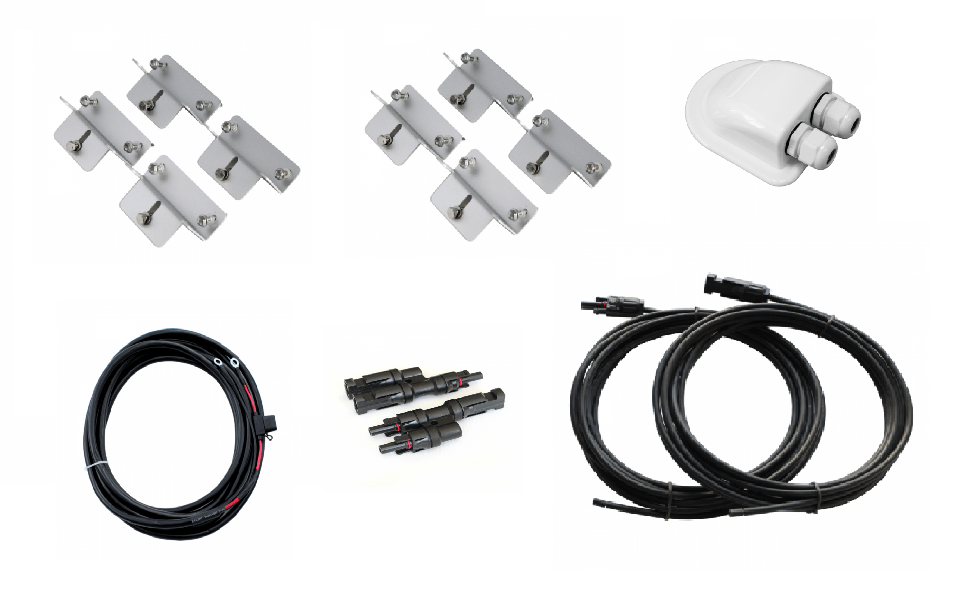

You will need to select the solar panel mounting option and cable entry gland to suit your vehicle

6 way fuse box kit

Switch Panel Kit

Parts Lists

DMT1230 Battery to Battery Charger with solar MPPT

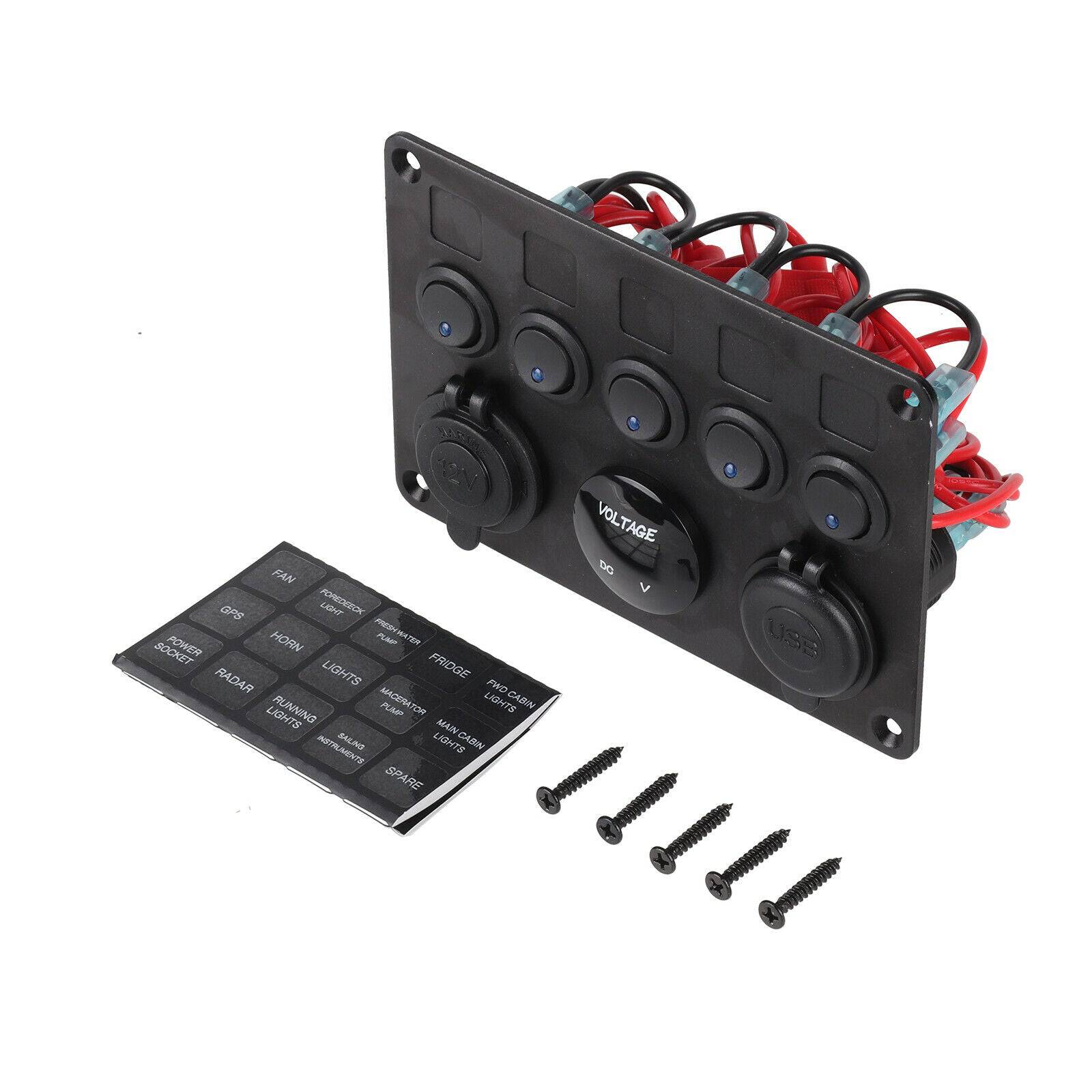

PSUSB050 - Switch Panel - USB - Power Socket - Volt Meter
FB6LED - 6 way LED Fuse Box
2 x VSP185M 185w Victron mono Solar Panels
1 x Branch Connector
1 x 6mm Solar Cable (5m)
1 x BI020C Battery Isolators
1 x KG20 Solar DC Isolation Switch
1 x BB100MP Bus Bar
1 x BT008 Battery Terminals
1 x Fitting Pack - Cable Ties - Cable Tie Bases - Screw Pack

Cable
8m 16mm Red Cable
8m 16mm Black Cable
8m 1mm Red Cable
8m 13mm Conduit
1m 10mm Red Cable
1m 10mm Black Cable
5m x C042TW 42amp Twin Core Cable

Fuses
3 x SLF001 Fuse Holders
2 x 40amp Midi Fuse
2 x 50amp Midi Fuse
2 x 60amp Midi Fuse
4 x 5amp + 10amp Blade Fuses
2 x 15amp + 20amp Blade Fuses
2 x BF30 Blade Fuse

Terminals
10 x 16-6T Terminals
10 x 16-8T Terminals
6 x 16-10T Terminals
5 x 10-6T Terminals
4 x 10-8T Terminals
4 x 10-10T Terminals
5 x CTY004 Yellow Ring Terminals
4 x CTY010 Yellow Ring Terminals
2 x CTY008 Yellow Ring Terminals
4 x CTY006 Yellow Ring Terminals
2 x CTY001 Yellow But Terminals
2 x CTY063/FI Yellow Female Terminal
2 x CTB063M Blue Male Terminal
6 x CTB001 Blue Butt
6 x CTB004 Blue Ring Terminal

Heat Shrink
20 x Red Heat Shrink
20 x Black Heat Shrink
