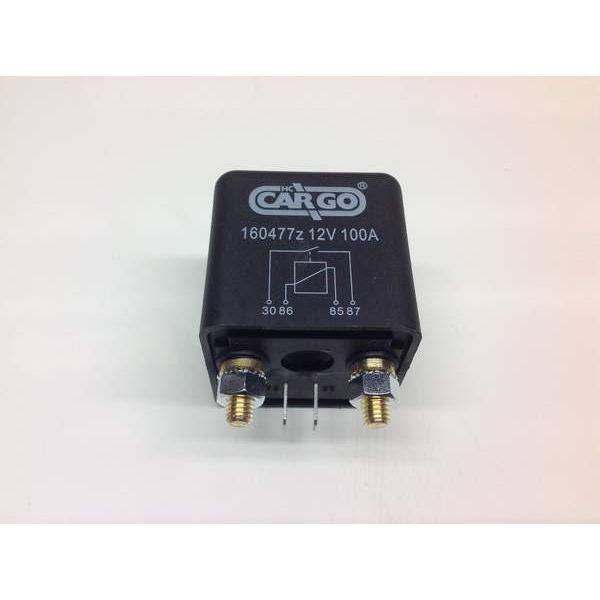

HC Cargo 12V 100amp Heavy Duty Relay / Split Charge Relay

Product Details

Suitable for all 4x4s, Day Vans, Camper Vans, Motor Homes, Mobile Workshops, cars and Boats or any vehicle needing a high power relay

12 Volt Heavy Duty on/off Relay
100 amp rated
180amp for 15 seconds
Fixing tag
2 x 6mm main ring terminals
2 x 6.3mm spade terminals
Simple wiring diagram supplied
Brand new item from UK supplier
12 months Warranty

Can be used as a split charge relay supplied with fitting instructions
Connect your main starter battery to terminal 30 (6mm post terminal)
Connect terminal 87 (6mm post terminal) to your leisure Battery
Connect a positive feed ( Usually taken from the vehicle alternator warning light control lead ) or switch feed to terminal 85 (6.3mm splade terminal) to switch the relay on and off.
Connect terminal 86 (6.3mm spade terminal) to the vehicles earth.

This will allow you to charge any leisure battery while the engine is switched on and will isolate your main starter battery and your leisure battery when your engine is switched off. This will ensure you will always have enough power in your main starter battery to start your vehicle
