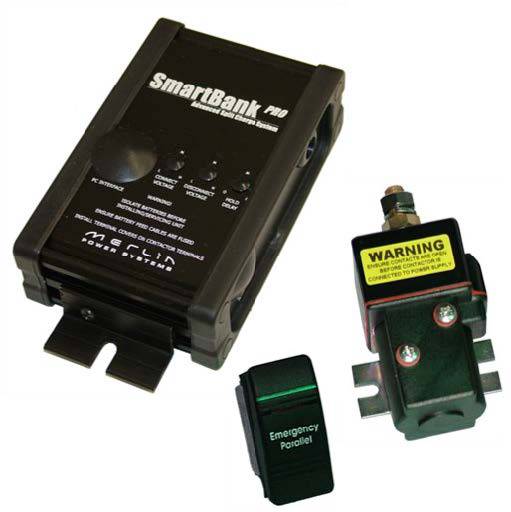

Merlin Power SmartBank Pro 12v Heavy Duty Split Charge

Product Details

SmartBank PRO is the most advanced stand-alone split charging device available.

Utilising industry accepted “Best Method” split charging, SmartBank PRO introduces no voltage drop, does not force feed batteries and allows capacity sharing be-tween battery banks to stretch battery run-times to the max.

On board DSP (Digital Signal Pro-cessing) prevents it being confused by transient loads and built in Datalogging allows you to track system performance and tune it to maximise charge efficiency.

• SmartBank PRO can be batch programmed by PC—ideal for fitting across large fleets. Suitable for SRCS systems.

• Advanced Split Charging for larger systems & professional users

• Manual and Computer Adjustment of Split Charge Settings and built in data-logging

• Charge Prioritising & Capacity Sharing - allows you to prioritise charge order and share spare engine battery capacity with auxiliaries

• 8 x programmable inputs & outputs to allow easy integration of alarms, interlocks, dual station emergency parallel switches and automatic reset of flat battery protection systems

• Suitable for electric vehicle split charging

Specifications

12 Volt Models

Contact or Current - Continuous 200A

Contact or Current - 5 Mins 250A

Contact or Current - Cranking (Emergency Parallel) 725A

Power Consumption <10mA

Connect/Disconnect Voltage Adjustment Range  Fully adjustable

Time Adjustment Range Fully adjustable

CPU Dimensions L x W x H (mm) 68 x 110 x 32

CPU Weight - Ex Cables (g)178

Contact or Dimensions L x W x H (mm) 91 x 50 x 39

Contact or Weight (g) 375

Compliance EMC2002/95/EC, CE, ISO7637-2, SAE J1171

E-Mark Certification Yes

We also supply this system as a full kit including everything needed to get it installed into your vehicle

2-10m Red 40mm² 300amp Cable

1m Black 40mm² 300amp Cable

2-10m Conduit

BT008 Battery Terminals

Heat Shrink Pack

10 x 35-8T Copper Tube Terminals

3 x 35-10T Copper Tube Terminals

1 x 35-6T Copper Tube Terminals

10 x CTR063/FI  Red Pre insulated 6.3mm Crimp Terminals

2 x Mega Fuse Holders

3 x 250amp Mega Fuses

2 x Red Cable Covers

Fitting Pack including Cable Ties + Cable Tie Bases
