Power Distribution kit 25mm² 170amp
Please select kit length
Choose options
Please select kit length
Please select kit length
Product Details
Leisure battery Power distribution pack is a simple solution to have up to 5 circuits from a your leisure battery using a mega midi fuse box and bus bar.
The mega / midi fuse box gives you the following outputs
1 x mega fuse suitable for high load devices ie an inverter
4 x midi fuse for smaller loads from DC-DC charger, solar mppt, fuse box and mains ac charger
1 x negative common bus bar for all negative connections to your devices or chassis
This kit is supplied with 25mm² cable to supply power to your system up to 150amps.
Please select the kit length from the drop down menue for the distance between the leisure battery and fuse box/bus bar location

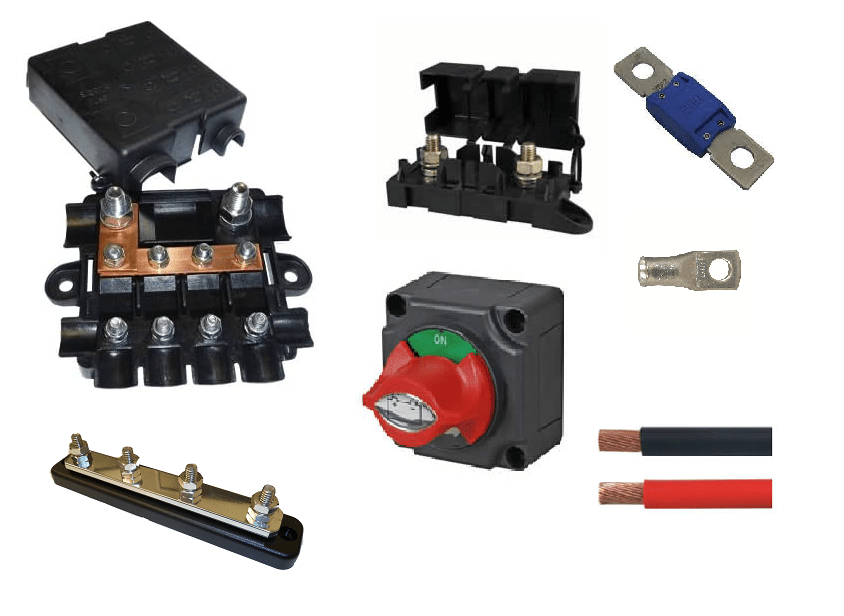

Supplied with the following items
1 x Mega/midi distribution fuse box
1 x Mega Fuse Holder + 2 x 150a Mega Fuses

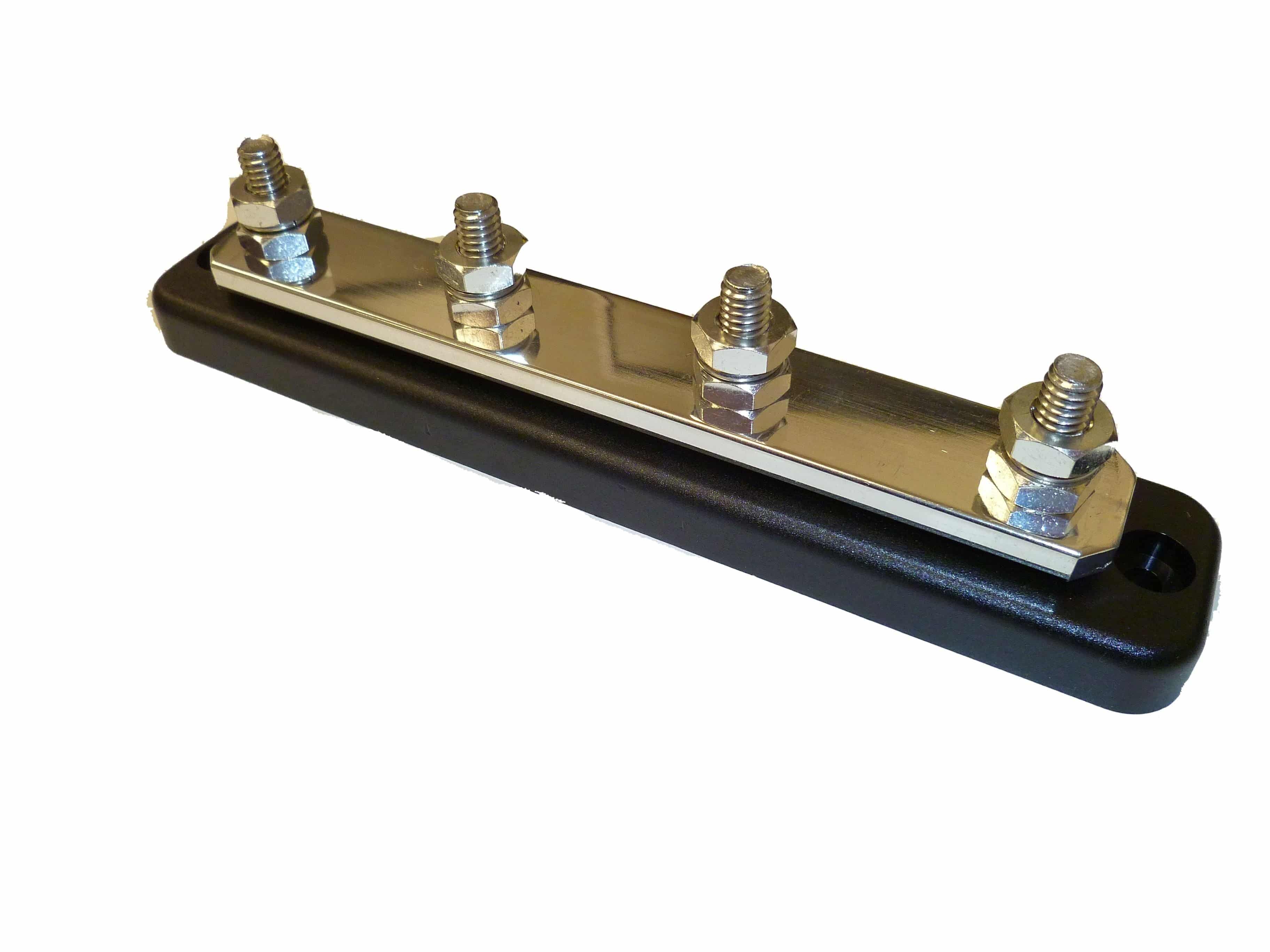

1 x 150a bus bar
1 x 300a Battery isolator
0.5-2m 25mm² 170amp red battery cable
0.5-2m 25mm² 170amp black battery cable
6 x 25-8 copper tube ring terminal
2 x 25-10 copper tube ring terminal
6 x red + 3 x black heat shrink
PLEASE NOTE THE MIDI FUSES IN IMAGE ARE NOT SUPPLIED IN THIS KIT
