Power Distribution kit 50mm² 345amp

Product Details

Leisure battery Power distribution pack is a simple solution to have up to 5 circuits from a your leisure battery using a mega midi fuse box and bus bar.

The mega / midi fuse box gives you the following outputs

1 x mega fuse suitable for high load devices ie an inverter

4 x midi fuse for smaller loads from DC-DC charger, solar mppt, fuse box and mains ac charger

1 x negative common bus bar for all negative connections to your devices or chassis

This kit is supplied with 50mm² cable to supply power to your system up to 250amps.

Please select the kit length from the drop down menue for the distance between the leisure battery and fuse box/bus bar location

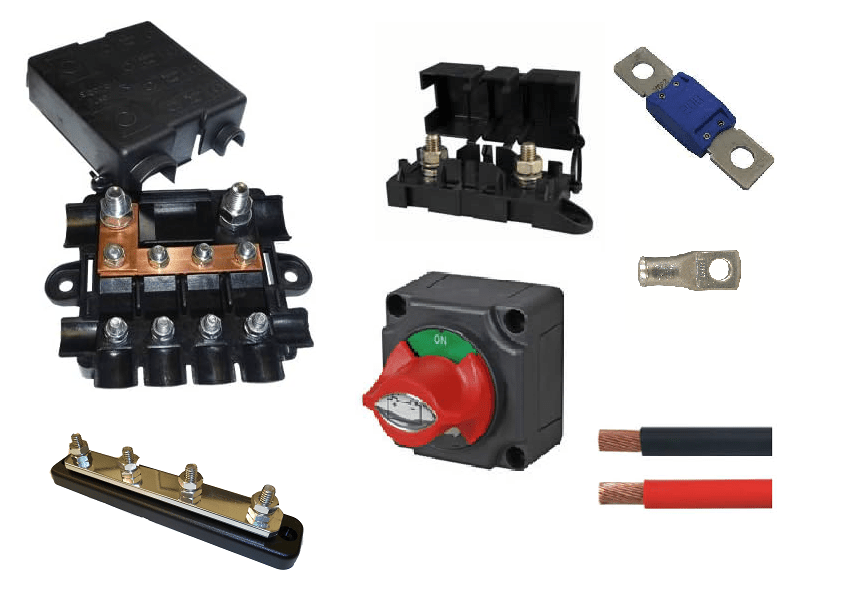

Supplied with the following items

1 x Mega/midi distribution fuse box

1 x Mega Fuse Holder + 2 x 250a Mega Fuses

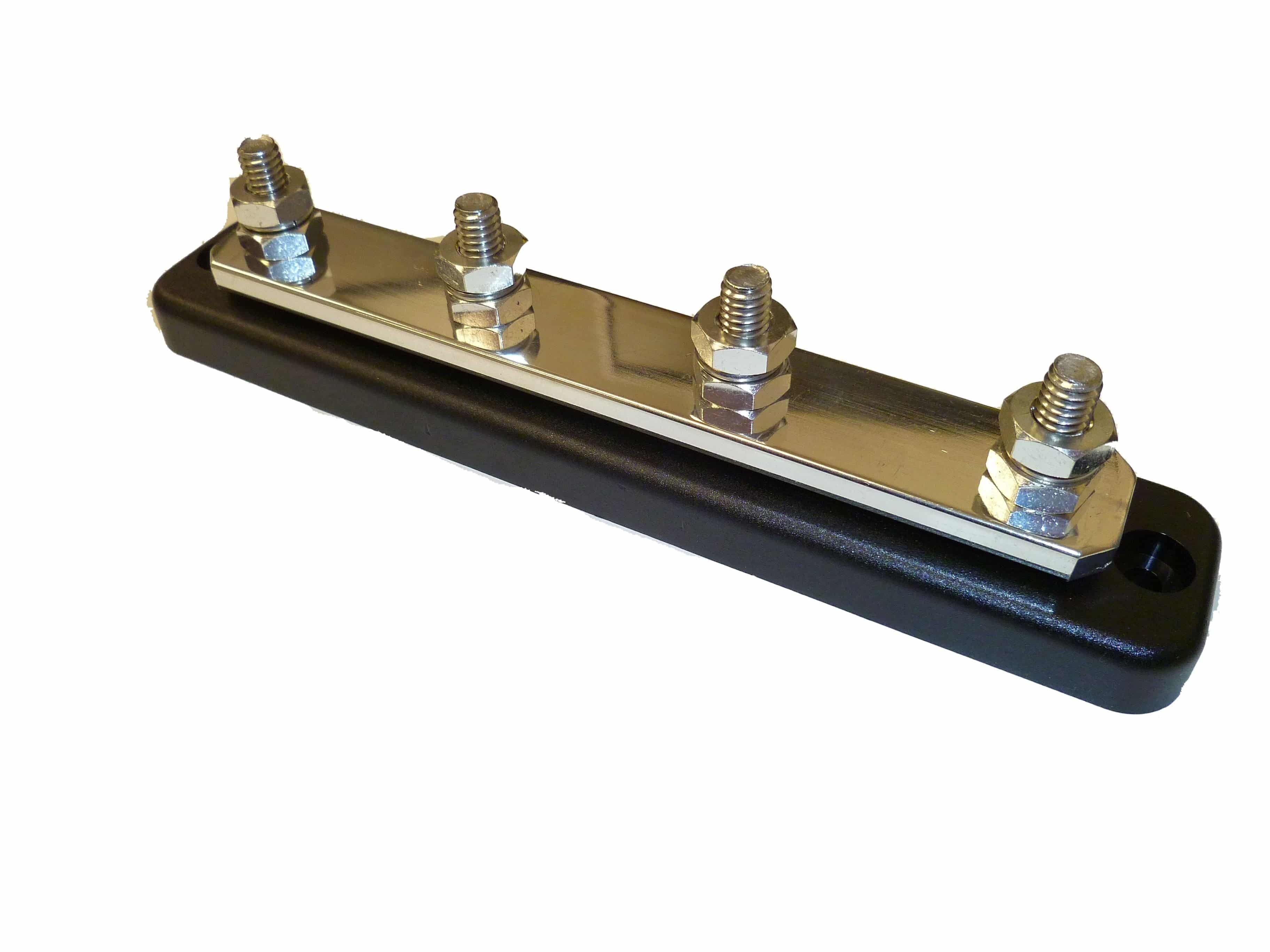

1 x 250a bus bar

1 x 300a Battery isolator

0.5-2m 50mm² 345amp red battery cable

0.5-2m 50mm² 345amp black battery cable

6 x 50-8 copper tube ring terminal

2 x 50-10 copper tube ring terminal

6 x red + 3 x black heat shrink

PLEASE NOTE THE MIDI FUSES IN IMAGE ARE NOT SUPPLIED IN THIS KIT
