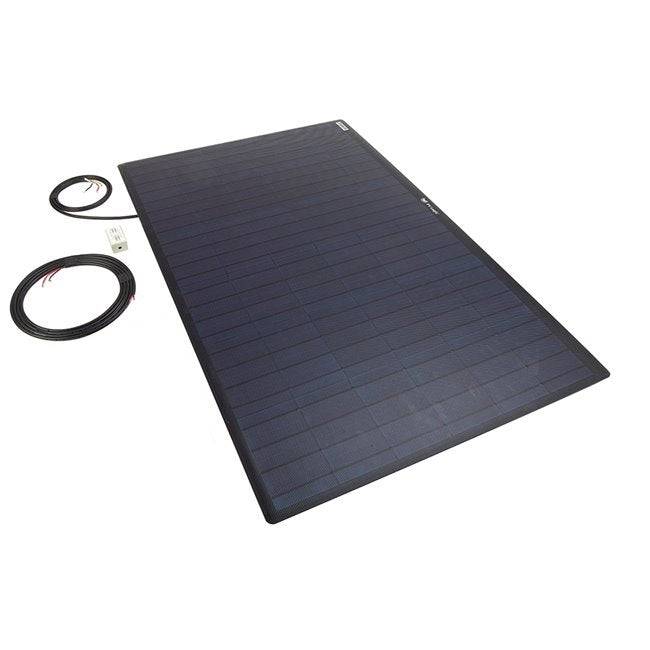

PV Logic 100w Semi-Flexible Solar Panel Black - Rear Junction Box

Product Details

PVLogic Flexi solar panels are the ultimate choice for flat or slightly curved surfaces.

Benefitf rom the semi-flexible panel's self-healing top surface

The ETFE top layer gives the PV Logic flexi extra resilience in really tough conditions. ETFE has a memory effect or self-healing capacity in the event the panel comes into contact with branches etc, thus ensuring any slight abrasions are ‘healed’ within a few hours.The flexi range can even be walked on with soft deck shoes! During production the ETFE is dimpled to further protect the panel and provide an anti-slip surface, particularly useful if the panel isfitted to a boat deck.

Completely waterproof

Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicon, guaranteeing no water ingress.

Cellsprotected from hot spots

Where used on a camper van or boat, partial shading of a solar panel is typical. In these circumstances, heat build-up and damaging hot spots can occur leading to a significantly reduced life cycle of the panel.The larger 60w and above PV Logic flexi panels have up to two shading diodes housed within the fully waterproof junction box to prevent this occurrence.

Superior design

 There are no square edges on a PV Logic flexi solar panel! Rounded panel corners and a unique curved junction box provide superior adhesion,no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted 4m UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box.

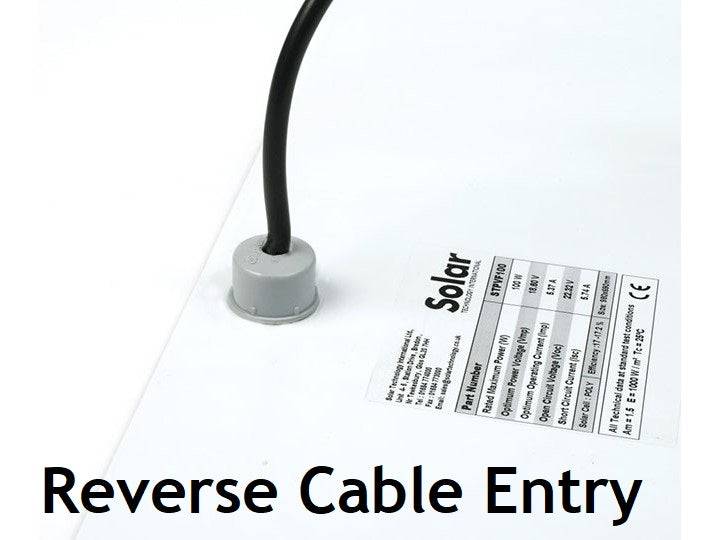

Undersidecable exit (100w and 150w panels only)

The cable of the 100w and 150w flexi panels exits the panel from the underside allowing for a completely flush fit to your roof ordecking. A remote shading diode box is ensures consistent performance even in partially shady conditions. The 100w and 150w panels are available with a white back sheet or all black.

Easyfix

The semi-flexible range can be bonded to flat or slight curved surfaces(3cm curve per metre) such as painted aluminium, metal, GRP andfibreglass using Simson ISR 70-03. The aluminium layer is also pre-drilled with 4.5mm holes should the panel need to be mechanically fixed as well as or instead of bonding.

Specifications + Parts List

SPECIFICATIONS

Size 980x650x4mm

Weight (Kg) 3.75

*Watts per day(W) 600

*Amp hours perday (A) 36.84

Chargecontroller 10Ah

Vmp (VDC) nominalvoltage 17.6 Imp

(A) nominalcurrent 5.78

Voc V 21.9

Isc (A) short circuitcurrent 6.14

100W Rear ExitFlexi Solar Panel

Cable Length 2m 3-core to external diode block + 3m twin core cable

*Watts and Amphours/day based on six hours of average daily peak sunshine hours. Above specification at standard test conditions (STC) 1000w/m2, CellTemp 25c IP (Ingress Protection) Rating IP69

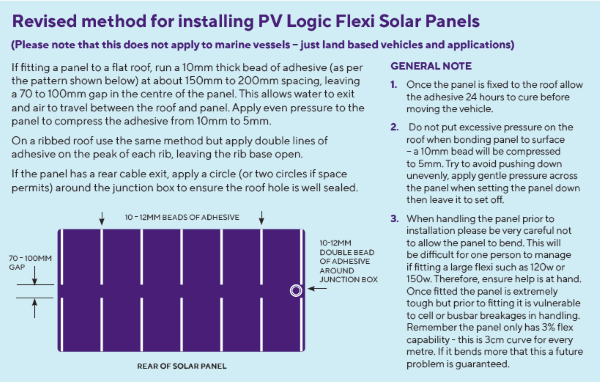

Please only use the glue pattern below (this is covered in more detail inthe instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.
