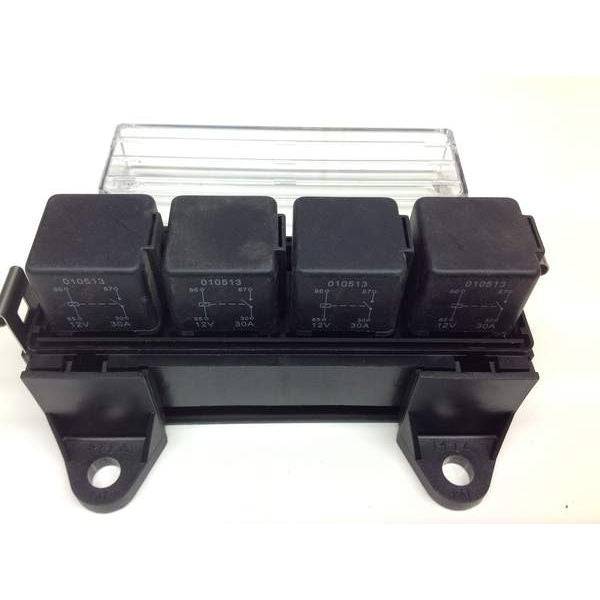

Relay Box for 4 Automotive relays + 4 x 12V 30amp 4pin make/Break Relays

Relay Box for 4 Automotive relays + 4 x 12V 30amp 4pin make/Break Relays

Relay Holder

Suitable for FOUR x standard size automotive 4 or 5 pin relays
Supplied with all required terminals suitable for cables from 1mm2 - 2.5mm2.
Fully interlocking, units can be interlocked to hold any number of relays
Relay box complete with transparent cover, gasket and locking bars.
The terminals supplied are crimped onto the appropiate cables and pushed into place on the base panel, the terminals are then firmly held into place by the locking bars.
Dimensions 64mm (H) x 123mm (W) x 42 (D)

Relays x 4

• 12V 30amp 4 pin relay
• 1 x 30 terminal
• 1 x 87 terminal
• 1 x 85 terminal
• 1 x 86 terminal
