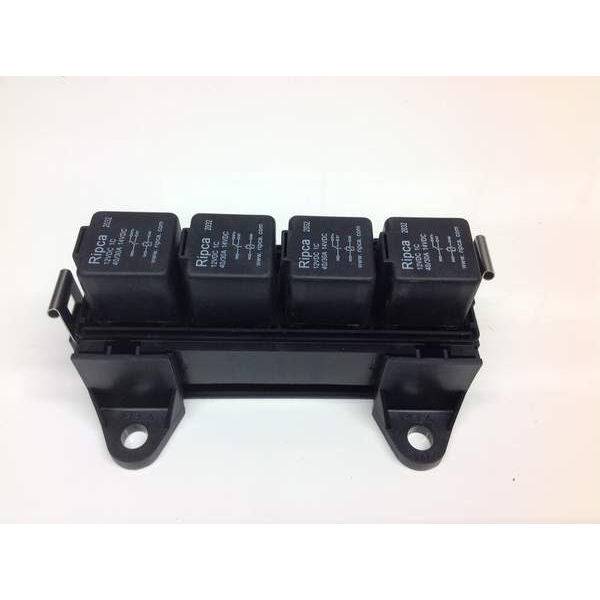

Relay Box for 4 Automotive relays + 4 x 12V 40/30amp 5pin change over Relays

Product Details

Relay Box for 4 Automotive relays + 4 x 12V 40/30amp 5pin change over Relays

Relay Holder

Suitable for FOUR x standard size automotive 4 or 5 pin relays

Supplied with all required terminals suitable for cables from 1mm2 - 2.5mm2.

Fully interlocking, units can be interlocked to hold any number of relays
Relay box complete with transparent cover, gasket and locking bars.

The terminals supplied are crimped onto the appropiate cables and pushed into place on the base panel, the terminals are then firmly held into place by the locking bars.

Dimensions 64mm (H) x 123mm (W) x 42 (D)

Relays x 4

• 12V 40/30amp 5pin relay

• 1 x 30 terminal

• 1 x 87 terminal

• 1 x 87a terminal

• 1 x 85 terminal

• 1 x 86 terminal
