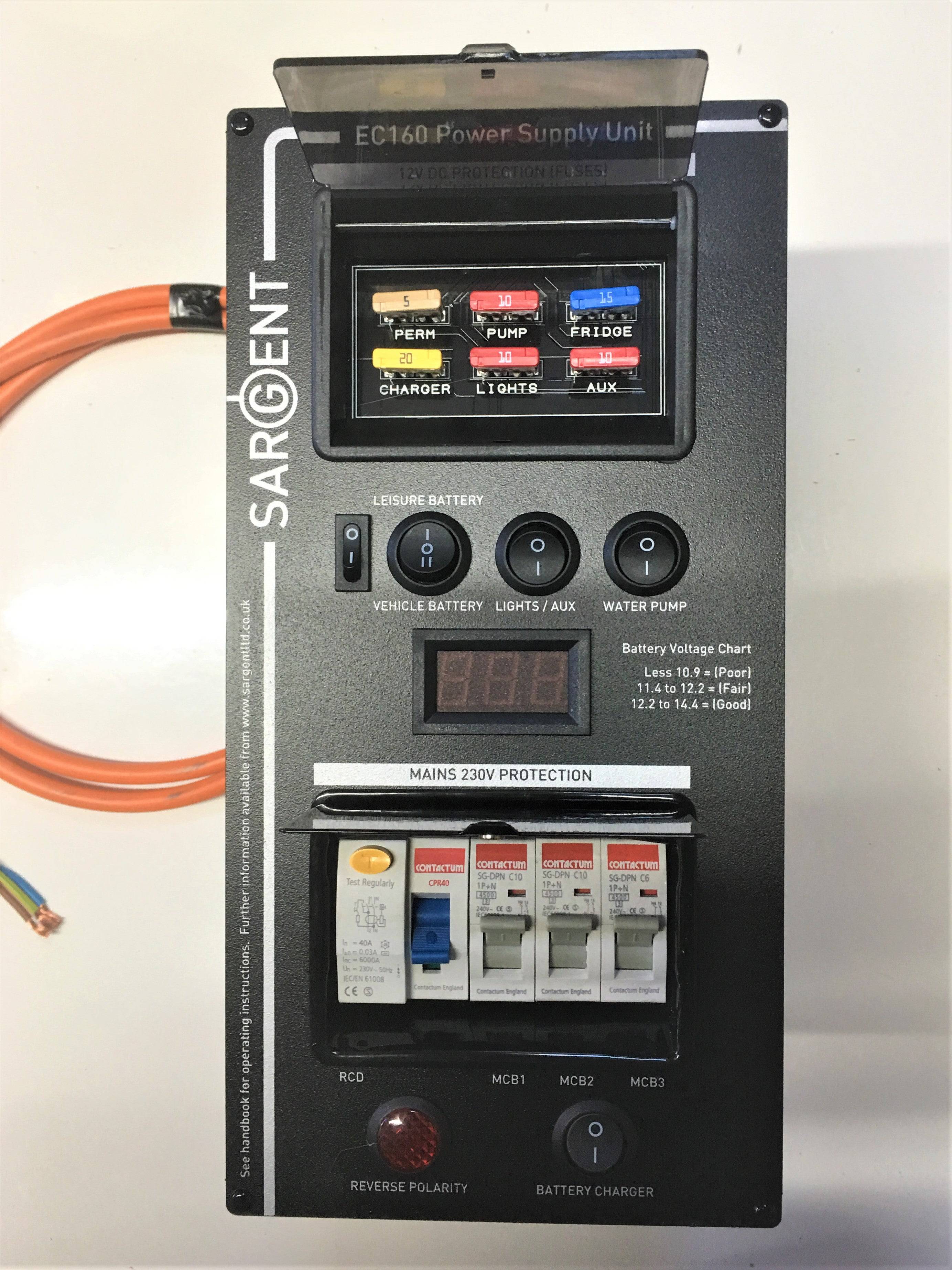

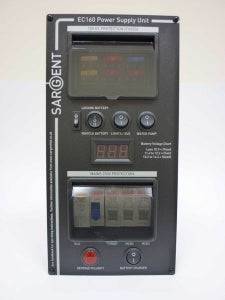

EC160 power management system suitable for horsebox, caravan and motorhome installations for split charging, mains hook up, mains charging and 12v fused outputs

Suitablefor horsebox, caravan and motorhome installations.

Easyto install and very easy to operate.

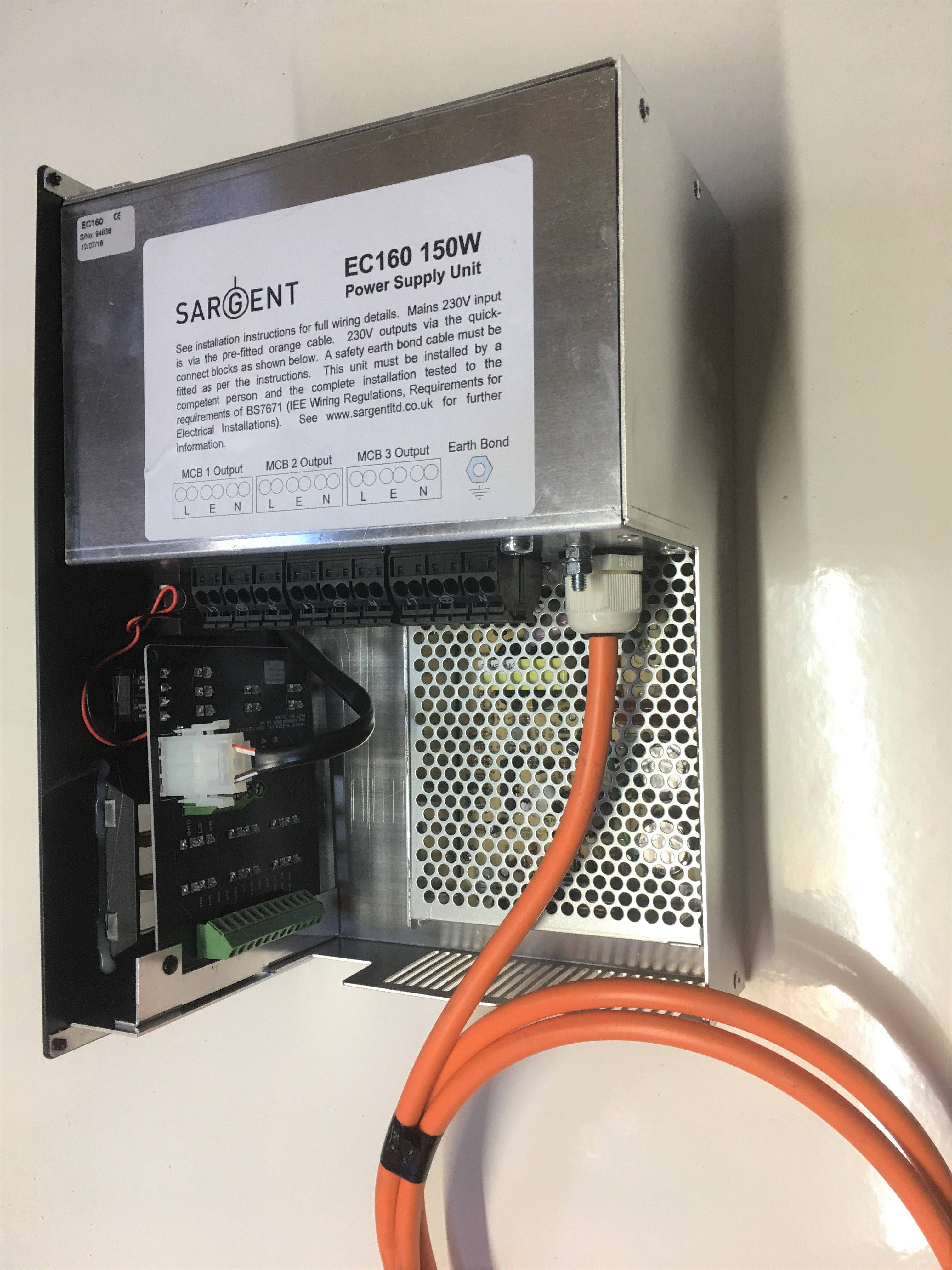

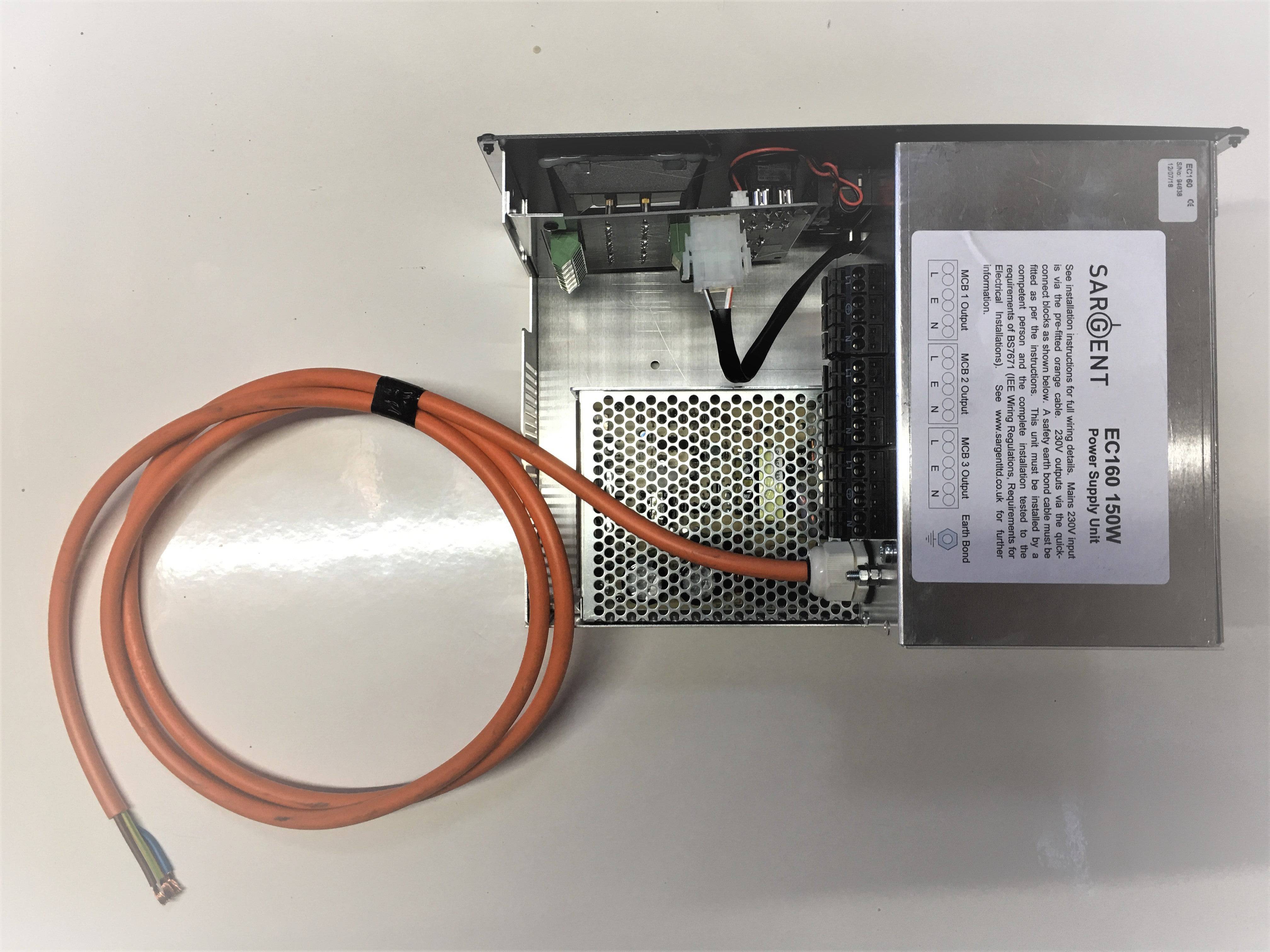

230vAC:16A input via wired 2m lead, RCD protected with reverse polarityindication.

Buildin 150w 13.8v fixed voltage battery charger with on/off switch.
3x 10A MCB outputs via quick fit connector blocks.

12vDC: 2 x 15A battery inputs via screw terminal block.
5 x outputsvia screw terminal black.
Pump output via Pump switch and 5Afuse.
Lights output via lights/Aux switch and lights 10A fuse.
Auxoutput via Light/Aux switch and Aux 10A fuse.
Permanent output via5A fuse.
Fridge output VA 15A fuse.
Built in split charge relay(configurable).
Built in EMC isolation relay(configurable).
Digital voltmeter with on/off switch.

Dimensions:

FrontPanel 300x 150mm
Panel Cut Out 285 x 132mm
Depth 200mm
