Split Charge Relay Kit - Durite 12v 140amp Voltage Sense Relay

Product Details

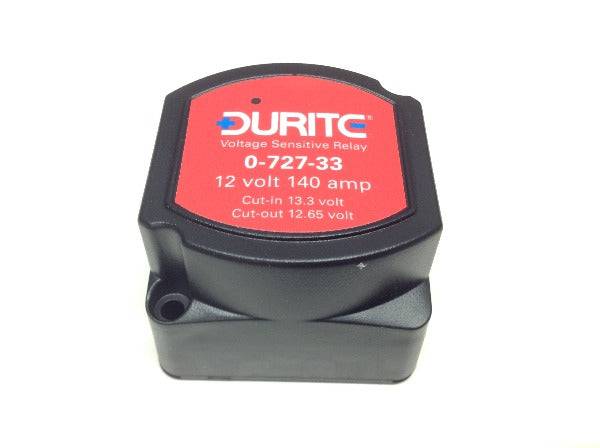

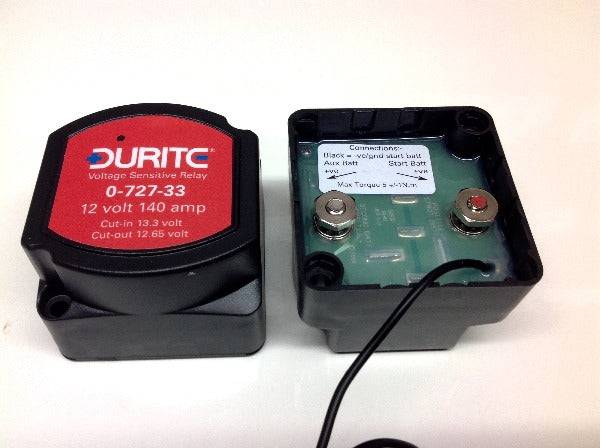

12v Split charge relay system supplied with a Durite 0-727-33 12v 140amp voltage sense relay & 110amp 16mm² cable  suitable to install into most older Campervans, Motor homes, 4x4s, Day Vans, Mobile workshops, Cars and Boats.

This type of system is NOT suitable for modern vehicles fitted with a smart alternators which will require a battery to battery charger

Simply install the two fuse holders and the Voltage sense relay using the fixings supplied. Then simply connect all the cable or pre crimped leads, following the very easy to understand supplied fitting instructions to install this very high quality and simple to install split charge system.

The voltage sense relay simply detects the rise in voltage from you vehicles charging system when it exceeds 13.3v to allow you to charge your leisure battery(s) while your engine is running. When your engine is switched off and the battery voltage drops below 12.65v the relay will isolate your leisure battery(s) from your main starter battery so it does not drain your main starter battery and you will always be able to start your vehicle.

All of the range of 140amp voltage sensitive relays are dual sensing meaning that if a charging voltage like through a mains charger or solar panel is applied to the leisure battery that exceeds the relay activation voltage of 13.3v it will activate the relay to allow this charging device to also maintain the starter battery.

Additional Information

• Relay activation voltage 13.3v


• Relay isolation Voltage 12.65v


• Dual sense operation


Voltage sense systems are very simple to install as they do not need an ignition feed or any additional wiring into your vehicle but for modern  vehicles with Euro 5 & 6 engines with smart alternators you will need to use a battery to battery DC-DC charger.

Please see our help and advice pages for more information on smart alternator vehicles and battery to battery charges.

Specifications + Parts List

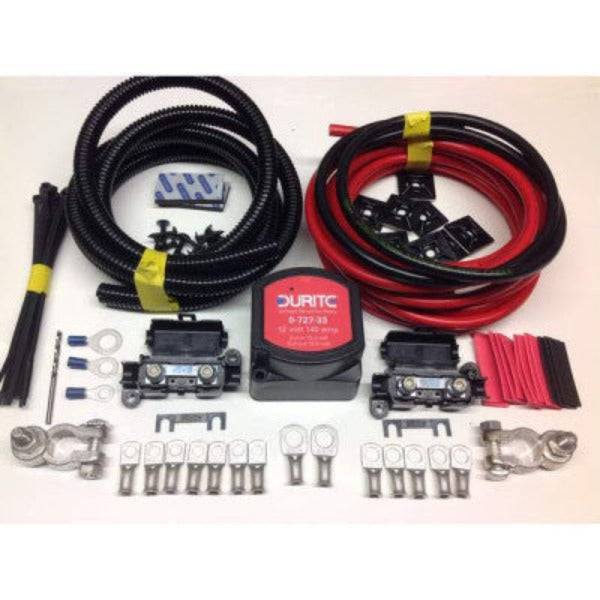

You will be supplied the following products for the kit option selected.

Pre Crimped Option

12V 140amp Durite Voltage Sense Split Charge Relay.
1 x 250mm 110amp Red Starter Battery to fuse box lead. (8mm to 6mm terminals
1 x 500mm-9000mm 110amp Red Fuse box to relay lead (6mm to 6mm terminals)
1 x 500mm 110amp Red Relay to fuse box lead (6mm to 6mm terminals)
1 x 250mm 110amp Red Fuse Box to Leisure Battery Lead (6mm to 8mm terminals)
1 x 1000mm 110amp Black Earth Cable. (8mm to 10mm terminals)
Spare terminals + Heat shrink pack for modifications if required
Positive & Negative 8mm post type battery terminals
2 x Fuse Holders & 100amp Fuses including a spares.
15 x Cable ties + fixings to keep everything tidy.
2mtr Split conduit to protect cables in Engine bay.
Screws to fix fuse boxes + cable tie bases
High Quality HSS Drill Bit
Easy to understand Fitting Instructions.

Cable + Component Option

12v 140amp Durite Voltage Sense Split Charge Relay
1-10mtrs 110amp 16mm² Red Power Cable
1mtr 110amp 16mm2 Black Earth Cable
1 x Pair 8mm post type battery terminals
2 x Fuse holders &100amp Fuses including spare.
Crimp or solder ring Terminals to connect everything together.
Heat shrink to protect all the connections.
15 x Cable ties + 10 x adhesive cable tie fixings to keep everything tidy.
15 x fixing screws
High Quality HSS Drill Bit
2 x sticky pads to use if required
2mtr Split Black plastic conduit to protect cables in Engine bay.
Easy to understand Fitting Instructions

Manuals + Guides

Durite 0-727-33 Relay Data Sheet

Fitting Instructions pre-crimped

Fitting Instructions Cable + Components
