Sterling Power BB1230 12v 30amp kit - Simply Split Charge
Sterling Power BB1230 12v 30amp kit - Simply Split Charge

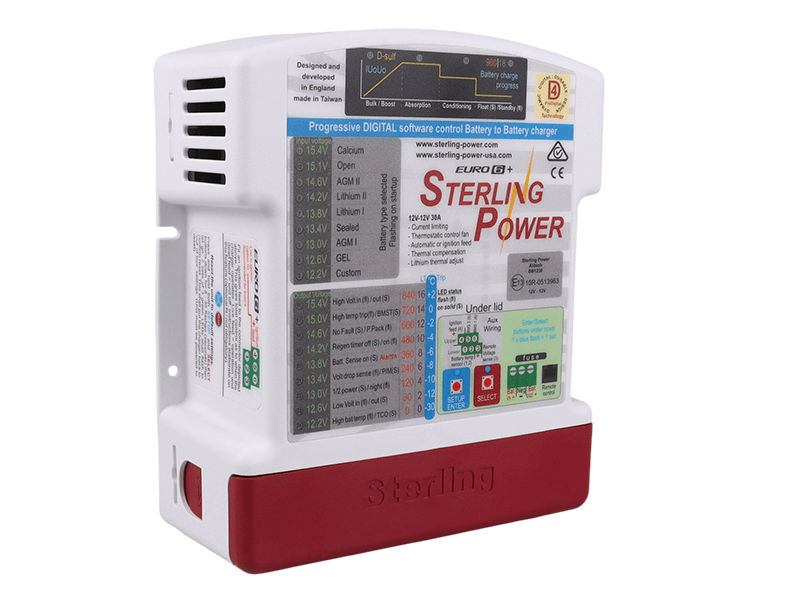

Sterling Power BB1230 12v 30amp kit

£216.00 GBP

Price Includes VAT.

SKU: BB1230/K1
In stock
Please select DC-DC Kit Length:

Please select DC-DC Kit Length
Optional 6 or 12 Way Fuse Box Kit:

Optional 6 or 12 Way Fuse Box Kit
Quantity:

Product Details

Sterling's range of Battery to Battery Chargers (B2Bs) has grown significantly over the past few years. This is in an effort to supplement the ever growing demand from the commercial vehicle, recreational vehicle and marine industries.

Suitable for all modern vehicles including Mercedes Blue Efficiency Sprinters, VW T5 and T6 Blue motion and Fords Econetic Transits

The B2Bs have become extremely popular as they fast charge batteries as you cruise along without the need for complex wiring, touching your alternator, voiding the alternator's warranty and tampering with the electronic control units (ECUs).

You can provide the onboard batteries with a fast 4 stage charging profle with a very simple and speedy installation. All of the benefits of advanced charging without any of the drawbacks.

Simply connect the B2B between the battery being charged and the battery you wish to charge.

You will be supplied with everything needed to install this kit with either cable and components to make up yourself or with the leads pre made for a simpler install

Please select kit option above for either a cable and component kit to make the leads up yourself or a kit with pre made leads for a simple install without the need for expensive crimping tools.

    Parts List

    • BB1230 12v 30amp battery to battery charger
    • 1-10m Red 110amp 16mm Cable
    • 1-10m Black 70amp 16mm Cable
    • 5-10m 1.5mm Red Cable ( Optional Ignition Live feed )
    • 1 x pair 8mm post type battery terminals
    • 2 x strip link fuse holders
    • 4 x 50amp midi fuses
    • Terminals + heat shrink
    • 10 x cable tie bases
    • 15 x cable ties
    • 2 x sticky pads to use on fuse holders if required
    • 15 x 8x3/4 screws
    • 1 x 3mm drill bit
    • 2m black conduit to protect cable
    • wiring instructions plus after sales support if required


    Specifications

    Multiple Activation Modes: Automatic for most non vehicle applications,

    Manual for remote activation.

    Regenerative braking (requiring ignition feed),

    Automatic regenerative braking, requiring no ignition feed.

    Current is NOT taken from the input battery and given to the output battery. The B2B uses alternator power to charge the output battery. Manual mode and regenerative braking made allows you to override this.

    Safety features:

    100% fire proof plastic box.

    No screws to corrode.

    Thermal power reduction.

    Multi stage fan cooling

    Night Time Setting: Allows the unit to ran at half the power so the fan noise is kept down.

    Boost / Reduce Charging: The B2Bs ensure batteries get the correct charging profile irrespective of high or low input voltages.

    B2B turns on at 13.3V and turns off at 13.0V (x 2 for 24V). Thus, does not drain input battery. Regenerative braking mode allows the input voltage to drop to 12.2V (x 2 for 24V).

    9) Customisable Profile: Choose your own charging profile on the front panel.

    9 preset battery chemistry options: Including AGM, LiFePO4, Gel, Flooded and sealed lead acid.

    4 stage battery charging: The B2B charges batteries between 5-20 times faster than a stand alone alternator.

    Very Simple to install: No electronic Control Unit (ECU) issues. No complex wiring. No warranty issues. Fully prepared for smart alternators (regenerative braking).

    Remote control optional.
