USB Power Sockets + Standard 20A Power Socket Panel

Product Details

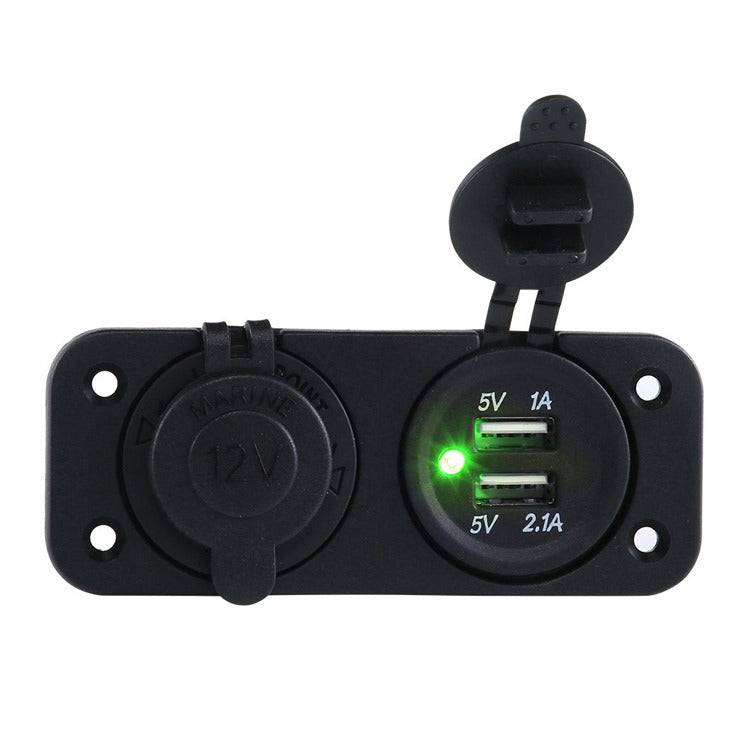

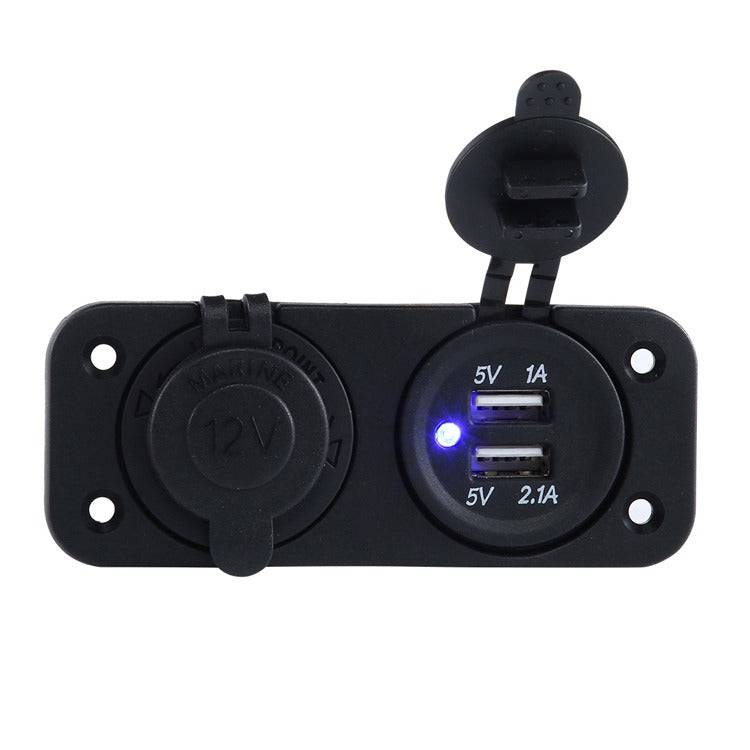

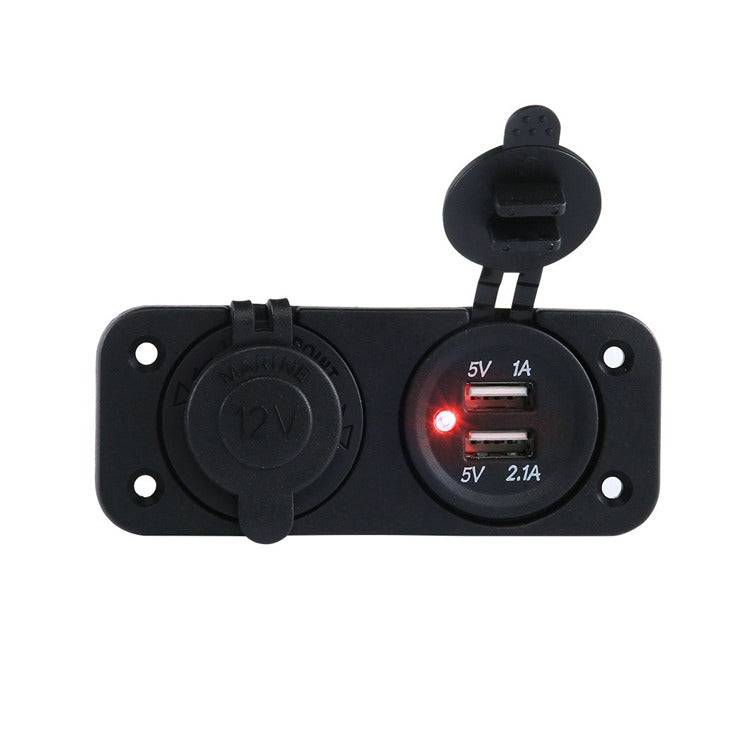

USB Power Sockets + Standard 20A Power Socket Panel

Dual recessed power socket for 12V or 24V systems featuring twin hi-power USB ports and a 20A cigar lighter socket

The cigar lighter socket accepts all standard and universal plugs

The USB ports provide 10W (2.1A @ 5V) which is the same power output as you'd get from your mains wall charger at home

Suitable for charging for ipads, smart-phones, tablets and other mobile devices.

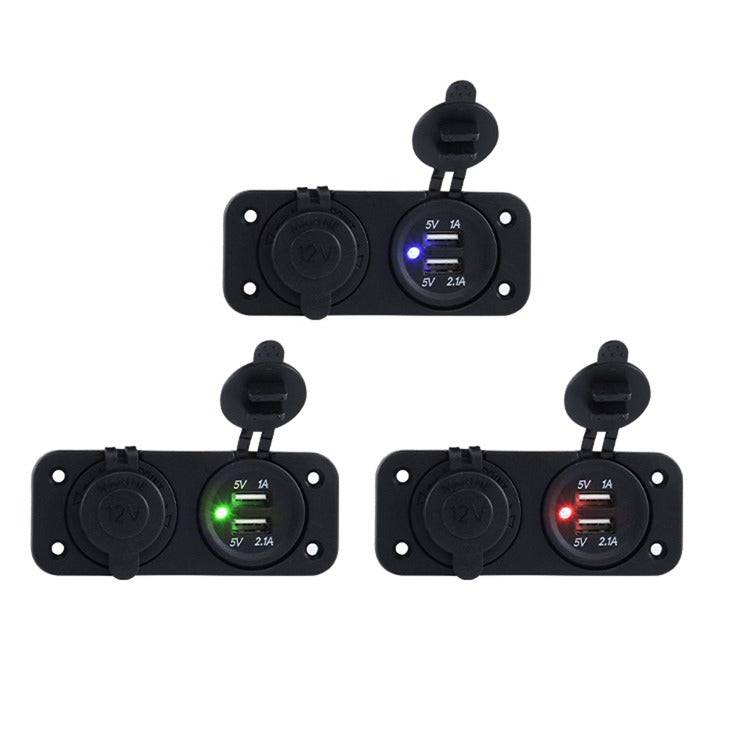

USB ports with a soft glow to indicate that the socket is powered available with Blue, Red or Green LED


Dimensions:-
Overall length 105.50mm
Overall width 45.00mm
Mounting depth (excluding terminals) 40.00mm
Mounting depth (including terminals) 53.00mm

You will be supplied with 1 x twin socket including mounting screws + insulated terminals

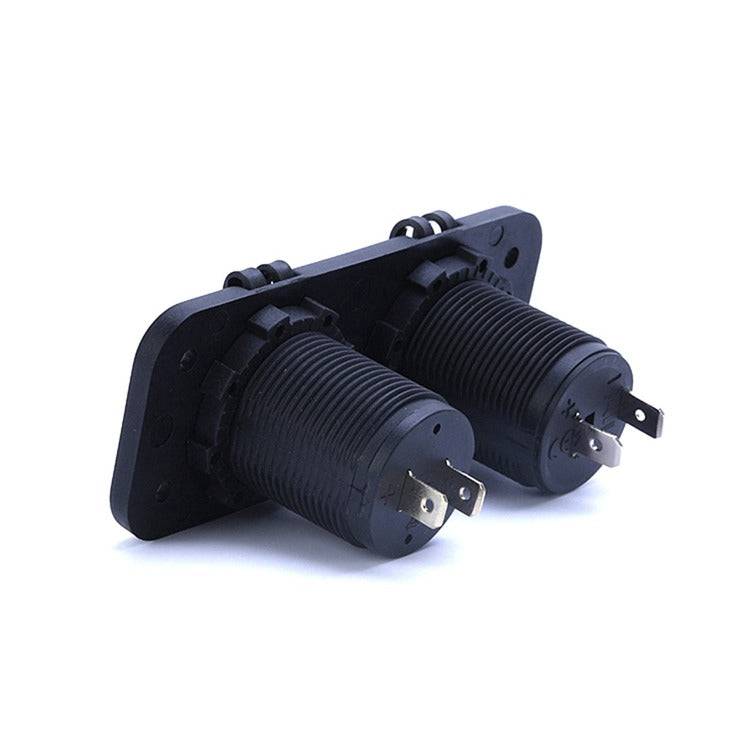

Termination is via positive + negative marked 6.3mm spade terminals
