Victron BMV-700 Battery Monitor

Product Details

Victron Battery Monitor BMV-700 for single battery bank systems.

Suitable for use in caravans, motorhomes, campervans, boats, industrial and commercial vehicles.

Standard features:

Battery voltage, current, power, ampere-hours consumed and state of charge

Time to go at the current rate of discharge

Programmable visual and audible alarm

Programmable relay, to turn off non critical loads or to run a generator when needed.

500 Amp quick connect shunt and connection kit

Shunt selection capability up to 10.000 Amps

VE.Direct communication port

Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health

Wide input voltage range: 9,5 – 95 V

High current measurement resolution: 10 mA (0,01A)

Low current consumption: 2,9 Ah per month (4 mA) @12V and 2,2 Ah per month (3mA) @ 24V

Box Contents:

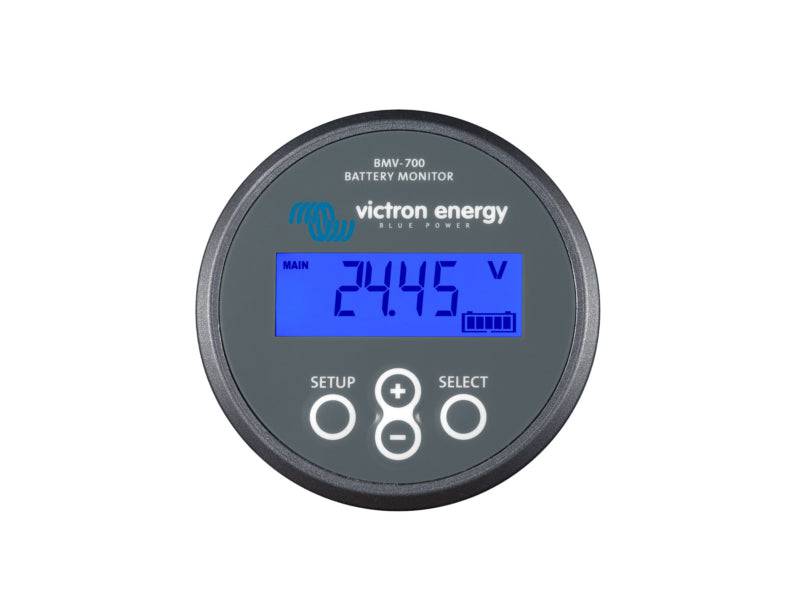

BMV-700 main unit

Panel mounting (square) surround bezel

500A intelligent shunt

Data and battery cables

Battery ‘fuel gauge’, time-to-go indicator, and much more:

The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account. Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts.

Easy to install:

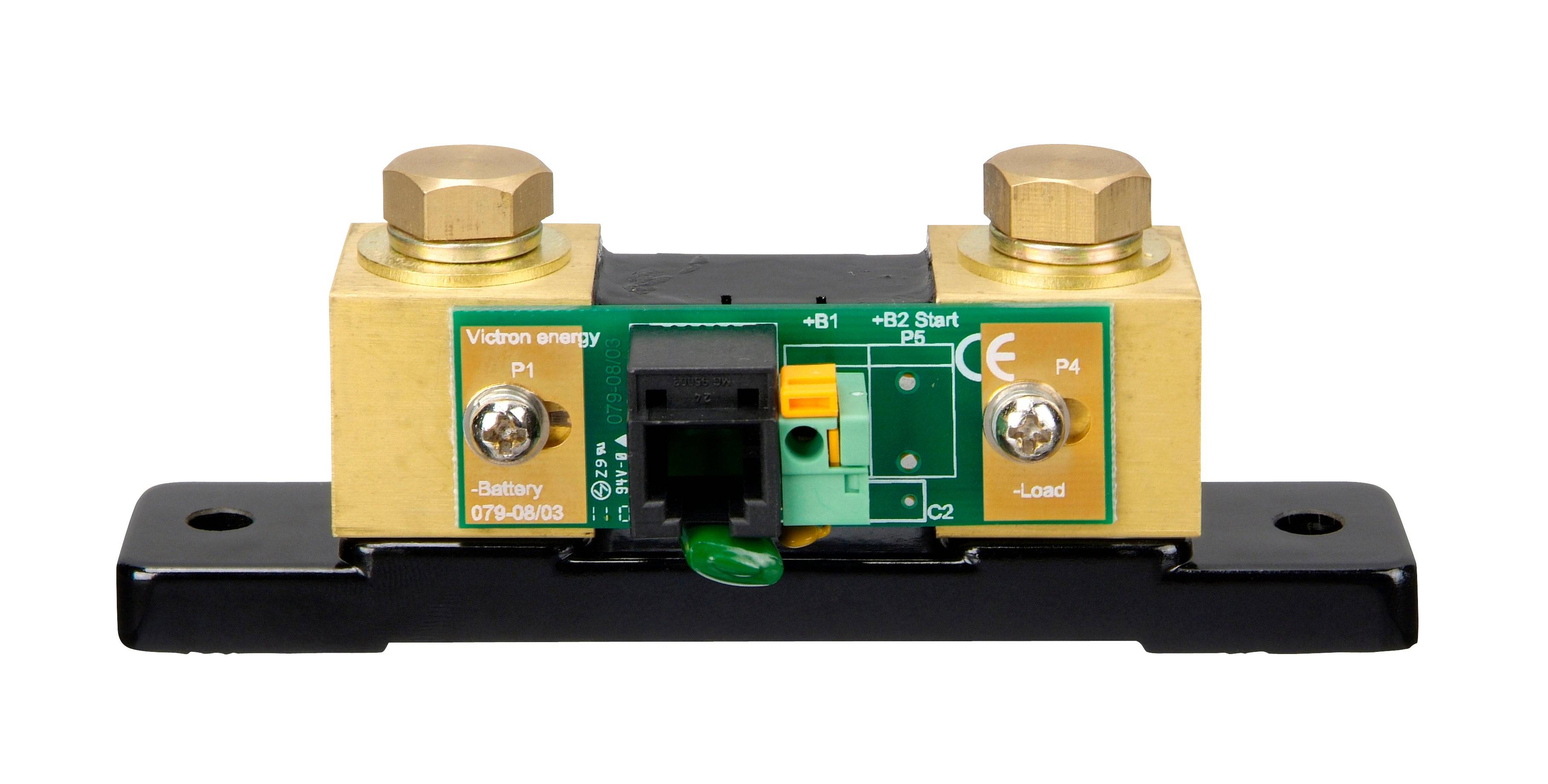

All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed. Also included are a separate front bezel for a square or round display appearance; a securing ring for the rear mounting and screws for the front mounting.

Easy to program:

A quick install menu and a detailed setup menu with scrolling texts assists the user when going through the various settings.

Specification

• Supply voltage range - 6,5 - 95 VDC

• Current draw, back light off - < 1mA

• Input voltage range, auxiliary battery - 6,5 - 95 VDC

• Battery capacity (Ah) - 20 - 9999 Ah

• Operating temperature range - -40 +50°C

• Measures voltage of second battery, or temperature, or midpoint - Yes

• Temperature measurement range - -20 +50°C

• VE.Direct communication port - Yes

• Bistable relay - 60V / 1A normally open (function can be inverted)

• Shunt (included) - 500A / 50mV

• Cables (included) - 10 meter 6 core UTP with RJ12 connectors, and cable with fuse for ‘+’ connection

• Temperature sensor - Optional (ASS000100000)

• Dimensions

• Front (mm) - 63 diameter

• Front bezel (mm) - 69 x 69

• Body diameter (mm) - 52

• Body depth (mm) - 31

• Warranty

• 5 Years
