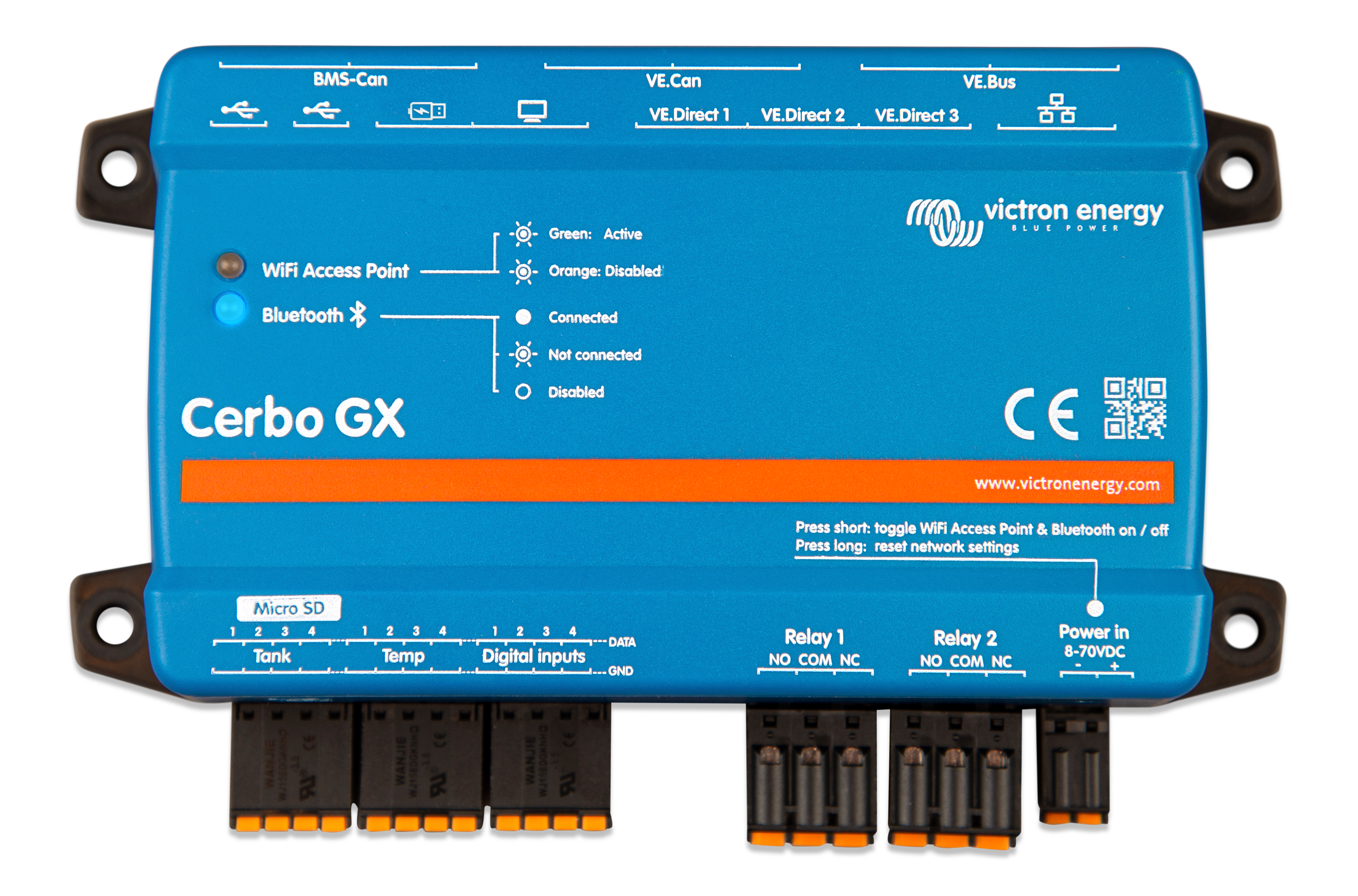

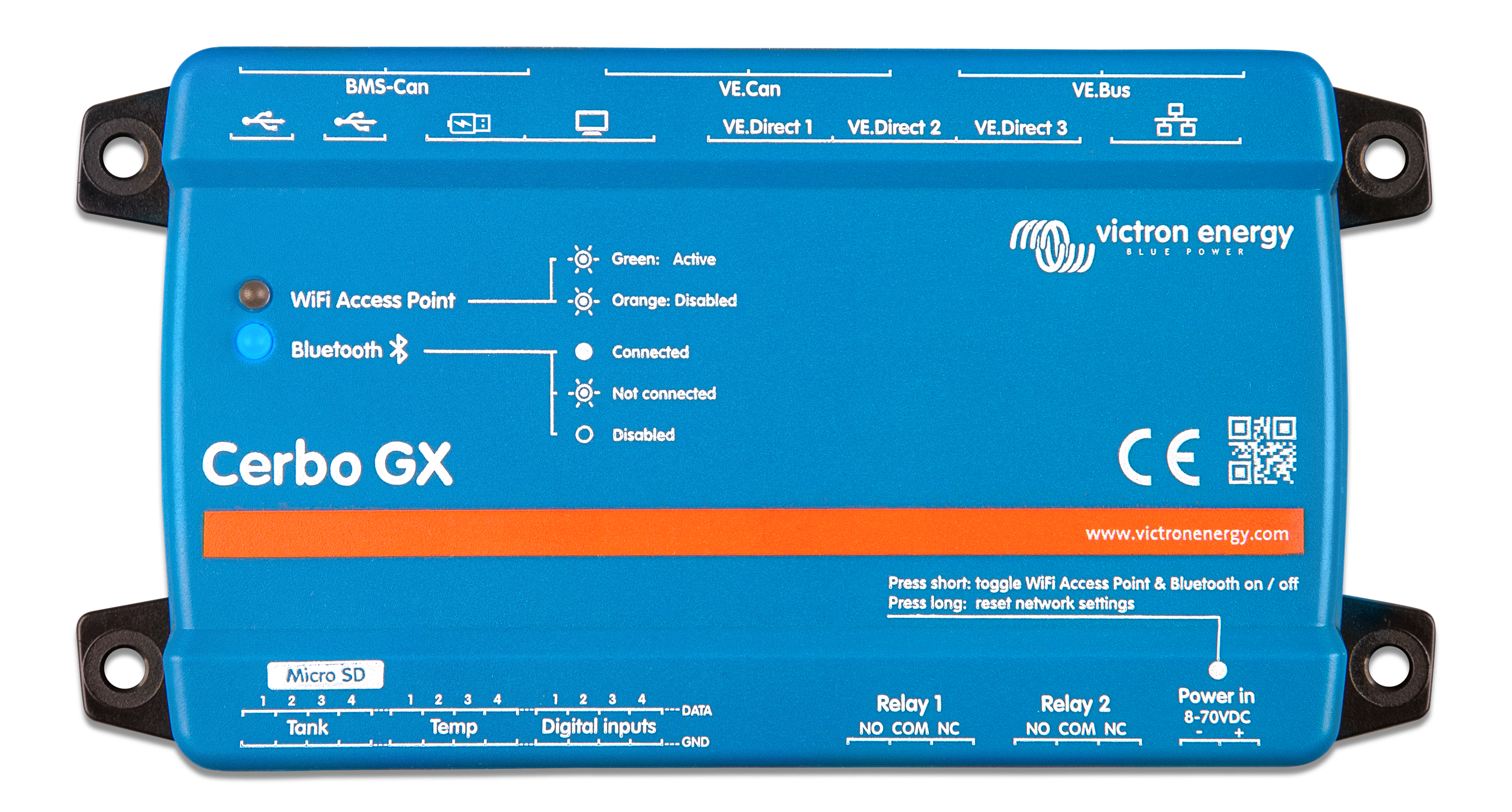

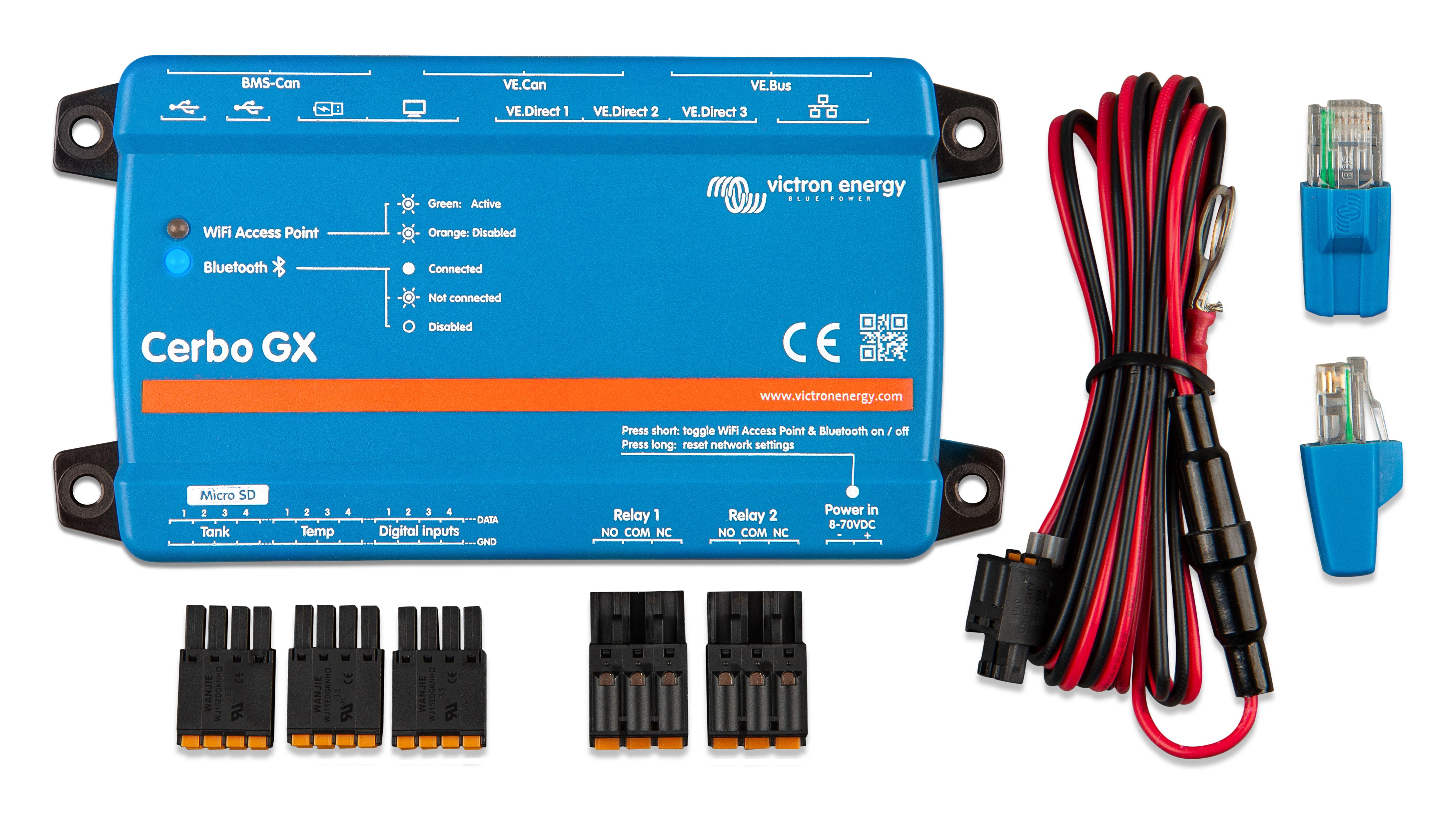

Victron Energy Cerbo GX BPP900450100
Choose options
Product Details
This all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance.
Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch 50, a MFD or our VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.
Features
Perfect monitoring & control
Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimise the system. Follow up on alerts, perform diagnostic checks and resolve challenges remotely. The Cerbo GX turns any power challenge into an effortless experience.
Maximise your system performance
The Cerbo GX maximises the performance of your systems components in real-time and keeps them in perfect tune. With its Dual Core Processor and the addition of an extra CAN-bus port you can now support even bigger systems; closely follow managed (lithium) batteries while the second port can support up to 25 simultaneously connected VE.Can solar chargers. The new NMEA 2000-out support has the GX easily integrated into any boats network. Four tank- and four temperature ports as well as 3 VE.Direct ports, 3 USB ports, 4 digital inputs and 2 relays allow you to expand control to a new level. Maximising systems performance was never this easy.
Expand your view

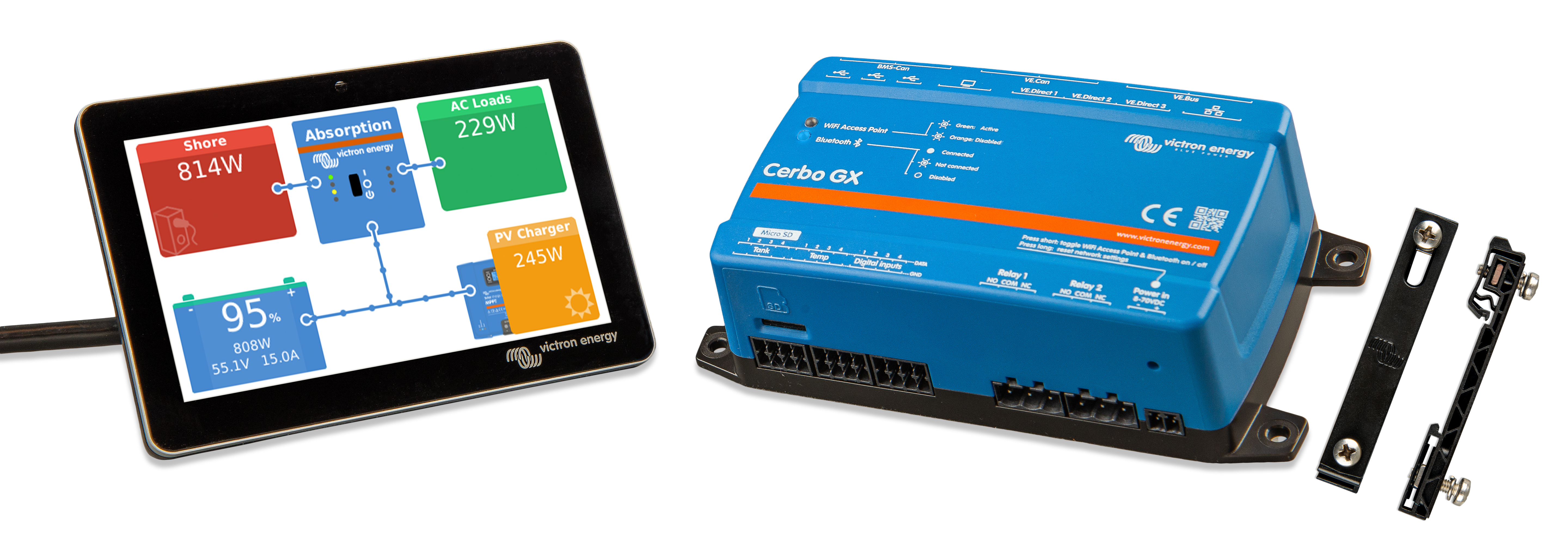

The new (optional) GX Touch 50 display allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super slim 5 inch waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.
Simple mounting and configuration
The Cerbo GX is now optimised to more than meet the standards of installer professionals. The device is easily mountable on a DIN-Rail (with DIN35 adapter small, not included) and its separate touchscreen can now be bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. Its new Bluetooth feature enables a quick connection and configuration via our VictronConnect app.
Outsmart any power challengeThe Cerbo GX serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as Marine, or Backup & Off-grid, it will auto-start/stop your generator, or delays ignition until the end of ‘quiet’ periods. For Energy Storage Systems it keeps backup batteries at 100%, kicks-in during power-cuts and diverts excess (solar) power to self-consumption, saving you money. For RV and Emergency vehicles it keeps vital systems function flawlessly.
Please note CERBO GX Touch is not included with this product and will need to purchased separaterly
| Digital Inputs |
4 |
|---|---|
| Wifi |
Built-in |
| Battery Backupped Clock |
Yes |
| 5V Output |
No |
| Operating Temperature |
-20 to +50°C |
| Supply voltage |
8-70VDC |
| VE.Direct Ports (always isolated) |
3 |
| VE.Bus (always isolated) |
2 paralleled RJ45 sockets |
| VE.Can |
Yes – non isolated |
| Remote Console |
Yes |
| USB |
2 USB Host ports & 1 power only port |
| Ethernet |
10/100 RJ45 socket – isolated except shield |
| BMS-Can port |
Yes |
| Built-in RS485 |
No |
| Temperature sense inputs |
4 |
| Max. VE.Direct devices |
tbd – 15 orso |
