Victron Energy DMC000200010R

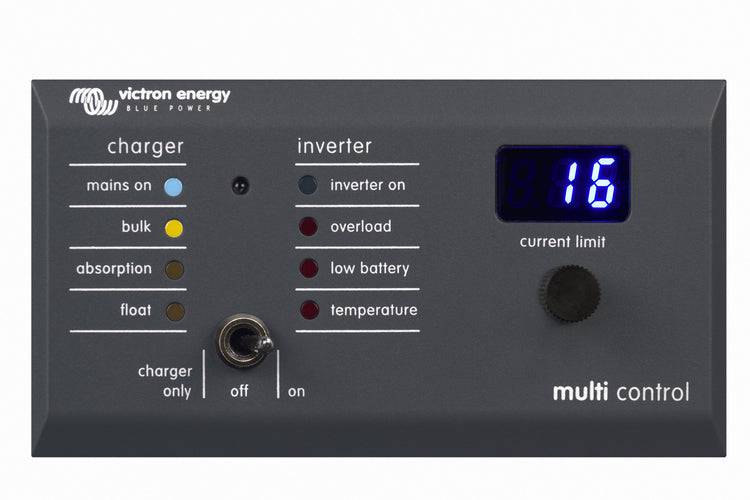

The Digital Multi Control Panel GX is the same as the previous version, but with a new design. An extra advantage of this panel is the easy mounting: the included mounting frame allows the user to mount the panel from either front or back side. Due to the mounting frame, the mounting holes will no longer be visible. The body of the GX panel is made of plastic, which makes the panel lighter and adds a modern look to the panel.

VE.Bus System - 1 AC Source

By connecting the DMC (Digital Multi Control) to the VE.Bus system the DMC will automatically configure itself to the syetem, meaning nothing needs to be changed in order for the Digital Multi Control to operate unless you would like to limit the maximum operation current, if you need this to be changed then the "Upper shore limit for AC input 1" will need to be changed.

VE.Bus System - 2 AC Sources

There are a number of different ways to run the Digital Multi Control through a VE.Bus system with 2 AC Sources. This can be done with Multi's if the system is configured with the "VE.Bus System Configurator" tool. You can also run along the range of Quattros by simply connecting the DMC to the VE.Bus system and the Digital Multi Control will configure itself automatically.
