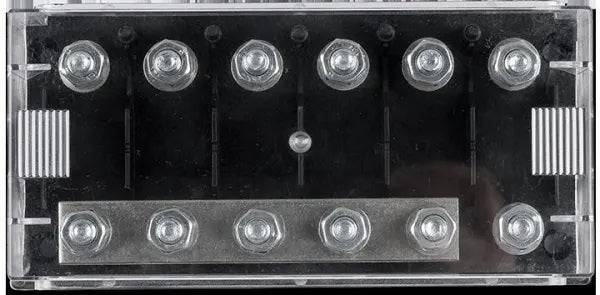

Victron Energy Fuse Holder 6-Way For MEGA-Fuse – CIP050060000

Product Details

6 way mega fuse holder

One single mega fuse circuit + 5 x mega fuse circuits via optional removable bus bar

Fuse holder 6-way for MEGA fuse

Max. current 250 A

Max. Voltage 70 VDC

Terminal diameter 5/16 inch / 8 mm

Terminal height 0.67 inch / 14 mm

Terminal material Galvanised steel

Hex nut material Galvanised steel

Recommended torque 60 lbf·inch / 7 N·m

Busbar strip material Tin-plated copper (3 x 18 mm)

Base material ABS, black, UL 94 V-0

Cover material Clear Polycarbonate, UL 94 HB

Weight 1 lb / 0,45 kg

Dimensions (hxwxd)

(with cover)

2.0 x 7.2 x 3.5 inch

50.9 x 181.5 x 88 mm
