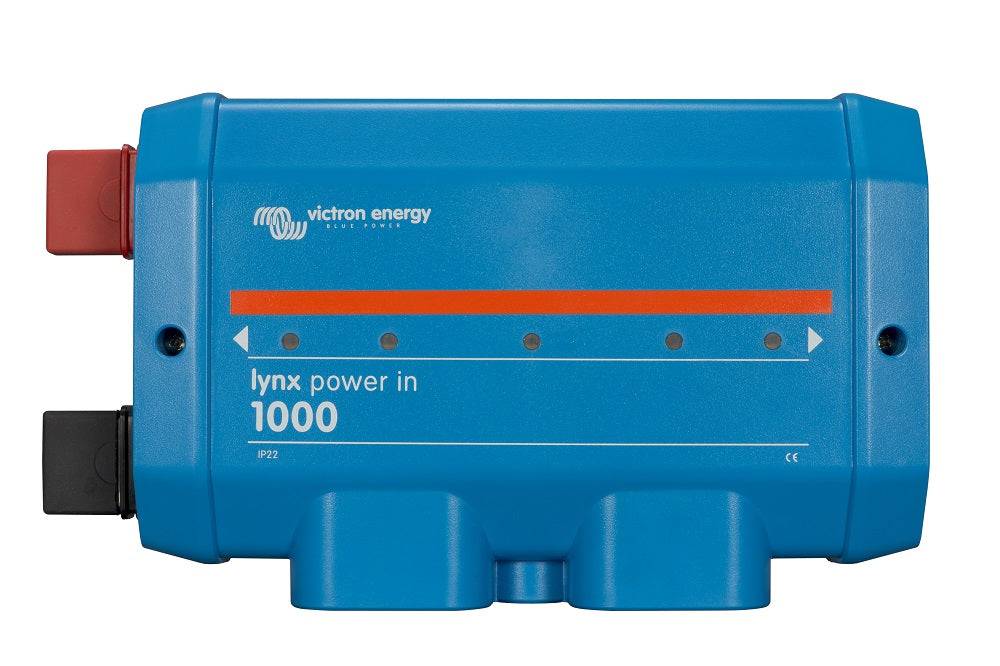

Victron Energy Lynx Power In – LYN020102000

Product Details

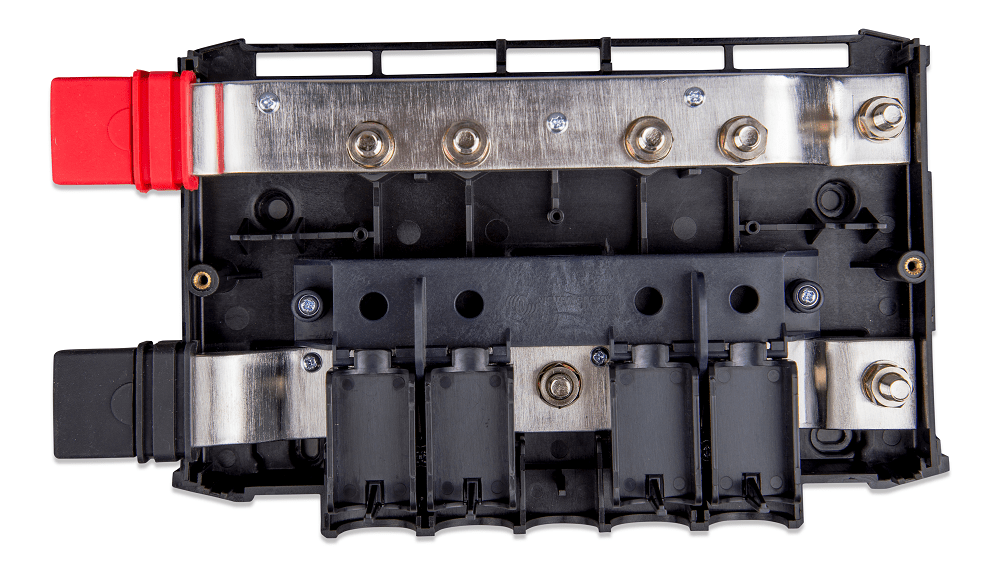

The Lynx Power In contains a positive and negative busbar with 4 connections for batteries, loads or chargers and a ground connection.

The Lynx Power In is used by itself as a high load bus bar

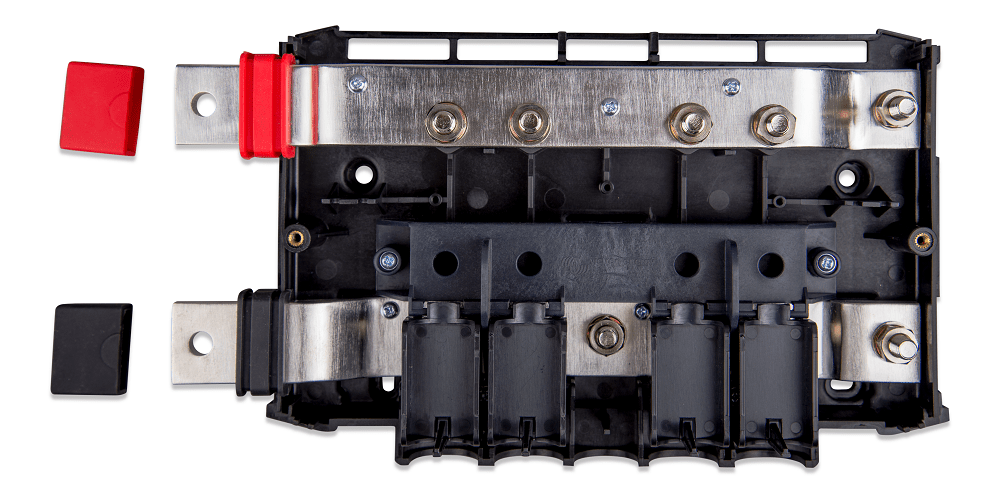

Multiple Lynx Power In modules can be connected to each other thus creating a longer busbar with more connections for batteries and/or loads.

The Lynx Power in does not contain fuses.

All connected load, chargers or batteries need to be fused externally

This can be used to connect up to It is part of the Lynx Distribution system

Voltage range 9 - 60Vdc

Current rating 1000A

Enclosure material ABS

Enclosure dimensions (hxwxd) 290 x 170 x 80mm

Unit weight 2.1 kg

Busbar material Tinned copper

Busbar dimensions (hxw) 8 x 30mm

Operating temperature range -40°C to +60°

Storage temperature range -40°C to +60°

Humidity Max. 95% (non-condensing)

Protection class IP22

Warranty 5 Years
