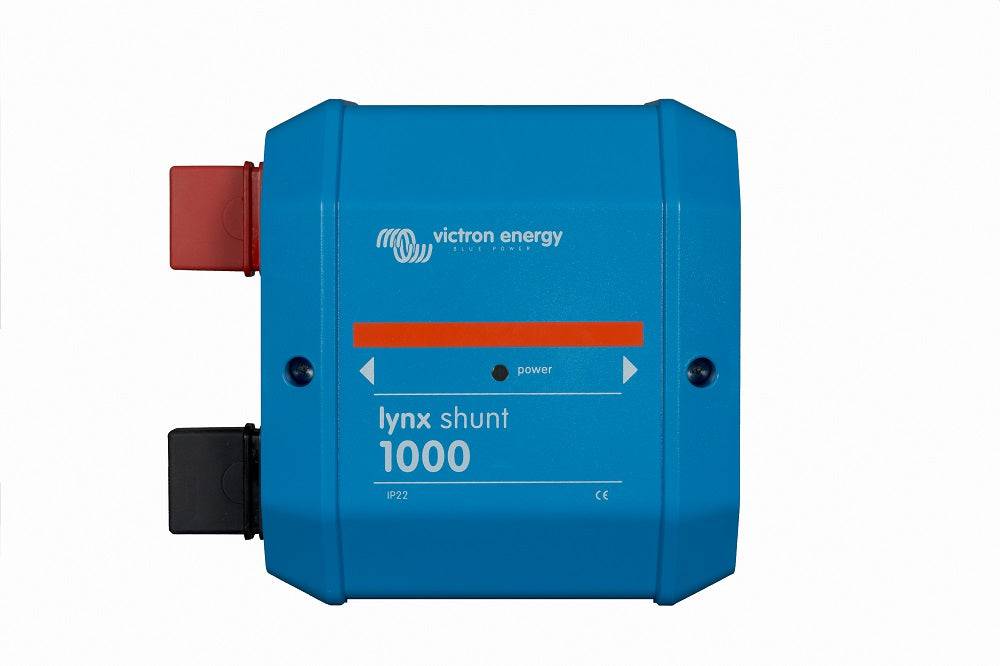

Victron Energy Lynx Shunt VE.Can - LYN040102100

Sale price£345.00 GBP

Price Includes VAT. Shipping calculated at checkout.

In stock
Quantity:

Product Details

The Lynx Shunt VE.Can contains a positive and negative busbar, a battery monitor and

a fuse holder for the main system fuse. It is part of the Lynx Distribution system.

The Lynx Distributor has a power LED.

The Lynx Shunt VE.Can can communicate via VE.Can with an GX device.

The Lynx Shunt VE.Can ships with two RJ45 VE.Can terminators, these are used when

connecting to a GX device.

The Lynx Shunt VE.Can is designed to hold a CNN fuse. The fuse needs to be purchased

separately.


Power

Supply voltage range 9 - 70 Vdc

Supported system voltages 12, 24 or 48V

Reverse polarity protection No

Current rating 1000Adc continuous

Power consumption

60mA @ 12V

33mA @ 24V

20mA @ 48V

Potential free alarm contact 3A, 30Vdc, 250Vac


Connections

Busbar M8

Fuse M8

VE.Can RJ45 and RJ45 terminator

Power supply connection to Lynx Distributor RJ10 (a RJ10 cable ships with each Lynx Distributor)

Temperature sensor Screw terminal

Relay Screw terminal

Warranty 5 Years


Physical

Enclosure material ABS

Enclosure dimensions (hxwxd) 190 x 180 x 80mm

Unit weight 1.4 kg

Busbar material Tinned copper

Busbar dimensions (hxw) 8 x 30mm


Environmental

Operating temperature range -40°C to +60°

Storage temperature range -40°C to +60°

Humidity Max. 95% (non-condensing)

Protection class IP22
