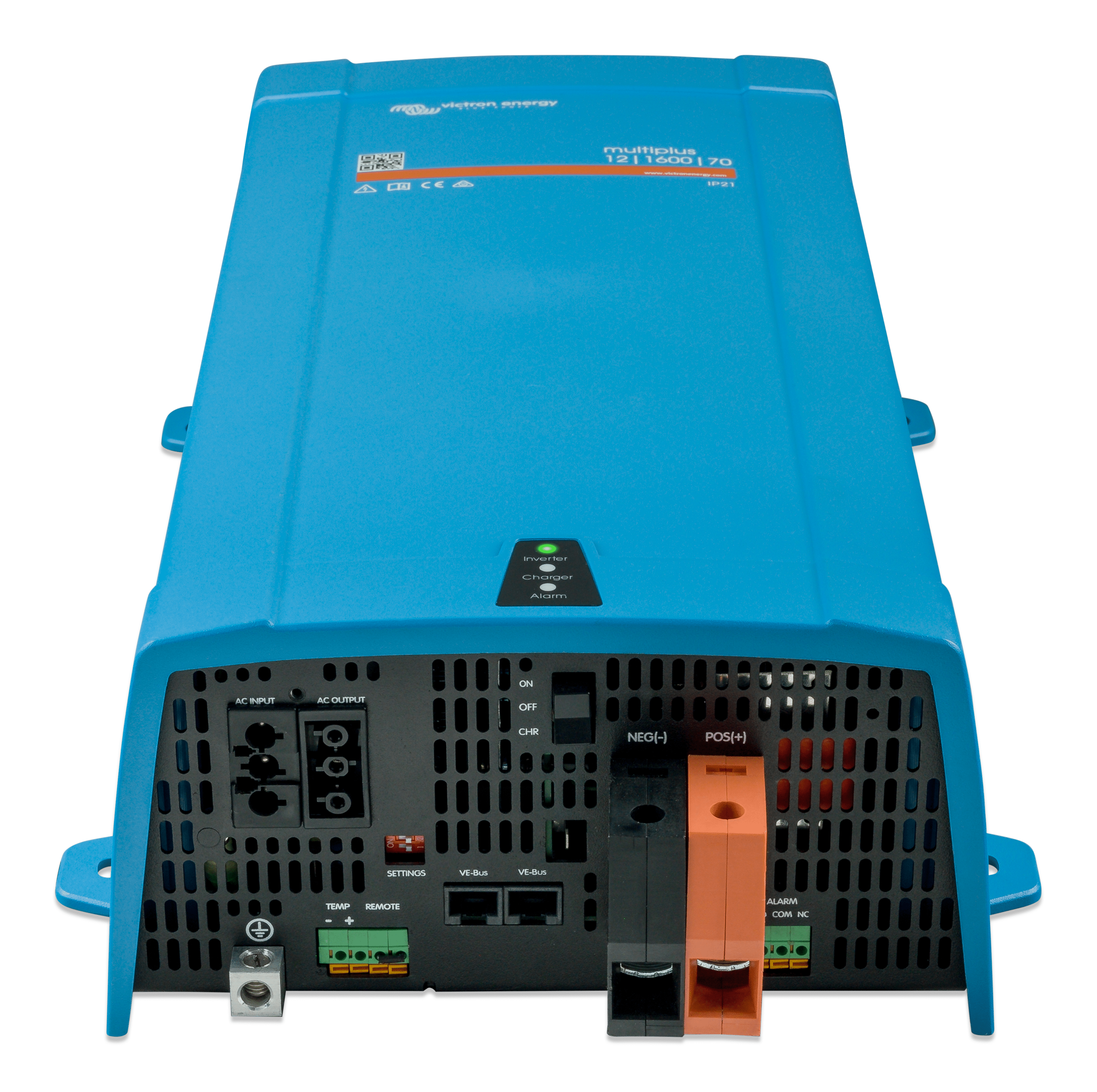

Victron Energy MultiPlus Inverter/Charger 12/1600/70 PMP122160000

Victron Energy PMP122600000 12v 1600 watt inverter with 70amp mains charger. The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and ahigh-speed AC transfer switch in a single compact enclosure.

Features

Uninterrupted AC power (UPS function)

• In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. Thishappens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control

• Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone,tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geo fence for hire vehicles and more...

Proven reliability

• The full bridge plus toroidal transformer topology has proven itsreliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

Power Control- Dealing with limited generator, shore side or grid power

• With the Multi Control Panel a maximum generator or shore current can beset. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator orshore supply from being overloaded.

Power Assist- Boosting the capacity of shore or generator power

• Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator poweris immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.

Highstart-up power

• Needed to start high inrush loads such as power converters for LED lamps,halogen lamps or electric tools.

Search Mode

• When Search Mode is ‘on’, the power consumption of the inverter inno-load operation is decreased by approx. 70%. In this mode theMulti, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for ashort period. If the output current exceeds a set level, theinverter will continue to operate. If not, the inverter will shutdown again.

Programmable relay

• By default, the programmable relay is set as an alarm relay, i.e. there lay will de-energise in the event of an alarm or a pre-alarm(inverter almost too hot, ripple on the input almost too high,battery voltage almost too low).

Specifications + Parts List

Power Control - Yes

Power Assist - Yes

Transfer switch - 16A

INVERTER Voltage - 12Volts

Cont.output power at 25°C - 1600VA

Peakpower - 2800W

Maximum efficiency - 93%

Zero load power - 10W

Zero load power in Search mode - 3W

CHARGER

Charge current house battery - 70A

Charge current starter battery - 1A

Battery temperature sensor - Yes

GENERAL

Programmable relay - Yes

VE.Buscommunication port - For parallel and three phase operation, remote monitoring and system integration

Remoteon-off - Yes

Common Characteristics

Operating temp. range: -40 to +65°C (fan assisted cooling)

Humidity(non-condensing): max 95%

Protection category - IP21

Height - 470mm

Width - 265mm

Depth - 120mm

Weight - 10.2kg

Warranty - 5 Years
