Victron Energy Smart Solar Controller MPPT 75/10 SCC075010060R
Choose options
Product Details

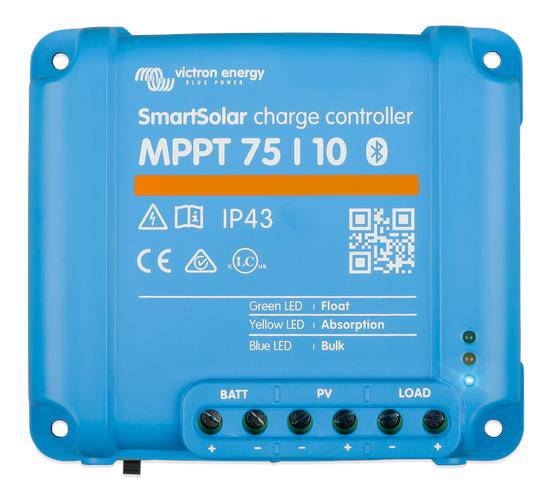

Victron Energy Smart Solar Controller MPPT 75/10 SCC075010060R
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.Load output
The intelligent Load output function prevents damage caused by running batteries ‘flat’. You can configure the voltage at which SmartSolar disconnects a load – thereby preventing excessive drain on your batteries. And here’s the clever bit: SmartSolar will attempt a 100% recharge every day. If it can’t – during periods of poor weather – it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.

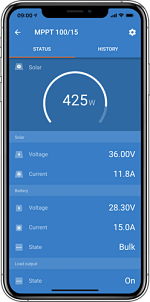

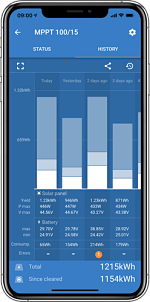

Bluetooth Smart built-in
The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
VE.Direct
For a wired data connection to a Color Control GX, other GX products, PC or other devices
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%.
The full output current up to 40°C (104°F).
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high.
PV short circuit and PV reverse polarity protection.
PV reverse current protection.
Internal temperature sensor
Compensates absorption and float charge voltage for temperature.
| Brand | Victron Energy |
|---|---|
| Manufacturer Part Number | SCC075010060R |
| Battery Voltage | 12/24 Auto Select |
| Rated Charge Current | 10A |
| Nominal PV Power, 12V | 145W |
| Nominal PV Power, 24V | 290W |
| Max. PV Short Circuit Current | 13A |
| Maximum PV Open Circuit Voltage | 75V |
| Efficiency | 98% |
| Charge Algorithm | Multi-stage adaptive |
| Data Communication Port | VE.Direct |
| IP Rating | IP43 (electronic components), IP22 (connection area) |
| Dimensions | H100 x W113 x D40mm |
| Weight (kg) | 0.5 |
| Warranty | 5 Years |
