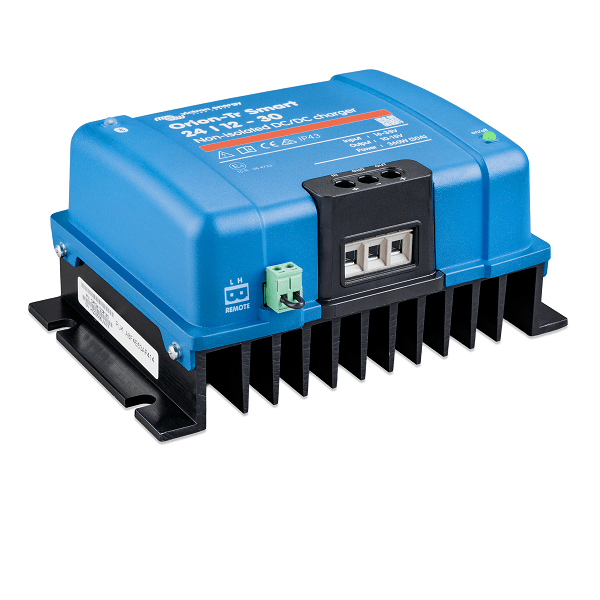

Victron Orion Tr Smart 24v-12v 30A Non Isolated DC-DC B2B Split Charge Kit

Product Details

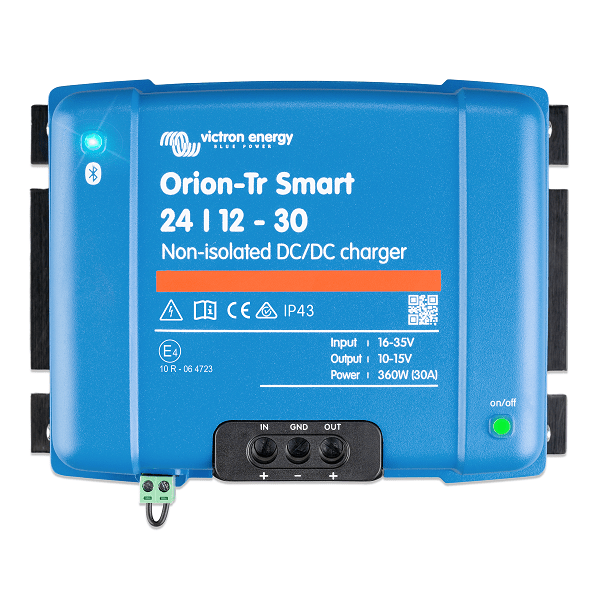

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in dual battery systems in vehicles or on boats where the (smart)alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

The Orion Tr-Smart charger can be used in 12V or 24V systems and issuitable for both lead acid and lithium batteries. Models areavailable up to 400W and unlimited multiple units can be connected inparallel to increase output power.

Suitable for high temperatures up to 55°C with a full rated output up to 40°C

Parts List

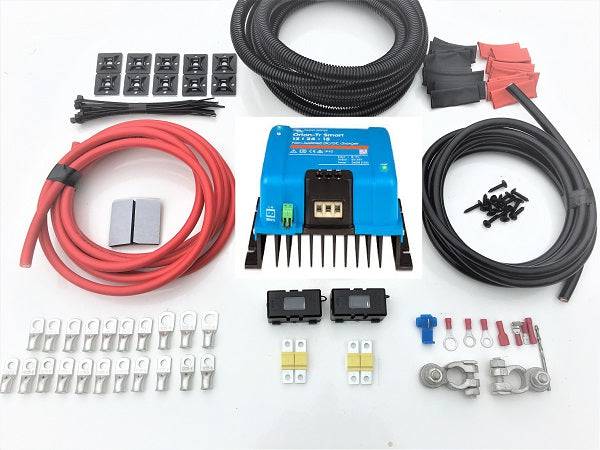

You will be supplied with

• 1x  Victron Orion 24v-12v 30amp Non Isolated Charger

• 1-8mtrs16mm² 110amp Red Cable

• 1-8mtrs16mm² 110amp Black Cable

• 1-8mtrs13mm Split Conduit

• 2x Midi Fuse Holders + recommended midi fuses including spares

• 1x Pair 8mm Post Type Battery Terminals

• CrimpTeminals

• Heat Shrink

• CableTies

• Screws+ Drill Bit

• Wiring Diagram

Features

Bluetooth Smart enabled

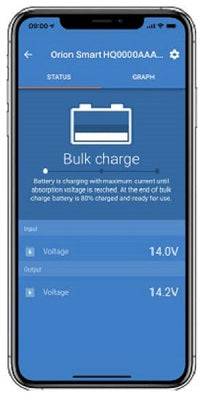

Any Bluetooth enabled smart phone, tablet or other device can be used tomonitor, to change settings and to update the charger when new software features become available.

Fully programmable

-Battery charge algorithm (configurable) or fixed output.

-Smart alternator compatibility: engine running detection mechanism.

Adaptive 3-stage charge algorithm: bulk – absorption – float

-For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery iscompletely recharged.

-For lithium batteries absorption time is fixed, default 2 hours.

-Alternatively, a fixed output voltage can be chosen.

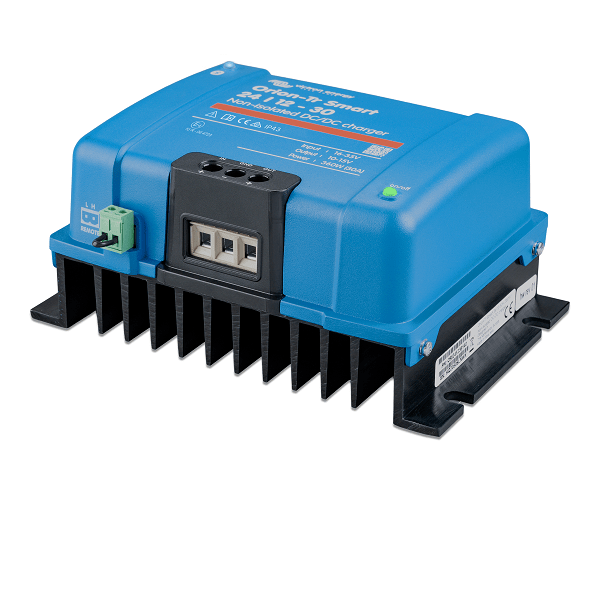

Remote on-off

A remote on/off switch or relay contact can be connected to a two-poleconnector. Alternatively, the H terminal (right) of the two-poleconnector can be switched to battery plus, or the L terminal (left)of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All models are short circuit proof and can be paralleled to increase output current

An unlimited number of units can be connected in parallel.

High temperature protected

The output current will reduce at high ambient temperature.

IP43 protection

When installed with the screw terminals oriented downwards.

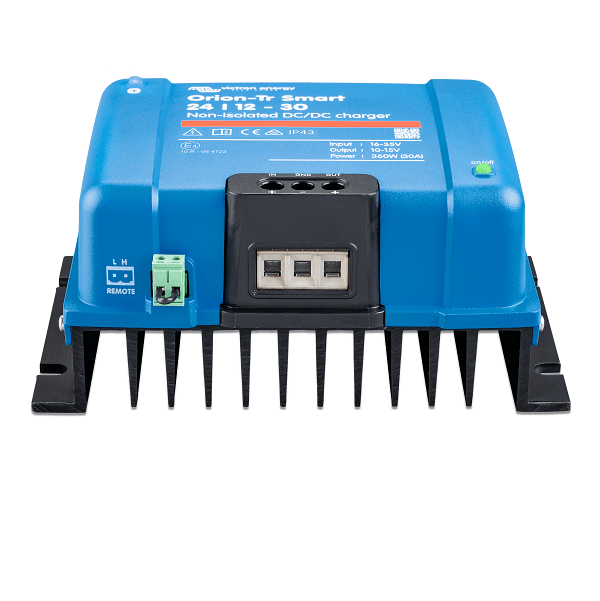

Screw terminals

Nospecial tools needed for installation.

Input fuse (not replaceable)

Specifications

Input voltage range 20-35v

Under voltage shut down 14v

Under voltage restart - 15v

Nominal output voltage - 12,2V

Output voltage adjust range - 10-15V

Output voltage tolerance -+/-0,2V

Output noise - 2mVrms

Cont.output current at nominal output voltage and 40°C - 30A

Maximum output current (10 s) at nominal output voltage minus 20% -40A

Short circuit output current - 60A

Cont.output power at 25°C - 430W

Cont.output power at 40°C -360W

Efficiency -87%

Offload current -<80mA

Galvanicisolation -200Vdc between input, output and case

Operatingtemperature range --20to +55°C (derate 3% per °C above 40°C)

Humidity -Max.95% non-condensing

DC connection -Screw terminals

Maximum cable cross-section -16mm² (AWG6)

Height -130mm

Width - 186mm

Depth -80mm

Weight - 1.8Kg

Warranty - 5 Years

Part Number - ORI241236140
