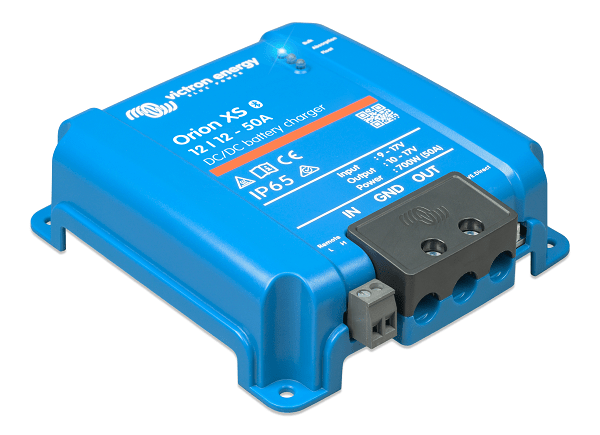

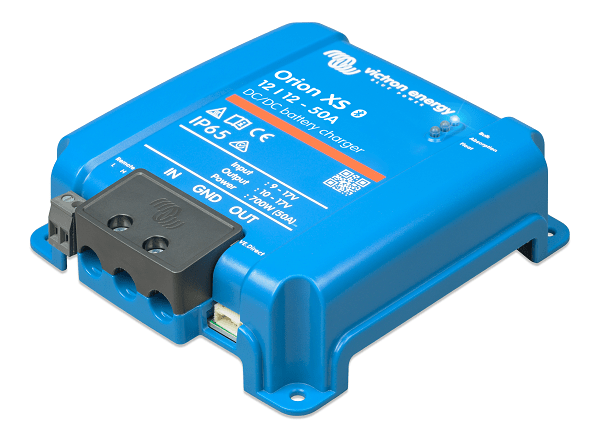

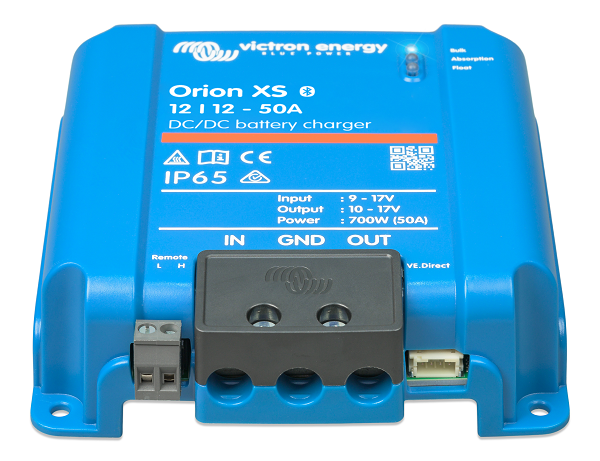

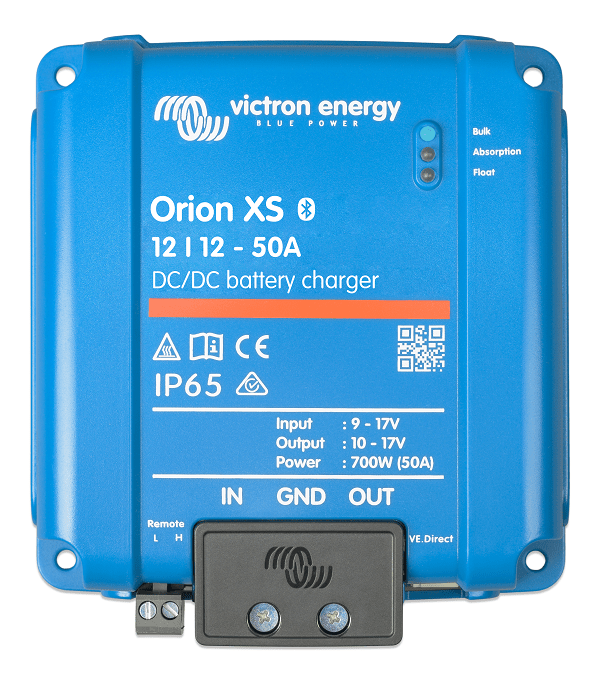

Victron Orion XS 12v 50A Non Isolated DC-DC B2B Split Charge Kit

Engineered from the ground up, the Orion XS redefines adaptive DC-DC battery charging. For use in dual battery systems charged with an (intelligent) alternator. This device not only ensures top-tier performance but also guarantees the safety of your system.

The Orion XS serves as a DC-DC battery charger or as a power supply, offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.

An integrated mechanism detects whether the engine is running (engine shutdown detection), which only activates the charger when the alternator supplies power. This ensures that the charger only draws power when the alternator is supplying power, i.e. when the engine is running.

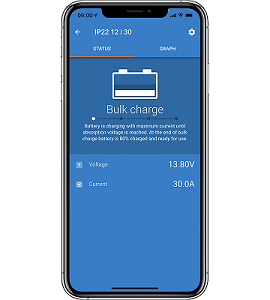

Built-in Bluetooth Smart: The wireless solution to change settings, monitor activities and update the Orion XS software using Apple and Android smartphones, tablets or other devices. Various parameters cabe adjusted with the VictronConnect App.

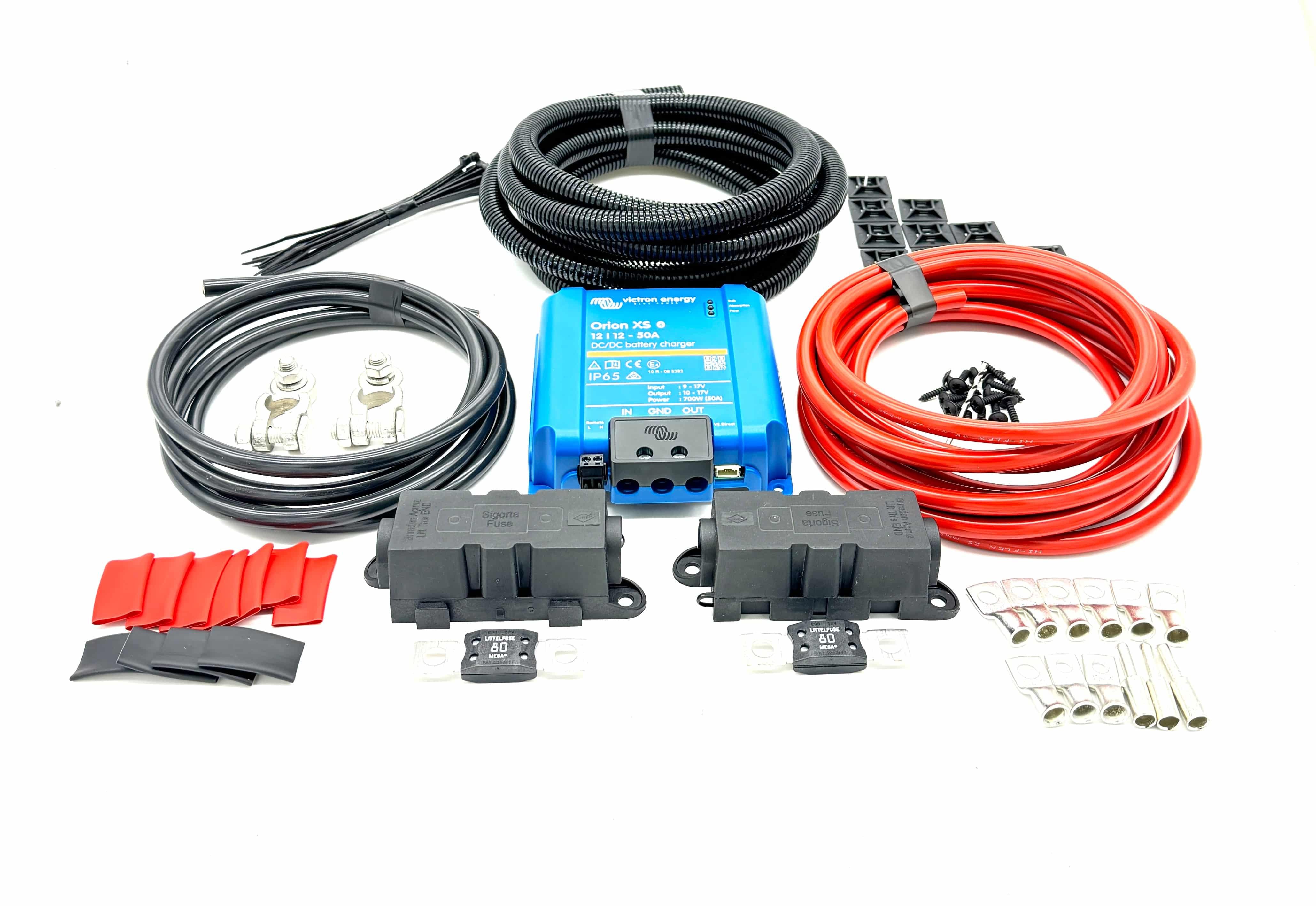

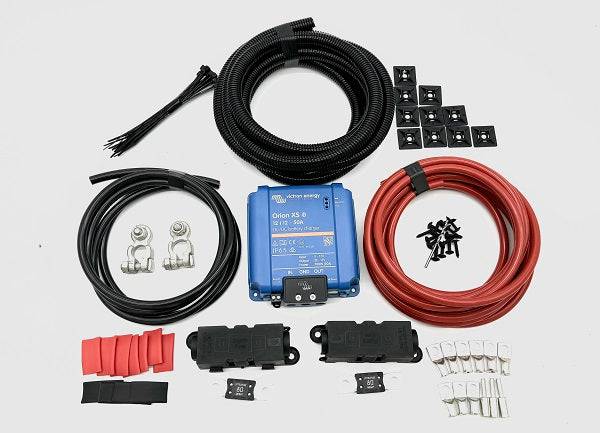

You will be supplied with the following

• 1x  Victron Orion XS 12v 50amp Non isolated Charger
• 1-8mtrs 25mm² 170amp Red Cable
• 2mtrs 25mm² 170amp Black Cable
• 1-8mtrs 16mm Split Conduit
• 2x Mega Fuse Holders +80 amp fuses
• 1x Pair 8mm Post Type Battery Terminals
• CrimpTeminals
• Heat Shrink
• Cable Ties
• Screws+ Drill Bit
• Wiring Diagram

Input voltage range 9-17 V

Output voltage adjust range 10-17 V

Output voltage tolerance +/- 0.25% (max)

Output voltage noise 10 mV rms

Input and output current setting range 1 – 50 A

Maximum constant short-circuit current 50 A

Continuous output power up to 40 °C 1) 700 W

Maximum efficiency 98.5 %

No-load current consumption < 100 mA

Standby current consumption < 1.5 mA

Can be used as power supply Yes, output voltage can be set with VictronConnect App

Communication

VictronConnect App / Bluetooth Smart Yes

VE.Smart Networking Yes 2)

VE.Direct Yes (including DVCC) 3)

Other

Operating temperature range -20 to +60 °C (derating 1.5 % per °C above 40 °C)

Humidity Max. 95 % non-condensing

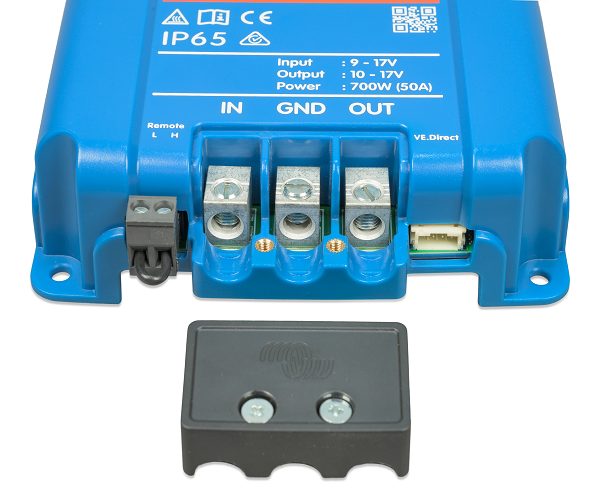

DC connection Screw terminals

Maximum cable cross-section 4AWG (21.2mm2)

Weight 0.330 kg (0.73 lb)

Dimensions hxwxd 137.3 x 123.1 x 40 mm (5.4 x 4.85 x 1.6 inch)

Protection category IP65

Part Number ORI121217040
