Victron Power Distribution kit with Lynx Distributor (35mm Cable)
Choose options
Product Details

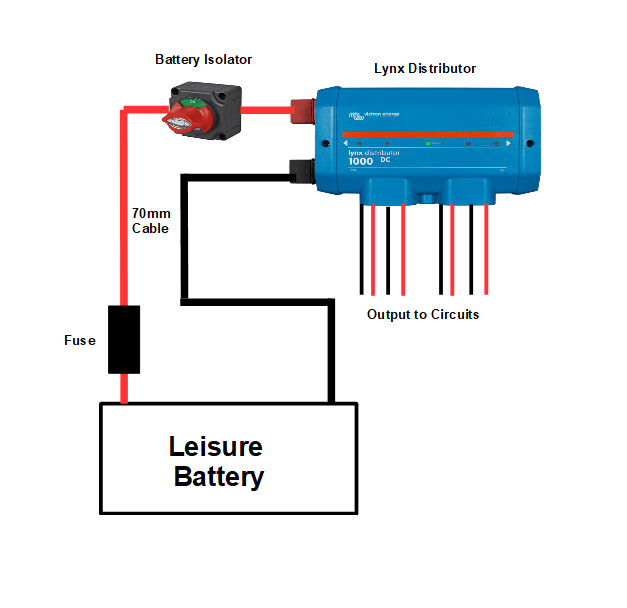

Leisure battery High Power distribution kit is a simple to install system for up to 4 high load circuits from a your leisure battery using a Victon Energy Lynx Distributor
It can be used for simple connections for inverter / inverter charger, DC-DC charging, Solar Charging, Mains 240v charging without having multiple connections to the leisure battery
The Lynx Distributor gives you the following outputs
4 x positive connections via a mega fuse ( Not Supplied)
4 x negative connections plus one common negative connection for your chassis
Specifications + Parts List

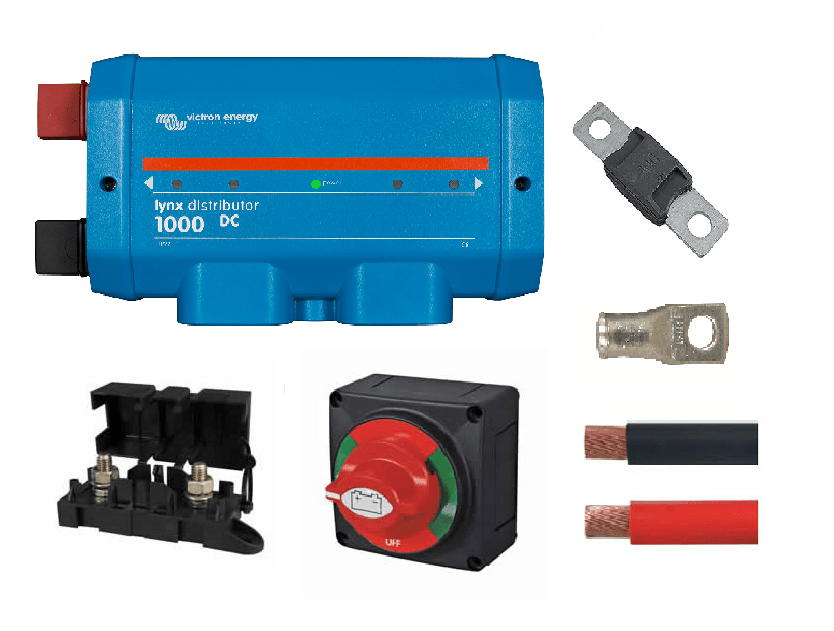

Supplied with the following items

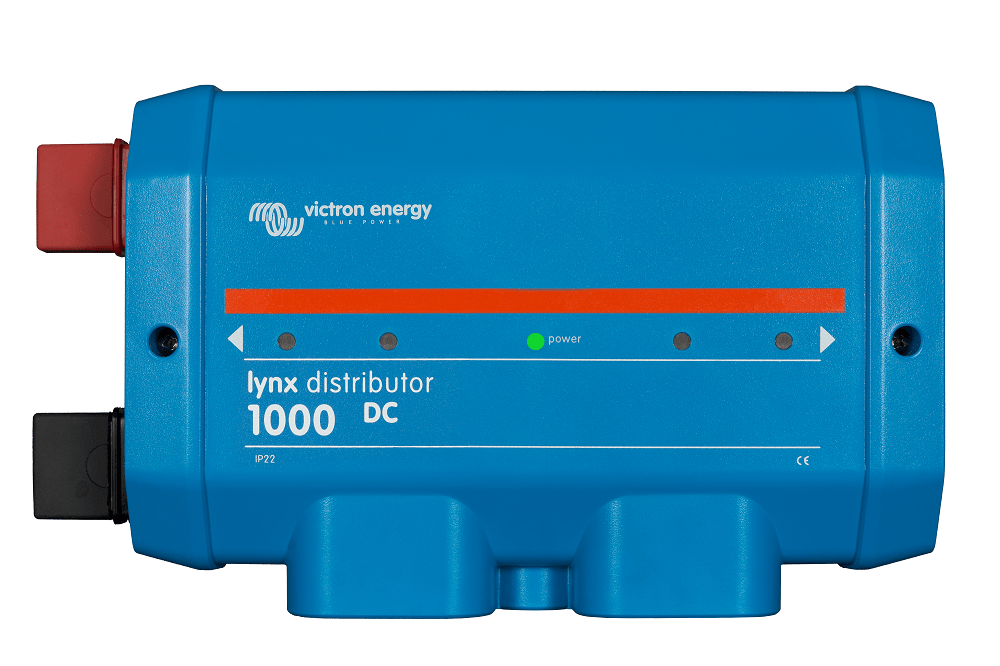

1 x Victron Enger Lynx Distributor
1 x 200a mega fuse
1 x 300a Battery isolator
2m 35mm² 240amp red battery cable
2m 35mm² 240amp black battery cable
10 x 35-8 copper tube ring terminal
6 x 35-10 copper tube ring terminal
10 x red + 10 x black heat shrink
