Victron Power Distribution kit with Lynx Distributor (50mm Cable)

£325.00 GBP

Price Includes VAT.

Leisure battery High Power distribution kit is a simple to install system for up to 4 high load circuits from a your leisure battery using a Victon Energy Lynx Distributor

In stock
Quantity:

Product Details

Leisure battery High Power distribution kit is a simple to install system for up to 4 high load circuits from a your leisure battery using a Victon Energy Lynx Distributor

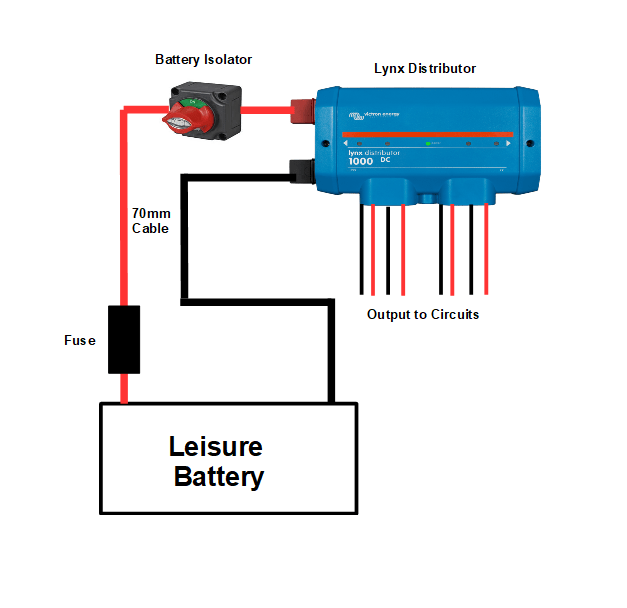

It can be used for simple connections for inverter / inverter charger, DC-DC charging, Solar Charging, Mains 240v charging without having multiple connections to the leisure battery

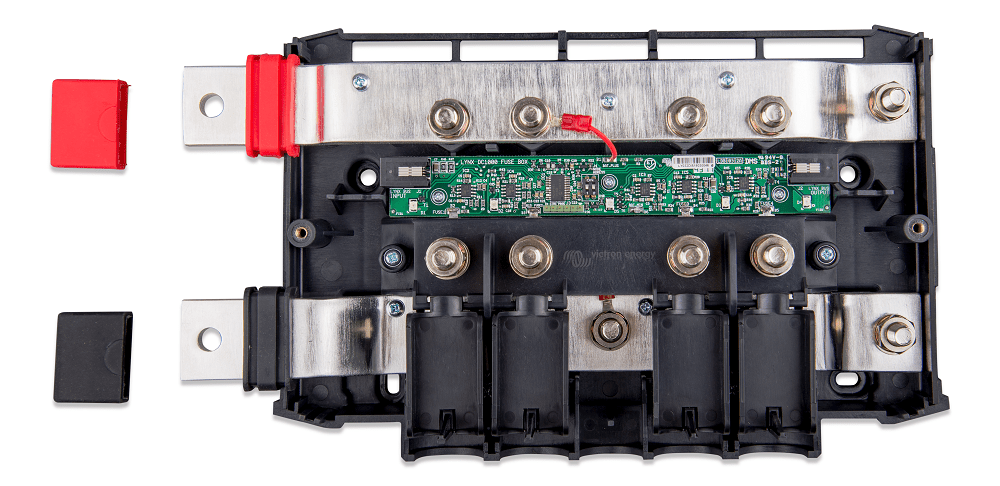

The Lynx Distributor gives you the following outputs

4 x positive connections via a mega fuse ( Not Supplied)

4 x negative connections plus one common negative connection for your chassis



Specifications + Parts List

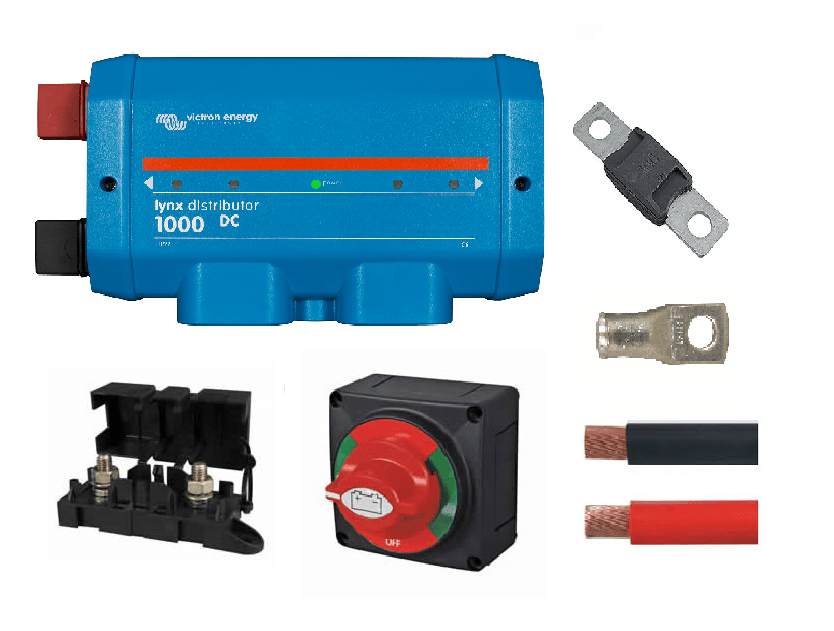

Supplied with the following items

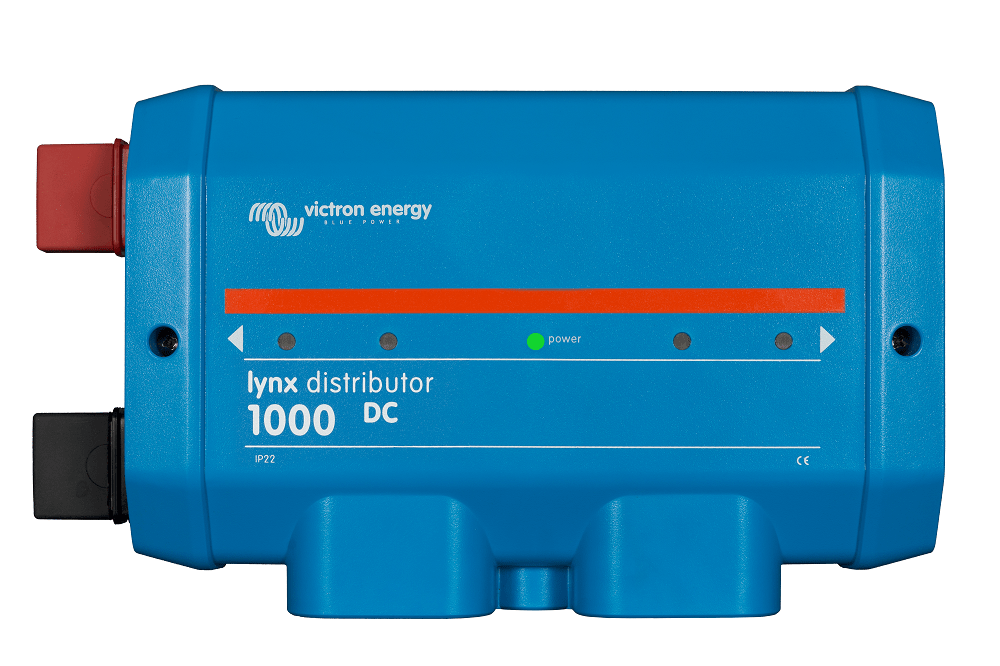

1 x Victron Enger Lynx Distributor

1 x 300a mega fuse

1 x 300a Battery isolator

2m 50mm² 345amp red battery cable

2m 50mm² 345amp black battery cable

10 x 50-8 copper tube ring terminal

 6 x 50-10 copper tube ring terminal

10 x red + 10 x black heat shrink
